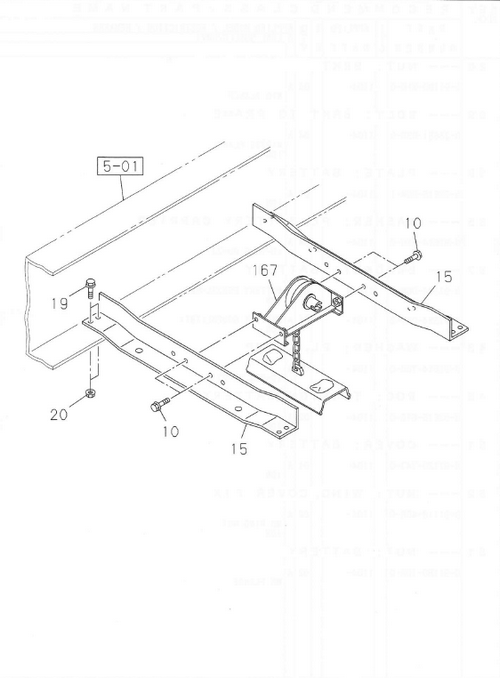

5-30 | SPARE TIRE CARRIER AND COVER
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 015 | I1-53631 395-A | MEMBER; CROSS,SPARE TIRE | 2 | 1104- | FVZ | |||
| 019 | I0-28051 040-0 | BOLT; C/MBR | 8 | 1104- | FVZ | M10X40 FLANGE | ||
| 020 | I7-05110 010-A | NUT; C/MBR | 8 | 1104- | FVZ | M10 FLANGE | ||
| 167 | I8-97948 022-0 | HANGER; TIRE | 1 | 1312-1403 | GVZ | |||
| 010 | I0-28651 230-0 | BOLT; TIRE HANGER | 4 | 1104- | GVZ | M12X30 FLANGE | ||
| 167 | I1-53630 208-4 | HANGER; TIRE | 1 | 1104- | FVZ |
