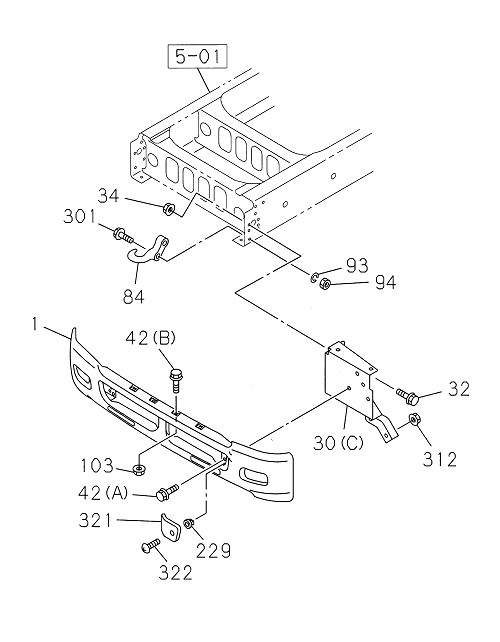

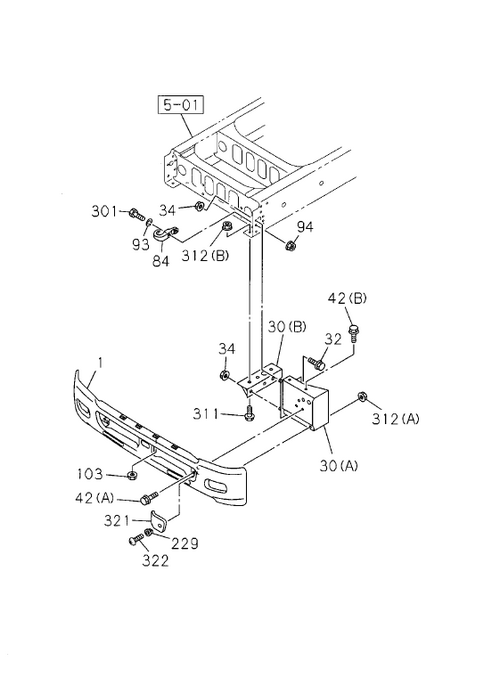

6-01 | FRONT BUMPER
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 042 | I8-94324 205-0 | BOLT; BUMPER | 6 | 1104- | ALL | (A) M10X30 | ||
| 042 | I8-98098 459-0 | BOLT; BUMPER | 4 | 1104- | ALL | (B) M6X16 FLANGE | ||
| 001 | I8-97470 840-0 | BUMPER ASM; FRT | 1 | 1301- | ALL | |||
| 103 | I0-91180 106-0 | NUT; BUMPER STEP | 4 | 1104- | ALL | M6 FLANGE | ||
| 321 | I8-97616 290-1 | COVER; BUMPER FRT SIDE | 1 | 1104- | ALL | |||
| 030 | I8-98205 744-A | BRACKET; FRT BUMPER | 1 | 1312-1403 | ALL | |||
| 030 | I8-98177 902-A | BRACKET; FRT BUMPER | 1 | 1104- | FVZ | (A) | ||
| 093 | I0-91510 816-0 | WASHER; LK,HOOK | 2 | 1104- | ALL | ID=16.2 | ||
| 034 | I7-05110 010-A | NUT; BRKT,BUMPER | 8 | 1312-1403 | ALL | M10 FLANGE | ||
| 311 | I0-28851 445-0 | BOLT; BRKT | 6 | 1104- | FVZ | M14X45 FLANGE | ||
| 301 | I0-10961 670-0 | BOLT; HOOK TO FRAME | 2 | 1205- | ALL | M16X70 | ||
| 229 | I5-09983 007-0 | GROMMET | 2 | 1104- | ALL | D=7X7 L=7.5 | ||
| 094 | I0-91110 516-0 | NUT; HOOK | 2 | 1104- | ALL | M16 | ||
| 321 | I8-97616 291-1 | COVER; BUMPER FRT SIDE | 1 | 1104- | ALL | |||
| 322 | I0-72180 516-0 | SCREW; COVER FIX | 2 | 1104- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 030 | I8-98179 463-A | BRACKET; FRT BUMPER | 1 | 1104- | FVZ | (B) | ||
| 030 | I8-98177 903-A | BRACKET; FRT BUMPER | 1 | 1104- | FVZ | (A) | ||
| 312 | I7-05110 010-A | NUT; BRKT | 2 | 1104- | ALL | M10 FLANGE | ||
| 030 | I8-98179 462-A | BRACKET; FRT BUMPER | 1 | 1104- | FVZ | (B) | ||
| 032 | I0-28651 035-0 | BOLT; BRKT,BUMPER | 8 | 1312-1403 | ALL | M10X35 FLANGE | ||
| 084 | I1-57181 027-A | HOOK | 1 | 1104- | ALL | |||
| 030 | I8-98205 745-A | BRACKET; FRT BUMPER | 1 | 1312-1403 | ALL |
