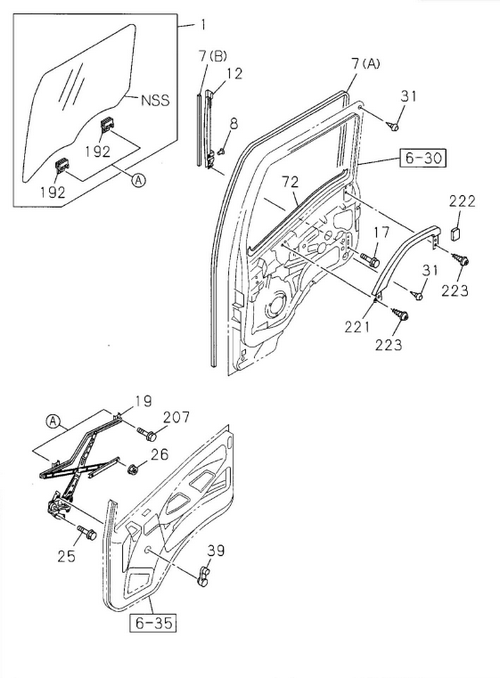

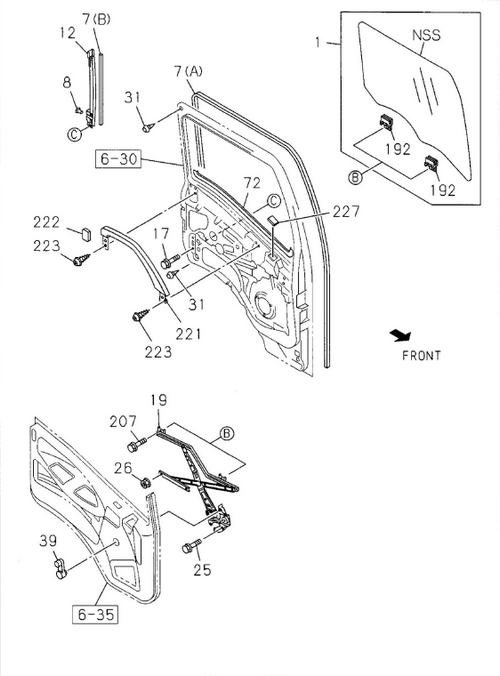

6-31 | FRONT DOOR GLASS AND REGULATOR
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 221 | I8-97405 317-2 | BAR ASM; DOOR GLASS GUARD | 1 | 1104- | ALL | |||
| 007 | I8-98260 308-0 | GLASS RUN; FRT DOOR | 1 | 1412- | ALL | (A) | ||
| 025 | I0-28050 610-0 | BOLT; WINDOW REG | 8 | 1104- | ALL | M6X10 FLANGE | ||
| 007 | I8-98260 310-0 | GLASS RUN; FRT DOOR | 2 | 1412- | ALL | (B) | ||
| 072 | I8-98029 193-1 | SEAL; WAIST,FRT DOOR | 1 | 1104- | ALL | OUTER | ||
| 221 | I8-97925 104-0 | BAR ASM; DOOR GLASS GUARD | 1 | 1312-1403 | ALL | |||
| 222 | I8-97405 318-0 | CAP; GUARD BAR | 1 | 1104- | ALL | |||
| 012 | I8-98260 319-0 | CHANNEL; GLASS RUN,FRT | 1 | 1412- | ALL | |||
| 019 | I8-98029 233-3 | REGULATOR; WINDOW,FRT DOOR | 1 | 1104- | ALL | |||
| 192 | I8-98211 762-0 | HOLDER; DOOR GLASS | 4 | 1205- | ALL | |||
| 039 | I8-97405 313-3 | HANDLE; WINDOW REG,FRT DOOR | 2 | 1104- | ALL | |||
| 207 | I0-28050 610-0 | SCREW; DOOR GLASS | 4 | 1104- | ALL | M6X10 FLANGE | ||
| 008 | I8-98048 796-0 | CLIP; GLASS GUIDE | 2 | 1104- | ALL | |||
| 221 | I8-97405 316-2 | BAR ASM; DOOR GLASS GUARD | 1 | 1104- | ALL | |||
| 221 | I8-97925 103-0 | BAR ASM; DOOR GLASS GUARD | 1 | 1312-1403 | ALL | |||
| 007 | I8-98029 195-3 | GLASS RUN; FRT DOOR | 1 | 1104-1411 | ALL | (A) | ||
| 001 | I8-97696 475-A | GLASS; FRT DOOR | 1 | 1205- | ALL | |||
| 222 | I8-97405 319-0 | CAP; GUARD BAR | 1 | 1104- | ALL | |||
| 019 | I8-98029 234-3 | REGULATOR; WINDOW,FRT DOOR | 1 | 1104- | ALL | |||
| 007 | I8-98029 196-3 | GLASS RUN; FRT DOOR | 1 | 1104-1411 | ALL | (A) | ||
| 227 | I8-97405 321-0 | RUBBER; SHUTTER | 1 | 1104- | ALL | |||
| 012 | I8-98260 318-0 | CHANNEL; GLASS RUN,FRT | 1 | 1412- | ALL | |||
| 007 | I8-98260 309-0 | GLASS RUN; FRT DOOR | 1 | 1412- | ALL | (A) | ||
| 001 | I8-97696 474-A | GLASS; FRT DOOR | 1 | 1205- | ALL | |||
| 039 | I8-97948 267-0 | HANDLE; WINDOW REG,FRT DOOR | 2 | 1312-1403 | ALL | |||
| 026 | I0-91180 106-0 | NUT; FLANGE,WINDOW REG | 4 | 1104- | ALL | M6 FLANGE | ||
| 223 | I8-98177 721-0 | SCREW; GUARD BAR | 8 | 1104-1108 | ALL | T25 M6X25 HEXALOBULAR SOCKET | ||
| 012 | I8-98188 419-0 | CHANNEL; GLASS RUN,FRT | 1 | 1106-1411 | ALL | |||
| 031 | I8-94358 581-0 | STOPPER; RUBBER,DOOR INNER | 4 | 1104- | ALL | |||
| 017 | I0-28050 610-0 | SCREW; RR CHANNEL | 4 | 1104- | ALL | M6X10 FLANGE | ||
| 072 | I8-98029 192-1 | SEAL; WAIST,FRT DOOR | 1 | 1104- | ALL | OUTER | ||
| 012 | I8-98188 418-0 | CHANNEL; GLASS RUN,FRT | 1 | 1106-1411 | ALL | |||
| 007 | I8-98031 742-2 | GLASS RUN; FRT DOOR | 2 | 1104-1411 | ALL | (B) |
