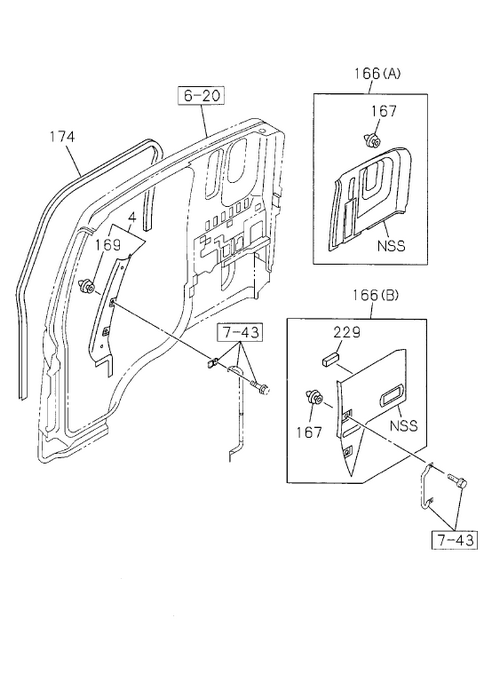

6-43 | SIDE TRIM
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 167 | I8-98059 610-0 | CLIP; TRIM,RR PILLAR | 16 | 1104- | ALL | |||
| 004 | I8-97405 255-2 | COVER; TRIM,FRT SIDE | 1 | 1104- | ALL | |||
| 169 | I8-94279 974-1 | CLIP; TRIM COVER,FRT PILLAR | 4 | 1104- | ALL | OD=7.9 | ||
| 229 | I8-98080 972-0 | SEAL | 4 | 1104-1210 | FVZ | |||
| 166 | I8-97407 459-2 | TRIM; RR PILLAR | 1 | 1104-1210 | ALL | (B) | ||
| 174 | I8-98155 184-A | FINISHER; BODY SIDE | 1 | 1510- | ALL | L=2609 | ||
| 004 | I8-97407 415-1 | COVER; TRIM,FRT SIDE | 1 | 1104- | ALL | |||
| 166 | I8-97415 652-0 | TRIM; RR PILLAR | 1 | 1104- | ALL | (A) | ||
| 166 | I8-97425 038-1 | TRIM; RR PILLAR | 1 | 1211- | ALL | (B) | ||
| 166 | I8-97407 460-2 | TRIM; RR PILLAR | 1 | 1104-1210 | ALL | (B) | ||
| 166 | I8-97425 039-1 | TRIM; RR PILLAR | 1 | 1211- | ALL | (B) | ||
| 166 | I8-97415 651-0 | TRIM; RR PILLAR | 1 | 1104- | ALL | (A) | ||
| 174 | I8-98155 183-A | FINISHER; BODY SIDE | 1 | 1104-1509 | ALL | L=2624 |
