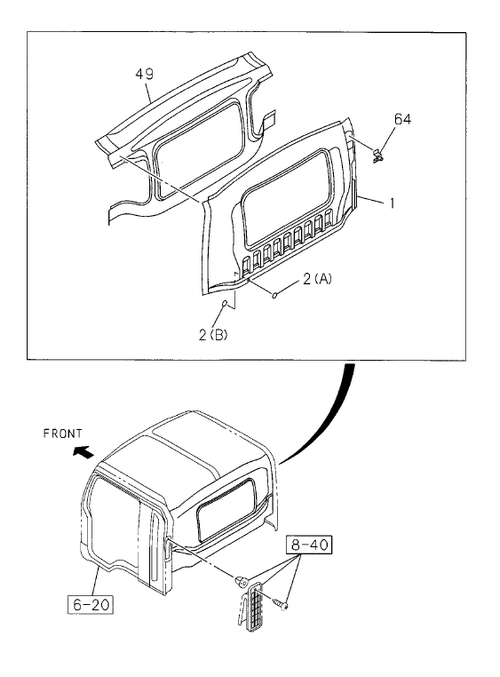

6-80 | BACK PANEL
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-97584 602-3 | PANEL; BACK OUTER | 1 | 1104- | ALL | |||
| 002 | I5-76777 035-0 | GROMMET; LOCATION HOLE,BACK PANEL | 2 | 1104- | ALL | (B) OD=36 T=0.05 | ||
| 002 | I1-76798 029-0 | GROMMET; LOCATION HOLE,BACK PANEL | 2 | 1104- | ALL | (A) OD=25 | ||
| 049 | I8-97584 610-3 | PANEL; BACK INNER | 1 | 1104- | ALL | |||
| 064 | I8-97584 611-1 | BRACKET; AIR INTAKE DUCT | 1 | 1104- | ALL |
