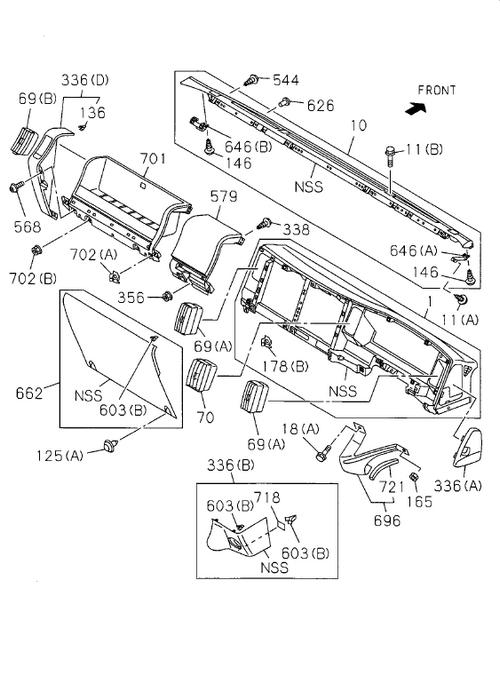

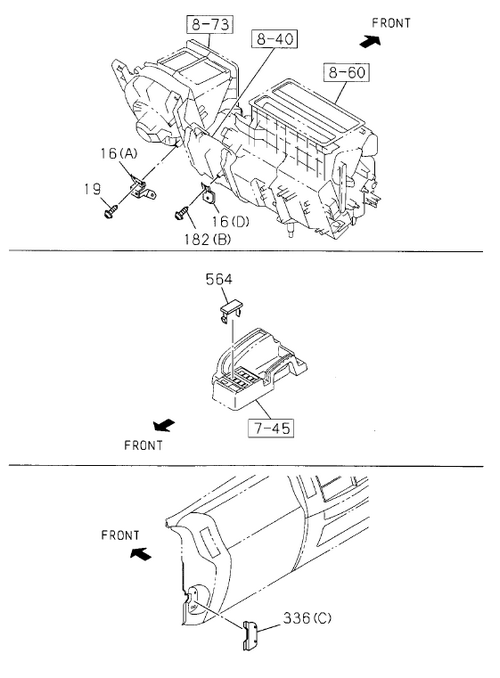

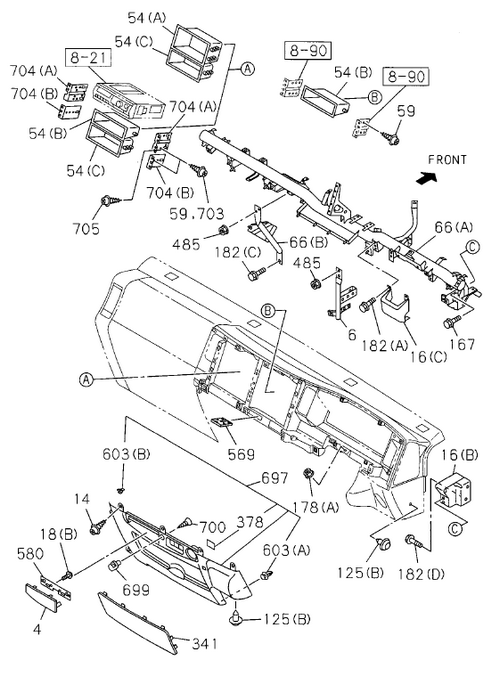

7-40 | INSTRUMENT PANEL AND BOX
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 702 | I8-98037 629-0 | NUT; TRAY | 1 | 1104- | ALL | (A) | ||
| 804 | I8-98182 026-3 | CONTROL UNIT; BCM GIGA | 1 | 1404- | FVZ | MIMAMORI | ||
| 580 | I8-98091 546-0 | BRACKET; COVER | 1 | 1104- | ALL | (A) | ||
| 054 | I8-97408 864-4 | POCKET; CENTER CLUSTER | 1 | 1104- | ALL | (B) H=58.4 | ||
| 727 | I8-98186 934-0 | SEAL; BRACKET | 1 | 1106-1203 | GVZ | |||
| 070 | I8-98028 563-2 | GRILLE; CENTER,AIR OUTLET | 1 | 1104- | ALL | |||
| 564 | I8-97043 732-1 | COVER; SW | 4 | 1104- | GVZ | |||
| 016 | I8-98017 204-1 | BRACKET; INST PNL | 1 | 1104- | ALL | (B) | ||
| 001 | I8-97423 015-0 | PANEL; INST | 1 | 1104- | ALL | |||
| 016 | I8-98017 202-1 | BRACKET; INST PNL | 1 | 1104- | ALL | (B) | ||
| 336 | I8-97407 427-5 | COVER; INST PANEL SIDE | 1 | 1104- | ALL | (D) | ||
| 182 | I0-72180 516-0 | BOLT; BRKT,INST PANEL | 1 | 1104- | ALL | (B) M5X16 TAPPING HEXALOBULAR | ||
| 054 | I8-97407 129-4 | POCKET; CENTER CLUSTER | 1 | 1104- | ALL | (A) H=108.4 | ||
| 378 | I8-98176 199-0 | SEAL; INST PANEL | 1 | 1104- | ALL | 5X30 | ||
| 019 | I0-72180 516-0 | SCREW; BRKT | 1 | 1104- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 544 | I0-72180 516-0 | SCREW; TRAY | 3 | 1104- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 010 | I8-97422 097-1 | PANEL ASM; GARNISH | 1 | 1104- | ALL | |||
| 336 | I8-97409 491-2 | COVER; INST PANEL SIDE | 1 | 1104- | ALL | (C) | ||
| 146 | I0-72180 516-0 | SCREW; TAP | 3 | 1104- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 700 | I0-72180 516-0 | BOLT; HOOK | 1 | 1104- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 167 | I8-97264 766-0 | BOLT; REINF TO INST | 4 | 1104- | ALL | M8X23 FLANGE | ||
| 066 | I8-98361 664-0 | REINFORCEMENT; INST PANEL | 1 | 1112-1406 | ALL | (A) | ||
| 704 | I8-97585 618-2 | BRACKET; CENTER POCKET | 2 | 1104- | ALL | (A) | ||
| 182 | I0-52000 612-0 | BOLT; BRKT,INST PANEL | 2 | 1104-1111 | ALL | (A) M6X12 W/LK&PL WASHER | ||
| 699 | I8-97408 927-0 | HOOK; INST PANEL | 1 | 1104- | ALL | |||
| 701 | I8-97421 976-1 | TRAY; INST | 1 | 1104- | ALL | |||
| 018 | I8-98058 632-0 | BOLT; BRKT | 3 | 1104- | ALL | (B) T25 L=10 HEXALOBULAR | ||
| 014 | I0-72180 516-0 | SCREW; INST PNL | 4 | 1104- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 705 | I0-72180 520-0 | SCREW; BRACKET CENTER POCKET | 8 | 1104- | ALL | M5X20 TAPPING HEXALOBULAR | ||
| 581 | I8-98219 290-0 | SCREW | 2 | 1209- | FVZ | M2.5X4 | ||
| 165 | I0-91180 106-0 | NUT; BRKT KNEE PAD | 1 | 1104- | ALL | M6 FLANGE | ||
| 336 | I8-97422 653-1 | COVER; INST PANEL SIDE | 1 | 1104- | ALL | (B) | ||
| 803 | I1-87412 549-0 | MIMAMORI CONTROLLER KIT; INDON GIGA | 1 | 1404- | FVZ | MIMAMORI | ||
| 069 | I8-98028 562-2 | GRILLE; SIDE,AIR OUTLET | 1 | 1104- | ALL | (B) | ||
| 059 | I8-98058 632-0 | SCREW; CLUSTER POCKET | 4 | 1104- | ALL | T25 L=10 HEXALOBULAR | ||
| 568 | I8-98031 842-0 | BOLT; COVER | 2 | 1204- | GVZ | M6X20 W/LK&PL WASHER | ||
| 580 | I8-98184 330-1 | BRACKET; COVER | 1 | 1404- | GVZ | (B) | ||
| 018 | I0-52000 612-0 | BOLT; BRKT | 1 | 1104- | ALL | (A) M6X12 W/LK&PL WASHER | ||
| 016 | I8-97585 612-2 | BRACKET; INST PNL | 1 | 1104- | ALL | (A) | ||
| 702 | I0-91180 106-0 | NUT; TRAY | 2 | 1104- | ALL | (B) M6 FLANGE | ||
| 662 | I8-97407 429-4 | COVER; LWR,INST PANEL | 1 | 1104- | ALL | |||
| 485 | I0-91180 106-0 | NUT; SUPPORT CLIP,HARNESS | 4 | 1104- | ALL | M6 FLANGE | ||
| 603 | I8-98004 025-0 | CLIP; COVER | 1 | 1104- | ALL | (A) | ||
| 801 | I1-87412 396-0 | BRACKET; ECU,BCM GIGA | 1 | 1404- | FVZ | MIMAMORI | ||
| 802 | I1-87412 409-0 | DIN COVER; 700P UPPER GIGA | 1 | 1404- | FVZ | MIMAMORI | ||
| 006 | I8-98196 255-0 | SUPPORT; INST PANEL | 1 | 1110- | ALL | |||
| 054 | I8-97408 865-4 | POCKET; CENTER CLUSTER | 1 | 1104- | ALL | (C) H=69.8 | ||
| 697 | I8-97422 207-2 | PANEL; INST CENTER | 1 | 1104- | ALL | |||
| 704 | I8-97585 616-2 | BRACKET; CENTER POCKET | 2 | 1104- | ALL | (B) | ||
| 182 | I8-98018 439-0 | BOLT; BRKT,INST PANEL | 1 | 1104- | ALL | (C) M8X25 W/LK&PL WASHER | ||
| 626 | I8-94279 804-0 | RETAINER | 2 | 1104- | ALL | OD=15 | ||
| 338 | I0-72180 516-0 | SCREW; COVER | 4 | 1104- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 125 | I8-97408 817-0 | CLIP; INST PANEL | 4 | 1104- | ALL | (B) | ||
| 178 | I8-98037 629-0 | NUT; INST PANEL | 15 | 1104- | ALL | (B) | ||
| 069 | I8-98028 561-2 | GRILLE; SIDE,AIR OUTLET | 2 | 1104- | ALL | (A) | ||
| 016 | I8-98053 711-0 | BRACKET; INST PNL | 1 | 1104- | ALL | (C) | ||
| 721 | I8-97892 742-0 | FINISHER; BRKT,KNEE | 1 | 1104- | ALL | L=140 | ||
| 066 | I8-98151 167-0 | REINFORCEMENT; INST PANEL | 1 | 1104- | ALL | (B) | ||
| 054 | I8-97926 874-0 | POCKET; CENTER CLUSTER | 1 | 1402-1403 | ALL | (A) H=108.4 | ||
| 011 | I8-98018 440-0 | BOLT; INST PNL | 4 | 1104- | ALL | (B) M6X25 W/LK&PL WASHER | ||
| 356 | I0-91180 106-0 | NUT; COVER | 1 | 1104- | ALL | M6 FLANGE | ||
| 646 | I8-98051 492-2 | BRACKET; GARNISH PANEL | 1 | 1104- | ALL | (B) | ||
| 182 | I0-28050 816-0 | BOLT; BRKT,INST PANEL | 4 | 1104- | ALL | (D) M8X16 FLANGE | ||
| 603 | I8-98021 271-0 | CLIP; COVER | 4 | 1104- | ALL | (B) | ||
| 336 | I8-97407 420-1 | COVER; INST PANEL SIDE | 1 | 1104- | ALL | (A) | ||
| 568 | I0-72180 516-0 | BOLT; COVER | 1 | 1104- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 011 | I0-72180 516-0 | BOLT; INST PNL | 8 | 1104- | ALL | (A) M5X16 TAPPING HEXALOBULAR | ||
| 696 | I8-98066 085-1 | BRACKET; KNEE | 1 | 1104- | ALL | |||
| 569 | I8-97410 276-1 | HOLDER; CARD | 1 | 1104- | ALL | |||
| 125 | I8-97419 968-1 | CLIP; INST PANEL | 2 | 1104-1203 | GVZ | (A) | ||
| 718 | I8-98061 777-0 | SEAL; COVER | 1 | 1104- | ALL | 7X31 | ||
| 579 | I8-97409 853-2 | COVER; INST PNL | 1 | 1104- | ALL | |||
| 178 | I0-91180 106-0 | NUT; INST PANEL | 1 | 1104- | ALL | (A) M6 FLANGE | ||
| 703 | I8-98058 632-0 | SCREW; CENTER POCKET | 4 | 1104- | ALL | T25 L=10 HEXALOBULAR | ||
| 800 | I1-87412 395-0 | DRM BRANCH CABLE; MIMAMORI GIGA | 1 | 1404- | FVZ | MIMAMORI | ||
| 682 | I7-08102 302-A | CLIP | 2 | 1209- | FVZ | |||
| 341 | I8-97422 209-0 | LID; FUSE BOX | 1 | 1104-1208 | GVZ | |||
| 136 | I8-98076 254-0 | CLIP; INST COVER | 2 | 1104- | ALL | |||
| 016 | I8-98180 277-1 | BRACKET; INST PNL | 1 | 1204- | FVZ | (D) | ||
| 646 | I8-98051 490-2 | BRACKET; GARNISH PANEL | 1 | 1104- | ALL | (A) | ||
| 004 | I8-97407 898-1 | COVER; INST PNL | 1 | 1104- | ALL | |||
| 341 | I8-97424 725-1 | LID; FUSE BOX | 1 | 1209- | FVZ |
