| 360 |
I0-70040 514-0 |
|
SCREW; PARCEL |
2 |
1104- |
|
ALL |
(A) M5X14 TAPPING CK-HEAD |
| 506 |
I8-97409 980-1 |
|
CAP; PARCEL BOX |
2 |
1104- |
|
ALL |
|
| 012 |
I8-97466 606-0 |
|
CUSHION; SEAT,FRT |
1 |
1602- |
|
ALL |
|
| 306 |
I1-75538 207-A |
|
NUT; SEAT ADJ |
8 |
1104- |
|
ALL |
(A) M8 FLANGE |
| 099 |
I8-98112 751-0 |
|
BUSHING; SEAT BACK |
1 |
1104- |
|
ALL |
|
| 001 |
I7-31011 311-A |
|

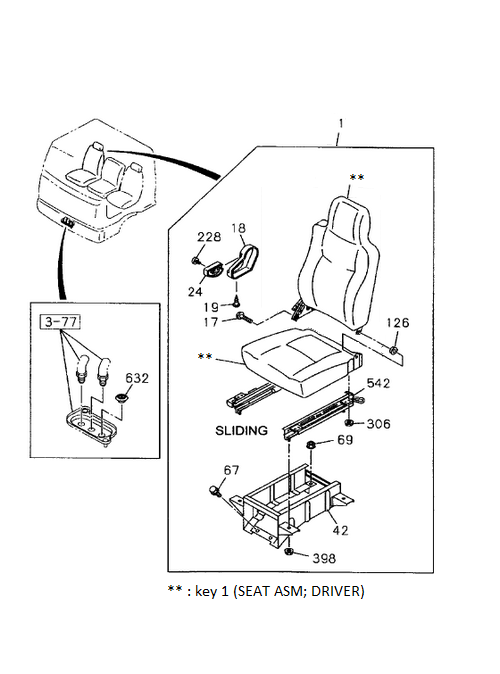

SEAT ASM; DRVR |
1 |
1104-1601 |
|
ALL |
DRIVER |
| 542 |
I8-98291 653-0 |
|

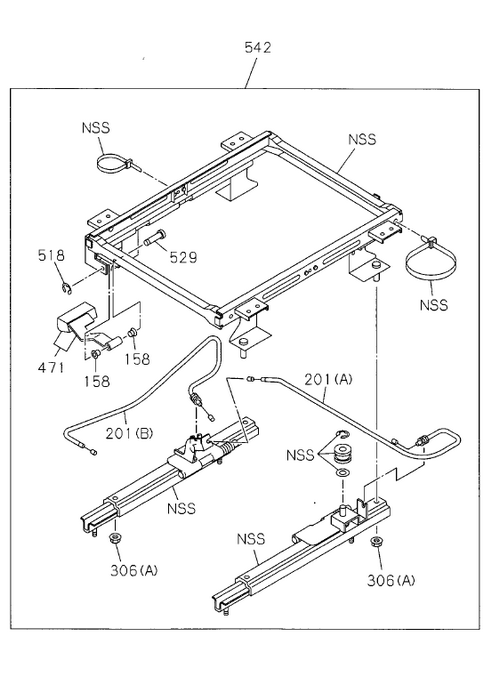

ADJUSTER ASM; SEAT SLIDE |
1 |
1503- |
|
ALL |
|
| 360 |
I0-70040 416-0 |
|
SCREW; PARCEL |
6 |
1104- |
|
ALL |
(B) M4X16 |
| 126 |
I8-97854 900-0 |
|
BUSHING; HINGE,RECLINING |
1 |
1104- |
|
ALL |
(B) |
| 627 |
I8-98063 223-0 |
|
WASHER; FRT SEAT |
1 |
1104- |
|
ALL |
(A) |
| 013 |
I8-97411 909-1 |
|
COVER; TRIM,FRT SEAT,CUSHION |
1 |
1104- |
|
ALL |
|
| 182 |
I8-97409 973-3 |
|
CUSHION ASM; CENTER SEAT |
1 |
1104- |
|
ALL |
|
| 017 |
I8-98092 334-0 |
|
BOLT; RECLINING |
2 |
1104- |
|
ALL |
(A) M8X20 |
| 024 |
I7-32212 311-A |
|
KNOB; RECLINING,FRT,SEAT |
1 |
1104- |
|
ALL |
|
| 012 |
I7-31511 311-A |
|
CUSHION; SEAT,FRT |
1 |
1104-1601 |
|
ALL |
|
| 630 |
I8-98063 225-0 |
|
NUT; CAP |
1 |
1104- |
|
ALL |
M8 |
| 067 |
I0-28451 020-0 |
|
BOLT; FRT SEAT TO BODY |
2 |
1104- |
|
ALL |
M10X20 FLANGE |
| 359 |
I8-97417 261-0 |
|

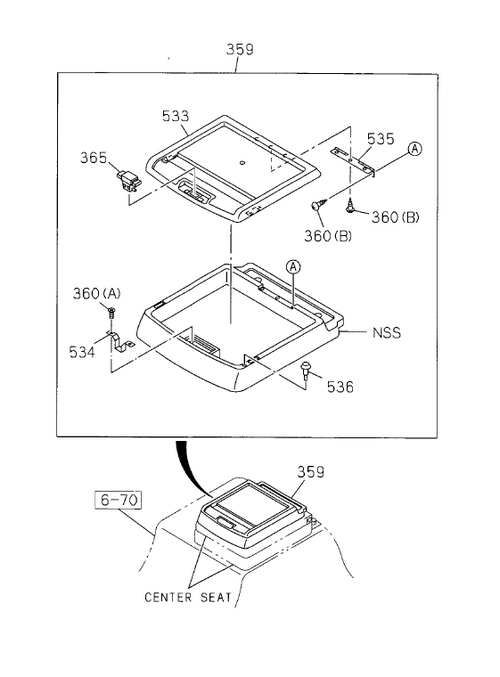

BOX; PARCEL |
1 |
1104- |
|
ALL |
|
| 348 |
I8-98286 008-0 |
|
BOLT; HINGE,SEAT |
1 |
1602- |
|
ALL |
|
| 069 |
I0-91180 110-0 |
|
NUT; FRT SEAT |
2 |
1104- |
|
ALL |
M10 FLANGE |
| 176 |
I8-97409 976-1 |
|
COVER; TRIM,PASSENGER SEAT CENTER,BACK |
1 |
1104- |
|
ALL |
|
| 542 |
I7-32312 311-A |
|
ADJUSTER ASM; SEAT SLIDE |
1 |
1104-1502 |
|
ALL |
|
| 019 |
I8-98062 663-A |
|
SCREW; COVER |
1 |
1104- |
|
ALL |
M5 |
| 114 |
I8-97411 916-0 |
|
COVER; TRIM,PASSENGER SEAT,BACK |
1 |
1104- |
|
ALL |
|
| 534 |
I1-72538 190-0 |
|
STRIKER; PARCEL BOX |
1 |
1104- |
|
ALL |
|
| 179 |
I8-97409 974-1 |
|
COVER; TRIM,PASSENGER SEAT CENTER,CUSH |
1 |
1104- |
|
ALL |
|
| 123 |
I8-98070 026-0 |
|
SCREW; COVER,RECLINING |
1 |
1104- |
|
ALL |
M5 |
| 016 |
I1-75418 062-1 |
|
ADJUSTER ASM; RECLINING |
1 |
1104- |
|
ALL |
|
| 179 |
I8-97409 974-1 |
|
COVER; TRIM,PASSENGER SEAT CENTER,CUSH |
1 |
1312-1403 |
|
FVZ |
|
| 201 |
I1-75518 288-0 |
|
CABLE; ADJ |
1 |
1104- |
|
ALL |
(A) L=667 |
| 126 |
I8-98286 007-0 |
|
BUSHING; HINGE,RECLINING |
1 |
1602- |
|
ALL |
(A) |
| 536 |
I1-72538 187-0 |
|
RUBBER; CUSHION |
2 |
1104- |
|
ALL |
|
| 017 |
I8-98062 661-0 |
|
BOLT; RECLINING |
2 |
1104- |
|
ALL |
(B) M10X20 |
| 002 |
I8-97411 910-2 |
|
COVER; TRIM,FRT SEAT,BACK |
1 |
1104- |
|
ALL |
|
| 042 |
I7-31330 310-B |
|
STAND; DRIVER SEAT |
1 |
1104- |
|
ALL |
DRIVER |
| 201 |
I1-75518 289-1 |
|
CABLE; ADJ |
1 |
1104- |
|
ALL |
(B) L=605 |
| 001 |
I7-31011 313-A |
|
SEAT ASM; DRVR |
1 |
1104-1601 |
|
ALL |
DRIVER |
| 535 |
I1-72448 264-1 |
|
HINGE; PARCEL BOX |
1 |
1104- |
|
ALL |
|
| 188 |
I1-75198 053-0 |
|
BOLT; BACK TO CUSHION |
4 |
1104- |
|
ALL |
M10X16 FLANGE |
| 158 |
I1-75518 209-1 |
|
BUSHING; LINK ARM |
2 |
1104- |
|
ALL |
|
| 126 |
I8-98063 218-0 |
|
BUSHING; HINGE,RECLINING |
1 |
1104-1601 |
|
ALL |
(A) |
| 365 |
I1-72538 312-0 |
|
LOCK ASM; SEAT |
1 |
1104- |
|
ALL |
|
| 113 |
I7-31031 311-A |
|
BACK ASM; SEAT |
1 |
1312-1403 |
|
ALL |
|
| 403 |
I0-91180 108-0 |
|
NUT; CENTER SEAT |
4 |
1104- |
|
ALL |
M8 FLANGE |
| 100 |
I8-98286 009-0 |
|
COVER; HINGE |
1 |
1104- |
|
ALL |
|
| 529 |
I1-75518 262-0 |
|
PIN; LINK |
1 |
1104- |
|
ALL |
|
| 471 |
I8-98107 869-0 |
|
LEVER; SEAT ADJ |
1 |
1104- |
|
ALL |
|
| 228 |
I8-98062 662-0 |
|
SCREW; KNOB |
1 |
1104- |
|
ALL |
M4 |
| 042 |
I7-31331 310-B |
|
STAND; DRIVER SEAT |
1 |
1104- |
|
ALL |
PASSENGER |
| 115 |
I8-97409 965-1 |
|
CUSHION ASM; PASSENGER SEAT |
1 |
1312-1403 |
|
FVZ |
|
| 182 |
I8-97409 973-3 |
|
CUSHION ASM; CENTER SEAT |
1 |
1312-1403 |
|
FVZ |
|
| 115 |
I8-97409 965-1 |
|
CUSHION ASM; PASSENGER SEAT |
1 |
1104- |
|
ALL |
|
| 632 |
I8-94119 796-0 |
|
GROMMET |
1 |
1104- |
|
ALL |
OD=24 |
| 046 |
I0-28451 020-0 |
|
BOLT; STAND TO FLOOR |
2 |
1104- |
|
ALL |
M10X20 FLANGE |
| 360 |
I8-98062 663-A |
|
SCREW; PARCEL |
4 |
1111- |
|
ALL |
(C) M5 |
| 533 |
I8-97417 263-0 |
|
LID; PARCEL BOX |
1 |
1104- |
|
ALL |
|
| 013 |
I8-97411 909-1 |
|
COVER; TRIM,FRT SEAT,CUSHION |
1 |
1312-1403 |
|
FVZ |
|
| 175 |
I7-31021 311-A |
|

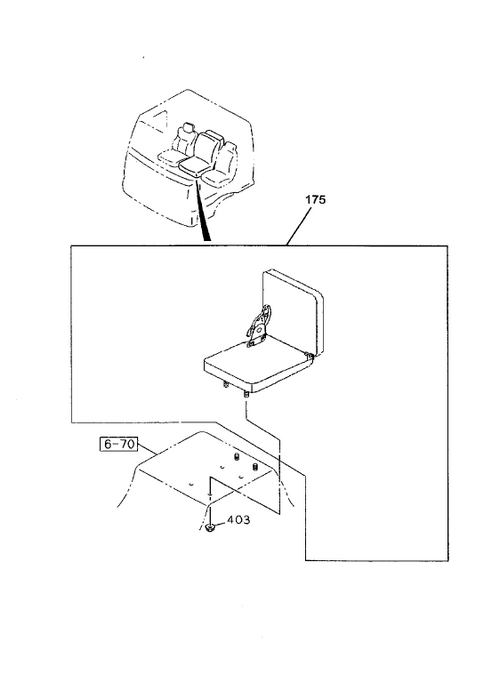

BACK ASM; PASSENGER CENTER SEAT |
1 |
1104- |
|
ALL |
|
| 627 |
I8-98063 224-0 |
|
WASHER; FRT SEAT |
1 |
1104- |
|
ALL |
(B) |
| 306 |
I0-91180 110-0 |
|
NUT; SEAT ADJ |
2 |
1104- |
|
ALL |
(B) M10 FLANGE |
| 122 |
I7-32221 311-A |
|
COVER; ADJ,RECLINING |
1 |
1104- |
|
ALL |
|
| 398 |
I1-75538 207-A |
|
NUT; STAND |
4 |
1104- |
|
ALL |
M8 FLANGE |
| 116 |
I8-97411 915-0 |
|
COVER; TRIM,PASSENGER SEAT,CUSHION |
1 |
1104- |
|
ALL |
|
| 018 |
I7-32211 311-A |
|
COVER; RECLINING |
1 |
1104- |
|
ALL |
|
| 518 |
I1-75518 263-0 |
|
NUT; TILT ADJ |
1 |
1104- |
|
ALL |
|
