8-10 | WIRING HARNESS AND FUSE
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 533 | I1-09709 150-0 | CLIP | 1 | 1404- | GVZ | (J) W/SPONGE RUBBER | ||

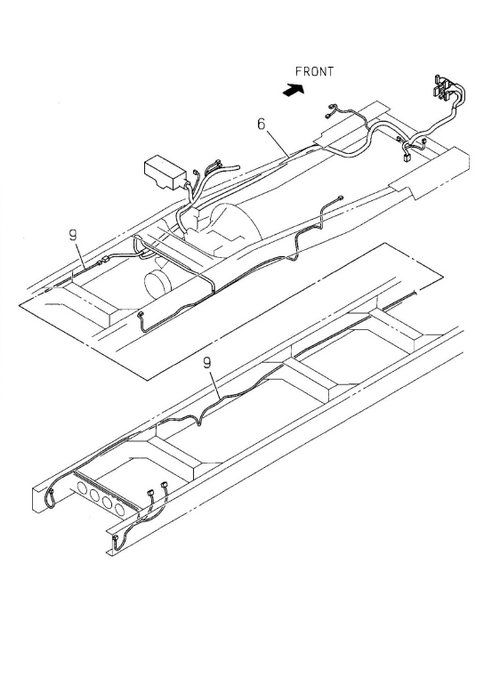

| 001 | I8-97695 383-A | HARNESS; CAB | 1 | 1402-1602 | FVZ | MIXER | ||
| 006 | I8-98246 384-A | HARNESS; FRAME | 1 | 1404- | FVZ | |||

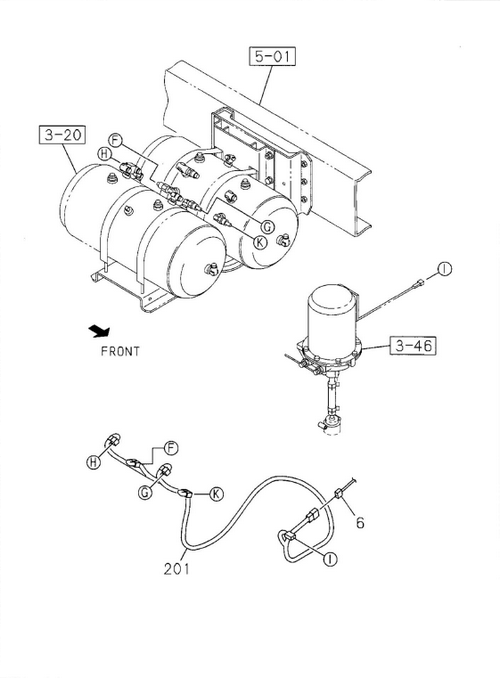

| 201 | I8-98182 517-A | HARNESS; AIR TANK | 1 | 1104- | FVZ | |||

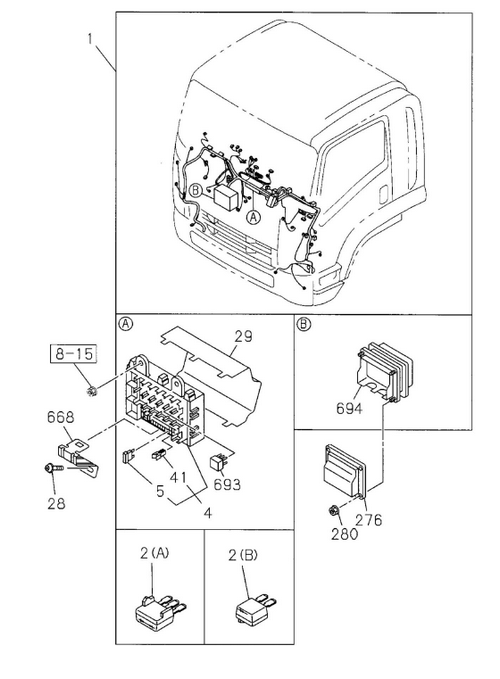

| 001 | I7-42040 312-A | HARNESS; CAB | 1 | 1104-1401 | FVZ | |||
| 533 | I1-09700 905-0 | CLIP | 2 | 1312- | FVZ | (B) ID=34.5 H=23 L=27.5 | ||
| 267 | I0-28650 825-0 | BOLT; BRKT | 1 | 1312-1403 | ALL | (A) M8X25 FLANGE | ||
| 290 | I0-91180 108-0 | NUT; BRKT | 4 | 1404- | ALL | (A) M8 FLANGE | ||
| 029 | I8-98056 968-0 | COVER; FUSE BOX | 1 | 1104- | ALL | |||
| 293 | I0-91180 108-0 | NUT | 1 | 1312-1403 | ALL | M8 FLANGE | ||
| 290 | I7-05110 010-A | NUT; BRKT | 2 | 1312-1403 | ALL | (B) M10 FLANGE | ||
| 095 | I8-98145 855-0 | HARNESS; NEUTRAL SW | 1 | 1104- | FVZ | RED | ||
| 009 | I8-98186 224-A | HARNESS; FRAME,RR | 1 | 1104-1311 | FVZ | LWB | ||
| 041 | I8-98054 260-0 | PULLER; FUSE | 1 | 1104- | ALL | |||
| 533 | I1-09701 017-0 | CLIP | 1 | 1404- | GVZ | (L) ID=31.5 H=23 L=25 | ||
| 005 | I6-98054 258-0 | FUSE; FACIA HARNESS | AR | 1104- | ALL | (IADG) 15A BLUE | ||

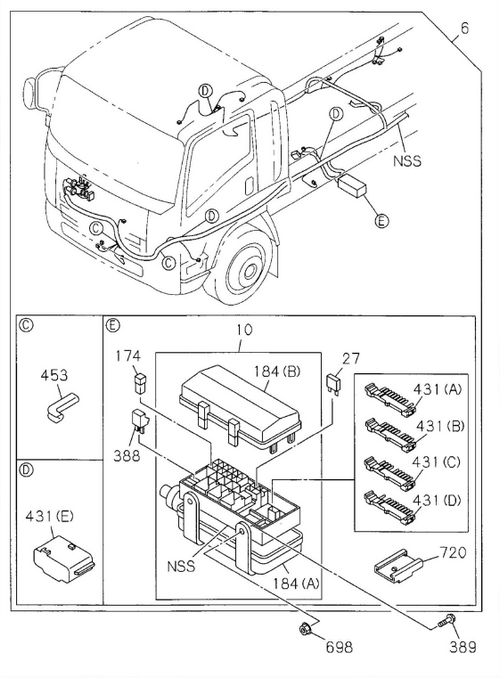

| 431 | I1-82698 579-0 | CONNECTOR; JOINT | 2 | 1104- | FVZ | (A) GREEN 10P | ||

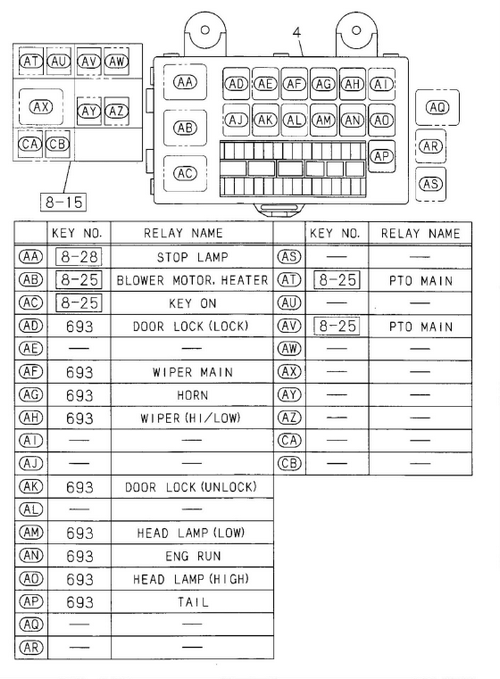

| 693 | I6-97173 035-0 | RELAY; FUSE BOX | AR | 1104- | ALL | (IADG) 24V 10A | ||
| 267 | I0-28651 025-0 | BOLT; BRKT | 2 | 1312-1403 | ALL | (C) M10X25 FLANGE | ||
| 533 | I1-09709 289-0 | CLIP | 1 | 1312-1401 | FVZ | (G) ID=5-12 L=26 | ||
| 668 | I8-98127 093-0 | BRACKET; HARNESS | 1 | 1404- | GVZ | (G) | ||
| 408 | I8-98169 757-0 | SOCKET ASM; ACCESSORY | 1 | 1902- | FVZ | |||
| 668 | I8-98254 592-0 | BRACKET; HARNESS | 1 | 1503- | ALL | (I) | ||
| 640 | I0-91180 108-0 | NUT; CLIP | 1 | 1312-1403 | ALL | M8 FLANGE | ||
| 533 | I1-09701 055-1 | CLIP | 1 | 1404- | GVZ | (K) ID=32 L=50 | ||
| 009 | I8-98221 999-A | HARNESS; FRAME,RR | 1 | 1312- | FVZ | DUMP | ||
| 639 | I0-28650 830-0 | BOLT; CLIP | 1 | 1312-1403 | ALL | (C) M8X30 FLANGE | ||
| 005 | I8-98054 259-0 | FUSE; FACIA HARNESS | AR | 1104- | ALL | 20A YELLOW | ||
| 010 | I8-98030 762-0 | BOX; FUSE,HARNESS | 1 | 1104- | ALL | |||
| 542 | I9-09956 256-2 | GROMMET; HARNESS | 1 | 1312-1403 | ALL | (A) ID=28 OD=35 T=17 | ||
| 431 | I1-82699 599-0 | CONNECTOR; JOINT | 4 | 1104- | FVZ | (B) GREEN 10P | ||
| 525 | I0-91180 108-0 | NUT; CLIP | 1 | 1312-1403 | ALL | M8 FLANGE | ||
| 668 | I8-98237 815-0 | BRACKET; HARNESS | 1 | 1402- | FVZ | (F) MIXER | ||
| 431 | I8-97616 194-0 | CONNECTOR; JOINT | 1 | 1104- | FVZ | (E) 6P BLACK | ||
| 700 | I8-98080 543-0 | HARNESS;EXT,BRAKE LOCK | 1 | 1402- | FVZ | MIXER | ||
| 701 | I8-97621 796-1 | HARNESS;EXT,BRAKE LOCK | 1 | 1402- | FVZ | MIXER | ||
| 002 | I8-94422 640-1 | DIODE; CABLE HARNESS | AR | 1312-1403 | ALL | (C) 3P-1.5A | ||
| 053 | I1-09700 484-0 | CLIP | 1 | 1404-1703 | GVZ | (M) ID=11 L=41 | ||
| 486 | I1-82675 898-0 | HARNESS; ALL SPEED ACCEL | 1 | 1104-1112 | FVZ | MIXER | ||
| 668 | I8-97616 305-0 | BRACKET; HARNESS | 1 | 1312-1403 | ALL | (C) | ||
| 276 | I8-98034 039-1 | COVER; BOX,FRAME HARNESS | 1 | 1104- | ALL | |||
| 431 | I1-82699 601-0 | CONNECTOR; JOINT | 1 | 1104- | FVZ | (D) BROWN 10P | ||
| 001 | I8-97695 384-A | HARNESS; CAB | 1 | 1404- | GVZ | |||
| 533 | I1-09701 214-0 | CLIP | 1 | 1312- | FVZ | (C) ID=35 L=50 | ||

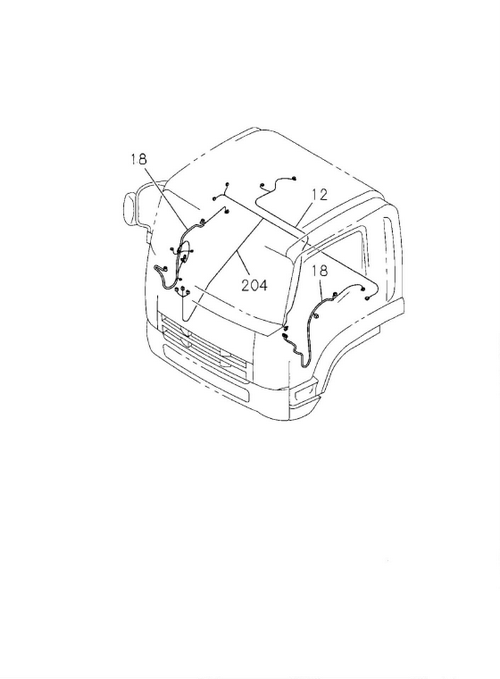

| 012 | I8-98041 949-A | HARNESS; ROOF | 1 | 1104- | ALL | EXC . LAMPS TWO ROOF MARKER | ||
| 463 | I8-98145 856-0 | HARNESS; SW,BACK UP | 1 | 1104- | FVZ | |||
| 462 | I8-98145 857-0 | HARNESS; SW,RANGE | 1 | 1104- | FVZ | BLUE | ||
| 174 | I8-98079 193-0 | FUSE; SLOW BLOW | 3 | 1104- | ALL | 50A RED | ||
| 267 | I0-28650 820-0 | BOLT; BRKT | 1 | 1404- | GVZ | (D) M8X20 FLANGE | ||
| 002 | I8-94416 438-1 | DIODE; CABLE HARNESS | AR | 1104- | ALL | (A) 3P-1.5A | ||
| 720 | I1-82699 688-0 | ATTACHMENT; CONNECTOR | 3 | 1104- | FVZ | |||
| 533 | I1-09700 863-0 | CLIP | 2 | 1312-1409 | ALL | (A) ID=27.5 H=23 L=24 | ||
| 116 | I8-98251 501-0 | HARNESS; TRACTOR | 1 | 1404- | GVZ | |||
| 006 | I8-97696 004-A | HARNESS; FRAME | 1 | 1704- | FVZ | B10 DIESEL ; MIXER | ||
| 431 | I1-82699 598-0 | CONNECTOR; JOINT | 4 | 1104- | FVZ | (C) BLUE 10P | ||

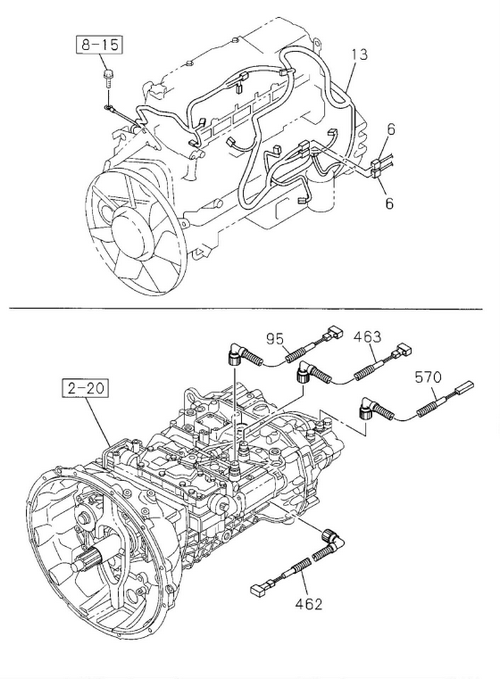

| 013 | I8-98250 434-0 | HARNESS; ENG | 1 | 1402- | FVZ | MIXER | ||
| 201 | I8-98222 013-A | HARNESS; AIR TANK | 1 | 1402- | FVZ | MIXER | ||
| 001 | I8-97696 006-A | HARNESS; CAB | 1 | 1603- | FVZ | |||
| 174 | I8-97219 407-0 | FUSE; SLOW BLOW | 1 | 1107- | ALL | 60A YELLOW | ||
| 694 | I8-98057 771-0 | BOX ASM; CONNECTOR | 1 | 1312-1403 | ALL | |||
| 668 | I8-97609 110-1 | BRACKET; HARNESS | 1 | 1312-1403 | ALL | (B) | ||

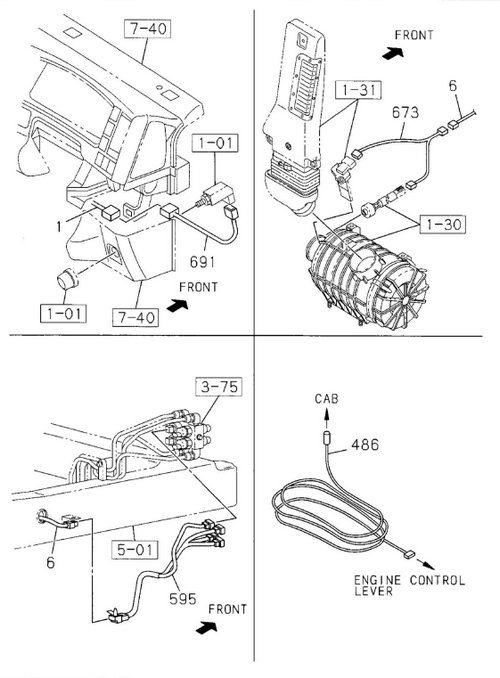

| 570 | I8-98148 602-0 | HARNESS; SPEED SENSOR | 1 | 1104- | FVZ | |||
| 001 | I8-97695 382-A | HARNESS; CAB | 1 | 1402-1602 | FVZ | |||
| 639 | I0-50640 830-0 | BOLT; CLIP | 1 | 1404- | GVZ | (D) M8X30 W/LK&PL WASHER | ||
| 668 | I8-98095 653-2 | BRACKET; HARNESS | 1 | 1104- | ALL | (D) | ||
| 174 | I8-98079 191-0 | FUSE; SLOW BLOW | 1 | 1104- | ALL | 30A PINK | ||
| 013 | I8-98075 774-5 | HARNESS; ENG | 1 | 1104-1410 | ALL | |||
| 204 | I8-98182 447-A | HARNESS; CABLE,FLOOR | 1 | 1104- | FVZ | |||
| 201 | I8-98250 277-A | HARNESS; AIR TANK | 1 | 1404- | GVZ | |||
| 002 | I8-94422 639-1 | DIODE; CABLE HARNESS | AR | 1104- | ALL | (B) 2P-1.5A | ||
| 533 | I1-09700 466-0 | CLIP | 16 | 1402- | GVZ | (H) ID=15 L=65 | ||
| 005 | I6-98054 257-0 | FUSE; FACIA HARNESS | AR | 1104- | ALL | (IADG) 10A RED | ||
| 639 | I0-28650 820-0 | BOLT; CLIP | 1 | 1312-1403 | ALL | (A) M8X20 FLANGE | ||
| 009 | I8-98222 001-A | HARNESS; FRAME,RR | 1 | 1312- | FVZ | LWB | ||
| 204 | I8-98250 442-A | HARNESS; CABLE,FLOOR | 1 | 1404- | GVZ | |||
| 027 | I6-98054 258-0 | FUSE UNIT | 1 | 1104- | ALL | (IADG) 15A BLUE | ||
| 006 | I8-97695 274-A | HARNESS; FRAME | 1 | 1402-1703 | FVZ | MIXER | ||
| 009 | I8-97695 275-A | HARNESS; FRAME,RR | 1 | 1402- | FVZ | MIXER | ||
| 028 | I0-28650 616-0 | SCREW; FUSE BOX | 1 | 1104- | ALL | BOLT M6X16 FLANGE | ||
| 004 | I8-98065 666-0 | BOX ASM; FUSE,HARNESS | 1 | 1104- | ALL | |||
| 668 | I1-47475 304-0 | BRACKET; HARNESS | 1 | 1312-1403 | ALL | (A) L=55 H=25 | ||
| 009 | I8-98250 279-A | HARNESS; FRAME,RR | 1 | 1404- | GVZ | |||
| 009 | I8-98182 515-A | HARNESS; FRAME,RR | 1 | 1104-1311 | FVZ | DUMP | ||
| 005 | I6-98054 259-0 | FUSE; FACIA HARNESS | AR | 1104- | ALL | (IADG) 20A YELLOW | ||
| 012 | I8-98085 333-0 | HARNESS; ROOF | 1 | 1104- | ALL | LAMPS TWO ROOF MARKER | ||
| 639 | I0-28650 825-0 | BOLT; CLIP | 1 | 1312-1403 | ALL | (B) M8X25 FLANGE | ||
| 533 | I1-09707 183-0 | CLIP | 2 | 1404- | ALL | (D) L=350 | ||
| 005 | I8-98062 982-0 | FUSE; FACIA HARNESS | 1 | 1104- | ALL | 25A | ||
| 533 | I5-09707 030-1 | CLIP | 5 | 1312-1403 | ALL | (F) L=250 | ||
| 184 | I8-98030 766-0 | COVER; RELAY & FUSE BOX | 1 | 1104- | ALL | (A) | ||
| 267 | I0-28650 835-0 | BOLT; BRKT | 1 | 1404- | ALL | (B) M8X35 FLANGE | ||
| 005 | I8-98054 257-0 | FUSE; FACIA HARNESS | AR | 1104- | ALL | 10A RED | ||
| 018 | I8-98076 305-A | HARNESS; DOOR | 1 | 1104- | ALL | PASSENGER | ||
| 542 | I1-09332 011-1 | GROMMET; HARNESS | 1 | 1402-1403 | GVZ | (B) ID=28 OD=35 T=25 ; MIXER | ||
| 174 | I6-98079 193-0 | FUSE; SLOW BLOW | 3 | 1104- | ALL | (IADG) 50A RED | ||
| 006 | I8-98246 391-A | HARNESS; FRAME | 1 | 1404- | GVZ | |||
| 673 | I8-98069 172-A | HARNESS; EXT,SENSOR | 1 | 1104- | ALL | |||
| 595 | I8-97620 487-A | HARNESS; WARNING,BRK | 1 | 1104- | ALL | |||
| 534 | I0-28650 830-0 | BOLT | 1 | 1312-1403 | ALL | (A) M8X30 FLANGE | ||
| 409 | I8-98183 771-0 | CAP; ACCESSORY SOCKET | 1 | 1902- | FVZ | |||
| 534 | I1-09030 073-0 | BOLT | 3 | 1312-1403 | ALL | (B) M8X35 W/LK&PL WASHER | ||
| 533 | I1-09707 107-1 | CLIP | 1 | 1312-1401 | ALL | (E) L=600 | ||
| 453 | I1-82699 709-0 | PROTECTOR; HARNESS | 1 | 1104- | ALL | |||
| 694 | I8-98063 269-1 | BOX ASM; CONNECTOR | 1 | 1104- | ALL | |||
| 548 | I1-09332 011-1 | GROMMET | 1 | 1312-1403 | ALL | ID=28 OD=35 T=25 | ||
| 006 | I7-42060 313-A | HARNESS; FRAME | 1 | 1104-1403 | FVZ | |||
| 693 | I8-97173 035-1 | RELAY; FUSE BOX | AR | 1104- | ALL | 24V 10A | ||
| 027 | I8-98054 258-0 | FUSE UNIT | 1 | 1104- | ALL | 15A BLUE | ||
| 533 | I1-09709 181-0 | CLIP | 1 | 1312-1401 | ALL | (I) OD=9 H=17.5 | ||
| 668 | I8-98212 082-1 | BRACKET; HARNESS | 1 | 1312-1401 | GVZ | (F) | ||
| 668 | I1-47476 658-0 | BRACKET; HARNESS | 1 | 1404- | GVZ | (H) | ||
| 174 | I6-98079 191-0 | FUSE; SLOW BLOW | 1 | 1104- | ALL | (IADG) 30A PINK | ||
| 174 | I6-98079 192-0 | FUSE; SLOW BLOW | 1 | 1104- | ALL | (IADG) 40A GREEN | ||
| 184 | I8-98081 367-0 | COVER; RELAY & FUSE BOX | 1 | 1104- | ALL | (B) | ||
| 001 | I8-97696 007-A | HARNESS; CAB | 1 | 1603- | FVZ | MIXER | ||
| 174 | I8-98079 192-0 | FUSE; SLOW BLOW | 1 | 1104- | ALL | 40A GREEN | ||
| 005 | I8-98054 258-0 | FUSE; FACIA HARNESS | AR | 1104- | ALL | 15A BLUE | ||
| 668 | I8-98168 184-0 | BRACKET; HARNESS | 1 | 1312-1403 | ALL | (E) | ||
| 018 | I8-98076 304-A | HARNESS; DOOR | 1 | 1104- | ALL | DRIVER | ||
| 280 | I0-91180 106-0 | NUT; BOX ASM FIX | 4 | 1104- | ALL | M6 FLANGE | ||
| 691 | I8-98049 014-A | HARNESS; IDLE CONT | 1 | 1104- | ALL |
