8-15 | FIXING PARTS; WIRING HARNESS
GIGA
GIGA FVZ

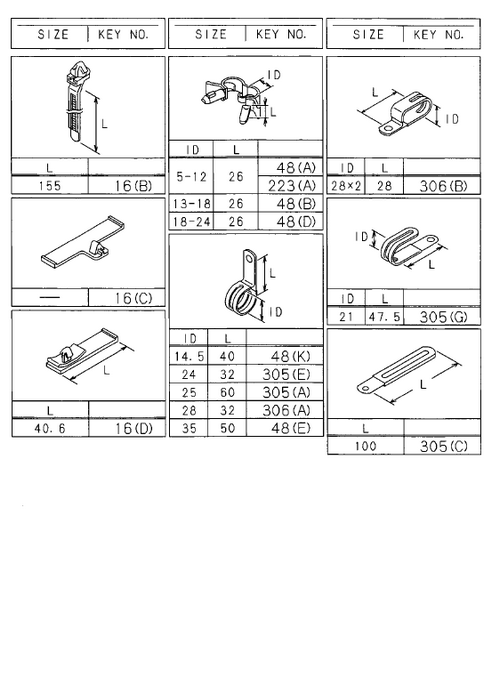

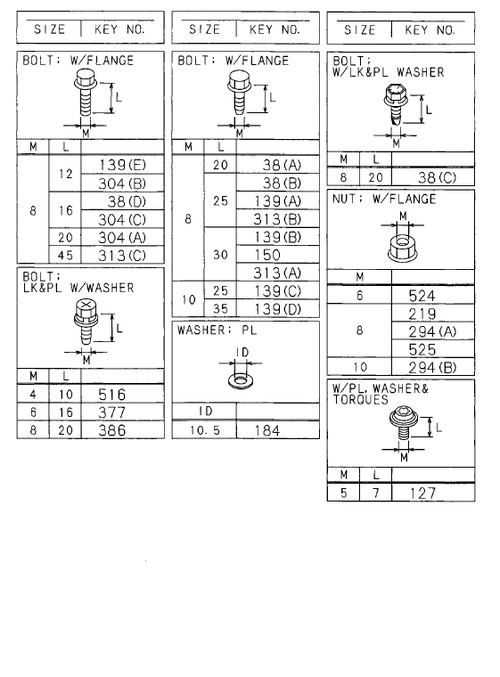

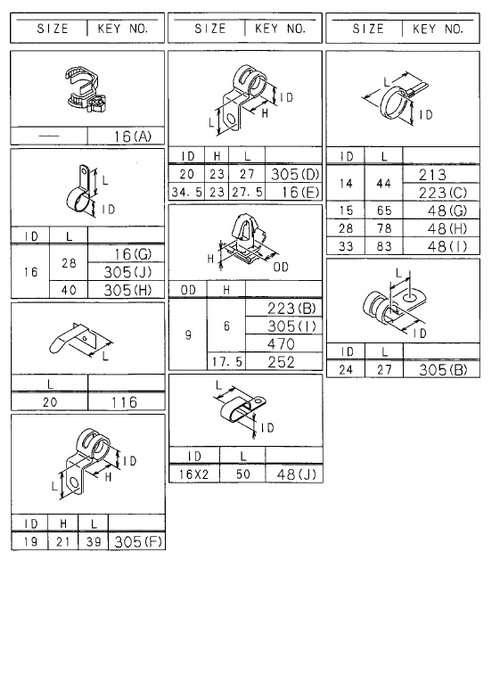

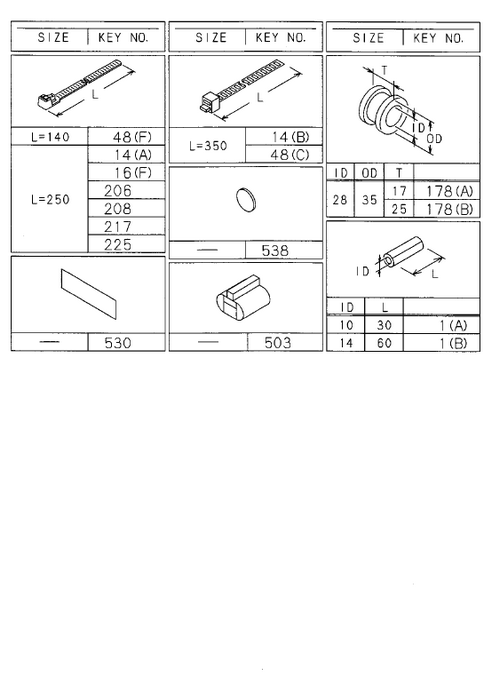

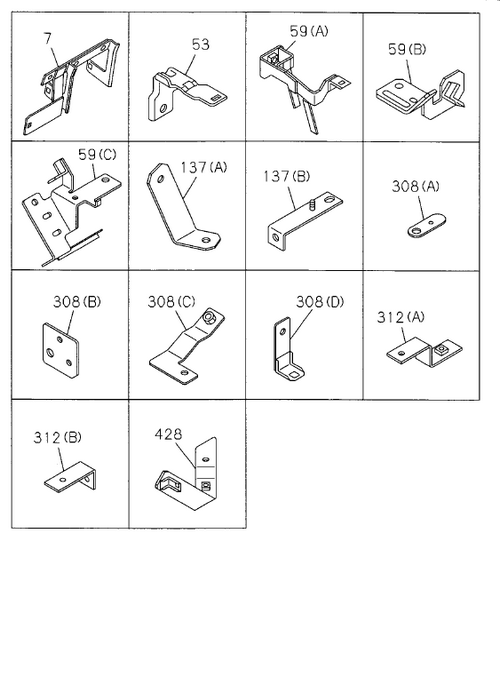

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 038 | I0-28050 816-0 | BOLT; CLIP,HARNESS | 2 | 1104- | ALL | (A) M8X16 FLANGE | ||
| 038 | I8-98141 255-0 | BOLT; CLIP,HARNESS | 3 | 1203- | ALL | (C) M8X18.5 W/PL WASHER | ||
| 525 | I0-91180 108-0 | NUT; CLIP | 2 | 1104- | ALL | M8 FLANGE | ||
| 305 | I1-09700 766-1 | CLIP; ENG HARNESS | 1 | 1104- | GVZ | (D) ID=24 L=32 | ||
| 014 | I1-09707 183-0 | CLIP; BAND,HARNESS | 1 | 1104- | ALL | (B) L=350 | ||
| 048 | I1-09700 858-0 | CLIP; FRAME HARNESS | 1 | 1104- | FVZ | (B) ID=28 L=78 | ||
| 308 | I8-98075 824-0 | BRACKET; CLIP,ENG HARNESS | 1 | 1104- | ALL | (D) | ||
| 305 | I1-09700 972-1 | CLIP; ENG HARNESS | 1 | 1104- | ALL | (G) ID=19 H=21 L=39 | ||
| 016 | I8-94472 578-0 | CLIP; HARNESS | 1 | 1104- | ALL | (A) ID=10 & 16 | ||
| 377 | I8-97086 823-0 | BOLT; CAB EARTH | 2 | 1104- | ALL | M6X16 W/LK&PL WASHER | ||
| 524 | I0-91180 106-0 | NUT; HARNESS | 2 | 1104- | ALL | M6 FLANGE | ||
| 038 | I0-28650 825-0 | BOLT; CLIP,HARNESS | 2 | 1104- | ALL | (B) M8X25 FLANGE | ||
| 219 | I0-91180 108-0 | NUT | 2 | 1104- | ALL | M8 FLANGE | ||
| 516 | I0-36230 410-0 | BOLT; HARNESS | 1 | 1104- | ALL | M4X10 W/LK&PL WASHER | ||
| 137 | I8-97614 728-1 | BRACKET; HARNESS CLAMP | 1 | 1104- | ALL | (A) | ||
| 053 | I8-98052 458-0 | BRACKET; HARNESS | 1 | 1104- | ALL | |||
| 038 | I0-28151 016-0 | BOLT; CLIP,HARNESS | 1 | 1310- | ALL | (D) M10X16 FLANGE | ||
| 308 | I8-97601 310-0 | BRACKET; CLIP,ENG HARNESS | 2 | 1104- | ALL | (A) | ||
| 305 | I1-09709 178-0 | CLIP; ENG HARNESS | 1 | 1104- | ALL | (I) OD=9 H=6 | ||
| 137 | I8-97624 013-0 | BRACKET; HARNESS CLAMP | 1 | 1104- | ALL | (B) | ||
| 184 | I1-09503 265-0 | WASHER; PL,STARTER EARTH | 1 | 1104- | GVZ | ID=10.5 OD=22 T=2.0 ; MIXER | ||
| 308 | I8-98021 692-1 | BRACKET; CLIP,ENG HARNESS | 1 | 1104- | GVZ | (B) | ||
| 016 | I0-95235 035-0 | CLIP; HARNESS | 1 | 1312-1403 | ALL | (H) ID=11 L=20 | ||
| 016 | I1-09701 014-0 | CLIP; HARNESS | 1 | 1312- | FVZ | (E) ID=14.5 L=40 | ||
| 530 | I1-72498 019-1 | SEAL; HARNESS | 11 | 1104-1402 | FVZ | 180X40 | ||
| 001 | I9-09956 682-0 | SLEEVE; RUBBER | 3 | 1104-1410 | ALL | (B) ID=10 OD=14 L=30 ; EXC. MIXER | ||
| 538 | I1-76798 029-0 | SEAL; HOLE | 1 | 1104- | ALL | OD=25 | ||
| 305 | I1-09700 809-0 | CLIP; ENG HARNESS | 3 | 1104- | ALL | (E) ID=24 L=27 | ||
| 016 | I8-97173 307-0 | CLIP; HARNESS | 18 | 1104- | ALL | (B) L=155 | ||
| 139 | I0-28651 035-0 | BOLT; BRKT | 1 | 1104- | ALL | (C) M10X35 FLANGE | ||
| 305 | I8-94178 108-0 | CLIP; ENG HARNESS | 1 | 1104- | ALL | (C) ID=21 L=47.5 | ||
| 305 | I1-09701 041-1 | CLIP; ENG HARNESS | 1 | 1104- | ALL | (H) ID=25 L=60 | ||
| 001 | I1-09337 030-0 | SLEEVE; RUBBER | 1 | 1104-1410 | ALL | (A) ID=14 OD=18 L=60 | ||
| 139 | I0-28650 825-0 | BOLT; BRKT | 1 | 1104- | ALL | (D) M8X25 FLANGE | ||
| 386 | I8-98141 255-0 | BOLT; GRAND HARNESS | 2 | 1312-1403 | ALL | M8X18.5 W/PL WASHER | ||
| 014 | I8-98216 430-0 | CLIP; BAND,HARNESS | 8 | 1411- | ALL | EXC. (A) L=250 | ||
| 139 | I0-28050 812-A | BOLT; BRKT | 1 | 1104- | ALL | (A) M8X12 FLANGE | ||
| 016 | I0-95325 586-0 | CLIP; HARNESS | 1 | 1312- | FVZ | (G) ID=16X2 L=50 | ||
| 139 | I0-28650 830-0 | BOLT; BRKT | 1 | 1104- | ALL | (B) M8X30 FLANGE | ||
| 217 | I5-09707 030-1 | CLIP; RR BODY HARNESS | 2 | 1104- | ALL | L=250 | ||
| 304 | I0-28050 812-A | BOLT; ENG HARNESS CLIP | 6 | 1104- | ALL | (B) M8X12 FLANGE | ||
| 503 | I1-82690 668-0 | CONNECTOR | 1 | 1104- | ALL | |||
| 016 | I1-09701 012-0 | CLIP; HARNESS | 1 | 1312-1403 | ALL | (I) ID=14.5 L=20 | ||
| 016 | I0-95235 556-0 | CLIP; HARNESS | 2 | 1104- | ALL | (F) ID=16 L=28 | ||
| 007 | I8-98049 798-1 | BRACKET; CONNECTOR | 1 | 1104- | FVZ | |||
| 305 | I0-95235 556-0 | CLIP; ENG HARNESS | 2 | 1104- | GVZ | (B) ID=16 L=28 | ||
| 470 | I1-09709 178-0 | CLIP; HARNESS,LICENSE LAMP | 1 | 1104- | ALL | OD=9 H=6 | ||
| 306 | I1-09701 107-1 | CLIP; HARNESS,ELEC GOV | 1 | 1104- | ALL | (A) ID=28 L=32 | ||
| 116 | I1-09987 246-2 | CLIP; ROOF HARNESS | 3 | 1104- | ALL | L=20 | ||
| 308 | I8-98032 178-0 | BRACKET; CLIP,ENG HARNESS | 1 | 1104-1410 | ALL | (C) | ||
| 038 | I0-28651 020-0 | BOLT; CLIP,HARNESS | 1 | 1312-1403 | ALL | (E) M10X20 FLANGE | ||
| 016 | I8-97229 357-0 | CLIP; HARNESS | 2 | 1104- | ALL | (D) L=40.6 | ||
| 428 | I8-97620 514-0 | BRACKET | 1 | 1104- | FVZ | |||
| 059 | I8-98099 963-0 | BRACKET; FRAME HARNESS | 1 | 1402- | FVZ | MIXER | ||
| 306 | I1-09701 302-0 | CLIP; HARNESS,ELEC GOV | 2 | 1104- | ALL | (B) ID=28X2 L=28 | ||
| 016 | I1-09709 281-1 | CLIP; HARNESS | 1 | 1404- | GVZ | (J) ID=12 & 15 | ||
| 305 | I1-09700 861-0 | CLIP; ENG HARNESS | 1 | 1104- | ALL | (F) ID=20 H=23 L=27 | ||
| 016 | I8-98052 679-0 | CLIP; HARNESS | 2 | 1104- | ALL | (C) | ||
| 127 | I8-98063 767-0 | SCREW; FACIA HARNESS CLIP | 1 | 1104- | ALL | M5X7 HEXALOBULAR SOCKET | ||
| 305 | I0-95235 576-0 | CLIP; ENG HARNESS | 1 | 1104- | ALL | (A) ID=16 L=40 | ||
| 048 | I5-09707 031-1 | CLIP; FRAME HARNESS | 2 | 1104- | ALL | (A) L=140 | ||
| 178 | I1-09332 011-1 | GROMMET; HARNESS | 1 | 1104- | ALL | ID=28 OD=35 T=25 | ||
| 305 | I1-09701 067-0 | CLIP; ENG HARNESS | 1 | 1402- | FVZ | (L) ID=18 L=28 ; MIXER | ||
| 304 | I0-28050 816-0 | BOLT; ENG HARNESS CLIP | 5 | 1104- | GVZ | (C) M8X16 FLANGE | ||
| 304 | I0-28050 820-0 | BOLT; ENG HARNESS CLIP | 4 | 1104- | ALL | (A) M8X20 FLANGE | ||
| 059 | I8-97609 264-2 | BRACKET; FRAME HARNESS | 1 | 1104- | GVZ | |||
| 305 | I8-94443 021-1 | CLIP; ENG HARNESS | 2 | 1104-1310 | ALL | (J) L=100 | ||
| 305 | I1-09700 862-0 | CLIP; ENG HARNESS | 1 | 1402- | FVZ | (K) ID=24.5 H=23 L=25 ; MIXER |
