8-25 | SWITCH AND RELAY; INSTRUMENT PANEL
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

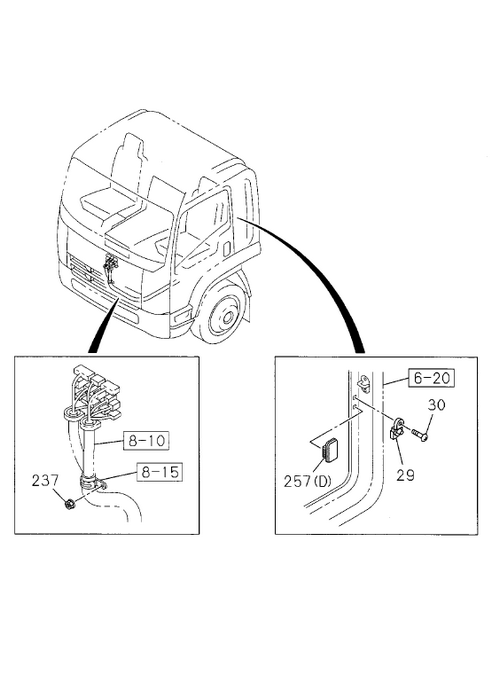

| 257 | I8-98029 917-0 | COVER; HOLE,SW | 1 | 1104- | ALL | (D) | ||

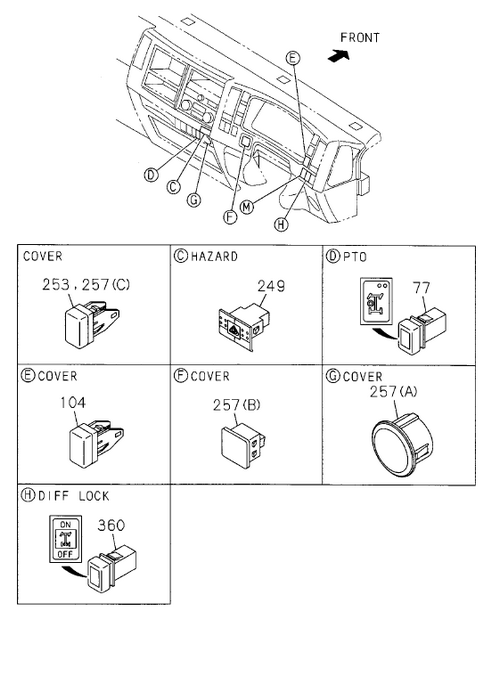

| 249 | I8-97386 922-1 | SWITCH; HAZARD | 1 | 1104- | ALL | |||
| 021 | I8-97358 248-0 | SWITCH; CLU | 1 | 1104- | GVZ | EXC. PTO TRANS | ||
| 249 | I8-97948 258-0 | SWITCH; HAZARD | 1 | 1312-1403 | ALL | |||
| 253 | I8-98025 954-1 | COVER; SW HOLE | 1 | 1104- | ALL | |||
| 352 | I8-98011 341-1 | SWITCH ASM; BRK LK | 1 | 1402- | FVZ | PARKING BRAKE - BRAKE LOCK | ||
| 003 | I8-98061 743-0 | SCREW; COMB SW | 2 | 1104- | ALL | M5X20 W/PL WASHER&TORQUES | ||
| 021 | I8-94337 761-0 | SWITCH; CLU | 1 | 1104- | FVZ | PTO TRANS | ||
| 257 | I8-98070 401-2 | COVER; HOLE,SW | 1 | 1104- | ALL | (A) | ||

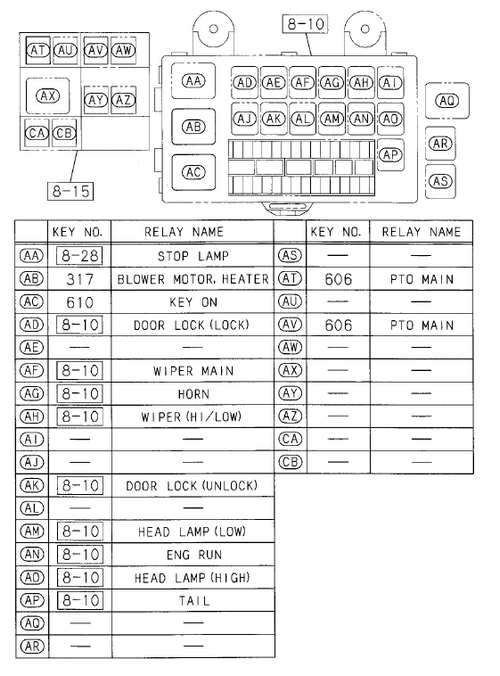

| 606 | I8-97178 672-0 | RELAY; PTO MAIN | 1 | 1402- | FVZ | MIXER | ||
| 610 | I6-97173 035-0 | RELAY; KEY ON | 1 | 1312-1403 | ALL | (IADG) (B) 24V 10A | ||
| 317 | I8-97262 933-0 | RELAY; BLOWER MOTOR,HTR | 1 | 1104- | ALL | 24V 12.5A | ||
| 077 | I8-97615 488-2 | SWITCH; PTO | 1 | 1104- | FVZ | PTO TRANS | ||
| 104 | I8-98025 954-1 | COVER; SW HOLE,FOG LAMP | 1 | 1104- | ALL | |||
| 606 | I8-97173 035-1 | RELAY; PTO MAIN | 1 | 1104- | FVZ | 24V 10A ; PTO TRANS | ||
| 029 | I8-98022 211-0 | SWITCH; DOOR | 1 | 1104- | ALL | |||
| 030 | I8-98047 201-0 | SCREW; DOOR SW | 1 | 1104- | ALL | M5X18 | ||
| 606 | I6-97173 035-0 | RELAY; PTO MAIN | 1 | 1104- | FVZ | (IADG) 24V 10A ; PTO TRANS | ||
| 359 | I8-98010 857-0 | SWITCH; TRAILER BRAKE | 1 | 1404- | GVZ | STAMP 0.3 | ||
| 360 | I8-97613 964-1 | SWITCH ASM; DIFF LK | 1 | 1104- | ALL | |||
| 610 | I8-97173 035-1 | RELAY; KEY ON | 1 | 1312-1403 | ALL | (B) 24V 10A | ||
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 2 | 1104- | ALL | (C) | ||

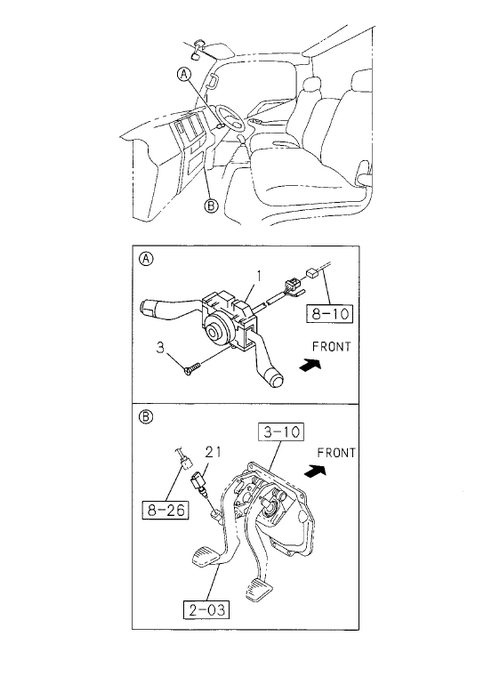

| 001 | I8-98243 704-0 | SWITCH; COMB | 1 | 1311- | ALL | |||
| 701 | I1-83119 585-1 | INDICATOR (Green)-MIXER | 1 | 1402- | FVZ | MIXER | ||
| 595 | I6-97173 035-0 | RELAY; IGNITION | 1 | 1312-1403 | ALL | (IADG) 24V 10A | ||
| 257 | I8-98029 914-1 | COVER; HOLE,SW | 1 | 1104- | ALL | (B) | ||
| 610 | I8-97262 933-0 | RELAY; KEY ON | 1 | 1104- | ALL | (A) 24V 12.5A | ||
| 595 | I8-97173 035-1 | RELAY; IGNITION | 1 | 1312-1403 | ALL | 24V 10A |
