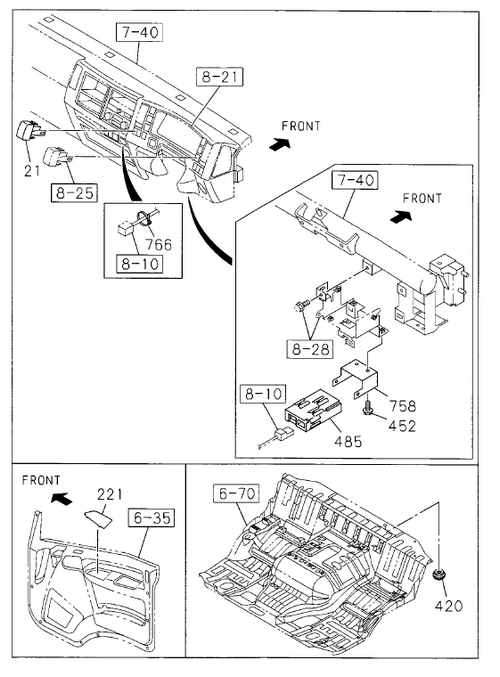

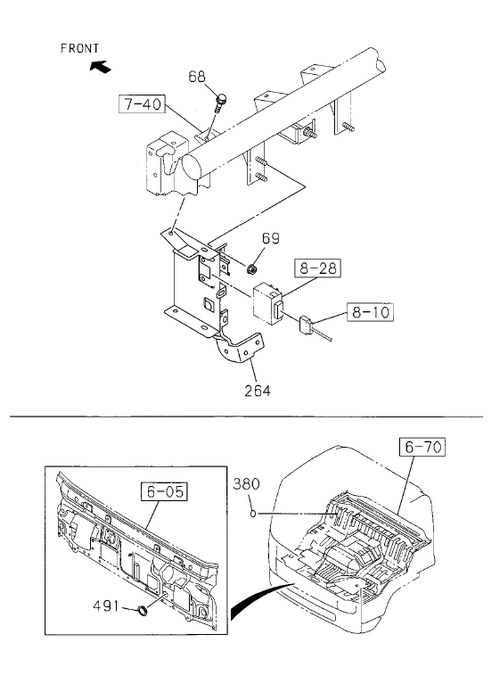

8-26 | ELECTRICAL CONTROL AND OTHER PARTS
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 608 | I0-28650 616-0 | BOLT; CONT UNIT,AIR SUS | 5 | 1402-1403 | GVZ | M6X16 FLANGE ; PARKING BRAKE - BRAKE LOCK | ||
| 491 | I8-98054 651-A | PLUG; HOLE,CONT UNIT | 1 | 1104- | ALL | OD=60 | ||
| 069 | I0-91180 106-0 | NUT; BRKT | 1 | 1104- | ALL | M6 FLANGE | ||
| 264 | I8-98249 082-1 | BRACKET; CONT UNIT | 1 | 1404- | GVZ | |||
| 264 | I8-97609 985-9 | BRACKET; CONT UNIT | 1 | 1104-1203 | FVZ | |||
| 221 | I8-98029 916-2 | COVER; HOLE,DOOR LOCK SW | 1 | 1104- | ALL | |||
| 151 | I7-05110 010-A | NUT; BUZZER BRK LK | 1 | 1402- | FVZ | M10 FLANGE ; PARKING BRAKE - BRAKE LOCK | ||
| 485 | I1-80190 063-0 | CONTROL UNIT; SPEED SENSOR | 1 | 1104- | FVZ | |||
| 609 | I8-98250 445-0 | BRACKET ASM; ELEC UNIT,AIR SUS | 1 | 1402-1403 | GVZ | PARKING BRAKE - BRAKE LOCK | ||
| 264 | I8-98180 453-0 | BRACKET; CONT UNIT | 1 | 1204- | FVZ | |||
| 380 | I1-76798 029-0 | SEAL | 1 | 1104- | ALL | OD=25 | ||
| 149 | I1-83460 104-0 | BUZZER; BRK LK | 1 | 1402- | FVZ | PARKING BRAKE - BRAKE LOCK | ||
| 657 | I8-97948 260-2 | CONTROL UNIT; MIMAMORI | 1 | 1312-1403 | ALL | |||
| 300 | I0-28650 616-0 | BOLT; CONT UNIT BRKT | 2 | 1402- | FVZ | M6X16 FLANGE ; PARKING BRAKE - BRAKE LOCK | ||
| 150 | I0-28651 030-0 | BOLT; BUZZER BRK LK | 1 | 1402- | FVZ | M10X30 FLANGE ; PARKING BRAKE - BRAKE LOCK | ||
| 068 | I0-28650 616-0 | BOLT; BRKT | 1 | 1104- | ALL | M6X16 FLANGE | ||
| 234 | I8-97328 058-1 | SENSOR; VEHICLE SPD | 1 | 1310- | ALL | 25 PULSE ALUMINUM | ||
| 766 | I5-09707 031-1 | BAND; CLIP | 1 | 1104- | ALL | L=140 | ||
| 420 | I8-94122 971-0 | PLUG; SWITCH | 1 | 1104- | ALL | OD=35 | ||
| 221 | I8-98029 915-2 | COVER; HOLE,DOOR LOCK SW | 1 | 1104- | ALL | |||
| 264 | I8-98246 453-0 | BRACKET; CONT UNIT | 1 | 1312-1403 | GVZ | |||
| 765 | I1-82550 315-0 | CONTROL UNIT; BRAKE LOCK | 1 | 1402- | FVZ | PARKING BRAKE - BRAKE LOCK | ||
| 021 | I8-98025 954-1 | COVER; HOLE | 1 | 1104- | ALL | |||
| 067 | I8-98048 743-1 | BRACKET; CONT UNIT | 1 | 1402- | FVZ | PARKING BRAKE - BRAKE LOCK |
