8-28 | CHASSIS ELECTRICAL
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

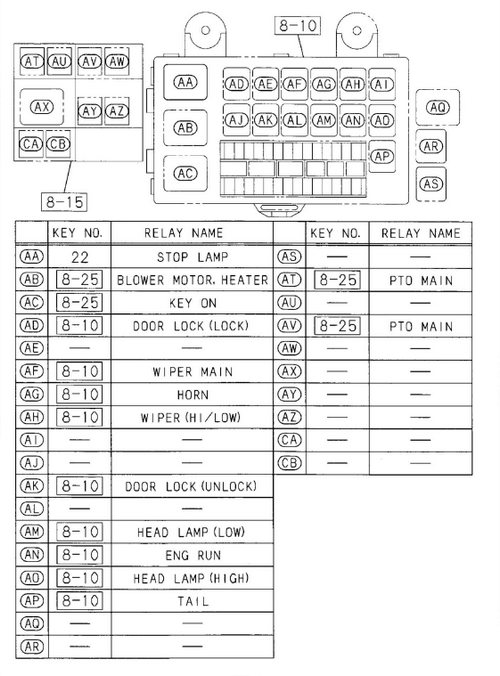

| 022 | I8-97262 933-0 | RELAY; STOP LAMP | 1 | 1104- | ALL | 24V 12.5A | ||
| 088 | I1-09660 956-0 | CONNECTOR; MAG VLV | 2 | 1104- | GVZ | (A) DIN8 & R1/4 ELBOW | ||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 1104- | ALL | M6 FLANGE | ||

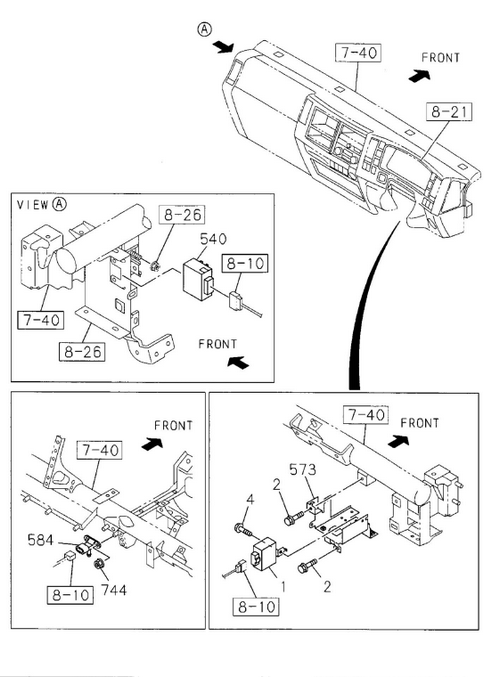

| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 1104- | ALL | |||
| 041 | I0-91180 108-0 | NUT; BRKT,MAG VLV | 2 | 1104- | FVZ | M8 FLANGE ; PTO CONTROL | ||
| 088 | I1-09650 430-0 | CONNECTOR; MAG VLV | 1 | 1104- | FVZ | (C) M12 & PT1/4 ELBOW | ||
| 282 | I8-98184 201-A | BRACKET; MAG VLV | 1 | 1104- | FVZ | PTO CONTROL | ||
| 349 | I6-97173 035-0 | RELAY; BRK LK | 2 | 1402- | FVZ | (IADG) 24V 10A ; PARKING BRAKE - BRAKE LOCK | ||
| 261 | I9-99204 513-0 | PLUG; MAG VLV | 1 | 1104- | FVZ | PT1/4 ; PTO CONTROL | ||
| 088 | I1-09661 067-0 | CONNECTOR; MAG VLV | 1 | 1310- | FVZ | (C) DIN6 & R1/4 ELBOW | ||
| 079 | I0-28650 820-0 | BOLT; MAG VLV | 2 | 1104- | ALL | M8X20 FLANGE | ||
| 050 | I8-97613 300-2 | BRACKET; HORN | 1 | 1104- | ALL | |||
| 066 | I0-91180 108-0 | NUT; SOCKET FIX | 2 | 1404- | GVZ | M8 FLANGE | ||
| 091 | I0-91180 108-0 | NUT; MAG VLV | 2 | 1104- | ALL | M8 FLANGE | ||
| 088 | I8-98179 708-0 | CONNECTOR; MAG VLV | 1 | 1104- | ALL | (B) DIN8X2 & PT1/4 DOUBLE ELBOW | ||
| 299 | I1-82523 014-0 | SOCKET; PARKING | 1 | 1404- | GVZ | 7P | ||
| 088 | I1-09656 586-1 | CONNECTOR; MAG VLV | 1 | 1404- | GVZ | (D) M12 & PT1/4 3WAY | ||
| 573 | I8-98246 458-0 | BRACKET; FLASHER UNIT | 1 | 1312-1403 | ALL | |||
| 001 | I8-97613 970-1 | UNIT; FLASHER | 1 | 1404- | GVZ | |||
| 045 | I7-43600 341-A | HORN; LOW NOTE | 1 | 1104- | ALL | |||
| 480 | I8-98010 858-0 | SWITCH; TRAILER COCK | 1 | 1404- | GVZ | STAMP 2.2 | ||

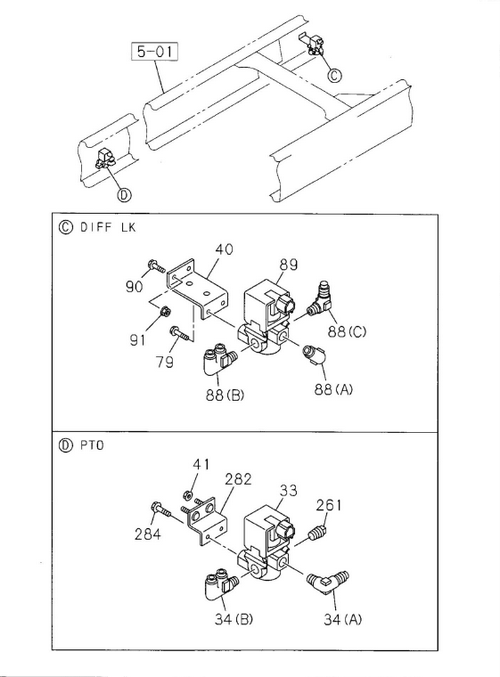

| 089 | I8-97641 594-0 | VALVE; MAG,DIFF LOCK | 1 | 1206- | ALL | |||
| 090 | I0-28650 835-0 | BOLT; MAG VLV | 2 | 1104- | ALL | M8X35 FLANGE | ||

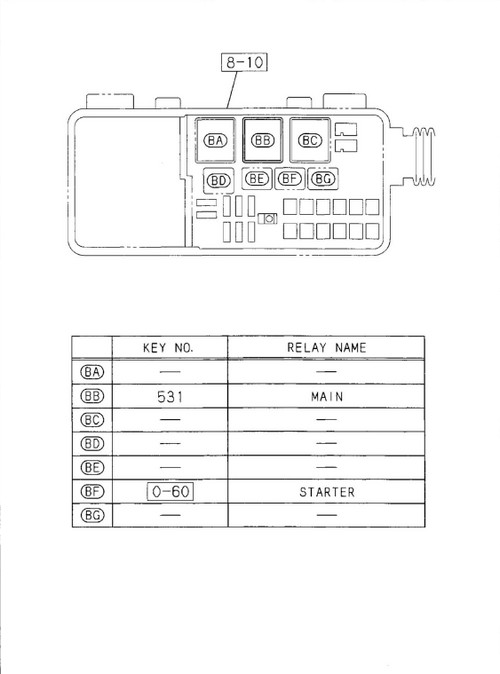

| 531 | I8-98259 779-0 | RELAY; MAIN | 1 | 1403- | ALL | 24V 30A | ||
| 004 | I0-28650 616-0 | SCREW; FLASHER UNIT | 1 | 1104- | ALL | BOLT M6X16 FLANGE | ||
| 349 | I8-97173 035-1 | RELAY; BRK LK | 2 | 1402- | FVZ | 24V 10A ; PARKING BRAKE - BRAKE LOCK | ||
| 040 | I1-47471 374-1 | BRACKET; MAG VLV | 1 | 1104- | ALL | |||
| 001 | I8-98025 533-A | UNIT; FLASHER | 1 | 1104- | FVZ | |||
| 033 | I8-97948 152-0 | VALVE; MAG,PTO CONT | 1 | 1312- | FVZ | PTO CONTROL | ||
| 034 | I1-09650 430-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 1104- | FVZ | (A) M12 & PT1/4 ELBOW ; PTO CONTROL | ||
| 051 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 1104- | ALL | M8X20 W/LK&PL WASHER | ||
| 065 | I0-28650 825-0 | BOLT; SOCKET FIX | 2 | 1404- | GVZ | M8X25 FLANGE | ||
| 573 | I8-98231 462-0 | BRACKET; FLASHER UNIT | 1 | 1301- | ALL | |||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 1309- | ALL | |||
| 284 | I0-28650 820-0 | BOLT; MAG VLV | 2 | 1104- | FVZ | M8X20 FLANGE ; PTO CONTROL | ||
| 754 | I8-97262 933-0 | RELAY; TRAILER STOP | 1 | 1404- | GVZ | 24V 12.5A | ||
| 002 | I0-28650 616-0 | BOLT; FLASHER UNIT | 2 | 1104- | ALL | M6X16 FLANGE | ||
| 088 | I1-09661 379-0 | CONNECTOR; MAG VLV | 1 | 1404- | GVZ | (E) DIN6 & M12 STRAIGHT | ||
| 034 | I8-98179 708-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 1104- | FVZ | (B) DIN8X2 & PT1/4 DOUBLE ELBOW ; PTO CONTROL |
