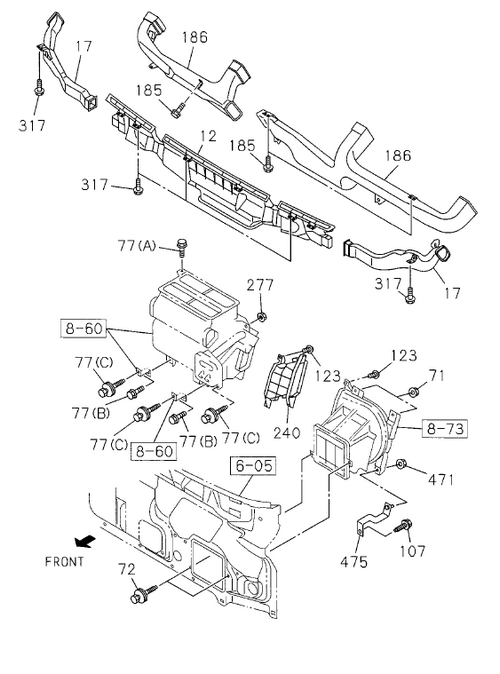

| 077 |
I0-28650 620-0 |
|
BOLT; HTR UNIT |
2 |
1104- |
|
ALL |
(B) M6X20 FLANGE |
| 225 |
I1-76798 029-0 |
|
SEAL; WATER |
1 |
1304- |
|
ALL |
OD=25 |
| 223 |

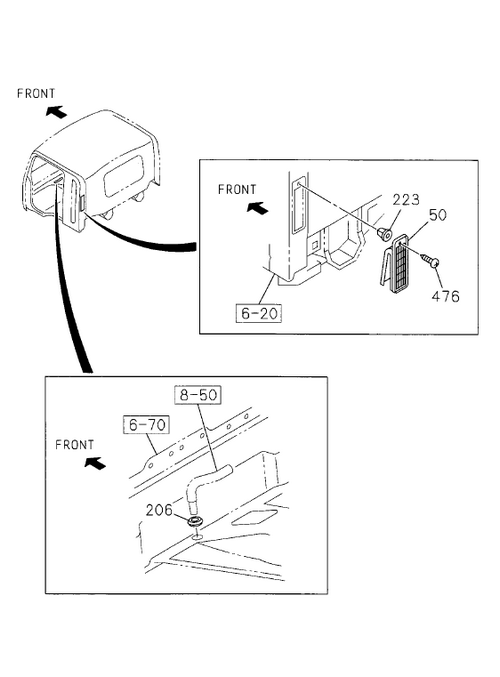

I8-94441 539-0 |
|
GROMMET; SCREW |
1 |
1104- |
|
ALL |
D=7.9X7.9 L=20 M5 |
| 050 |
I8-98080 998-2 |
|
VALVE ASM; HTR |
1 |
1104- |
|
ALL |
|
| 077 |
I0-28650 616-0 |
|
BOLT; HTR UNIT |
1 |
1104- |
|
ALL |
(A) M6X16 FLANGE |
| 317 |
I0-72180 516-0 |
|
SCREW; DEFROSTER NOZZLE |
8 |
1104- |
|
ALL |
M5X16 TAPPING HEXALOBULAR |
| 123 |
I0-72180 516-0 |
|
SCREW; DUCT |
4 |
1104- |
|
ALL |
M5X16 TAPPING HEXALOBULAR |
| 206 |
I8-98019 649-0 |
|
GROMMET; A/C PIPE TO BLOWER UNIT |
1 |
1104- |
|
ALL |
|
| 012 |
I8-98040 009-3 |
|
NOZZLE; DEFROSTER |
1 |
1104- |
|
ALL |
|
| 185 |
I0-72180 516-0 |
|
SCREW; VENT DUCT |
4 |
1104- |
|
ALL |
M5X16 TAPPING HEXALOBULAR |
| 071 |
I0-91180 106-0 |
|
NUT; BLOWER UNIT TO DASH |
2 |
1104- |
|
ALL |
M6 FLANGE |
| 017 |
I8-98040 013-1 |
|
NOZZLE; DEFROSTER,SIDE |
1 |
1104- |
|
ALL |
|
| 077 |
I8-98081 175-0 |
|
BOLT; HTR UNIT |
2 |
1104-1301 |
|
ALL |
(C) M6X20 W/LK&PL WASHER |
| 240 |
I8-98041 402-1 |
|
DUCT; AIR,HTR |
1 |
1104- |
|
ALL |
|
| 475 |
I8-98043 500-1 |
|
BRACKET; BLOWER |
1 |
1104- |
|
ALL |
|
| 017 |
I8-98040 018-1 |
|
NOZZLE; DEFROSTER,SIDE |
1 |
1104- |
|
ALL |
|
| 277 |
I0-91180 106-0 |
|
NUT; HTR |
1 |
1104- |
|
ALL |
M6 FLANGE |
| 186 |
I8-98285 574-0 |
|
DUCT; VENTILATOR |
1 |
1104-1410 |
|
ALL |
|
| 186 |
I8-98285 571-0 |
|
DUCT; VENTILATOR |
1 |
1104-1410 |
|
ALL |
|
| 107 |
I8-98018 439-0 |
|
BOLT; STAY,HTR UNIT |
1 |
1104- |
|
ALL |
M8X25 W/LK&PL WASHER |
| 471 |
I0-91180 106-0 |
|
NUT; BLOWER |
1 |
1104- |
|
ALL |
M6 FLANGE |
| 476 |
I8-98062 675-0 |
|
SCREW; VALVE |
1 |
1104- |
|
ALL |
M5X16 TAPPING HEXALOBULAR |
| 072 |
I8-98081 175-0 |
|
BOLT; BLOWER UNIT |
2 |
1104- |
|
ALL |
M6X20 W/LK&PL WASHER |
| 050 |
I8-97925 112-0 |
|
VALVE ASM; HTR |
1 |
1312-1403 |
|
ALL |
|
