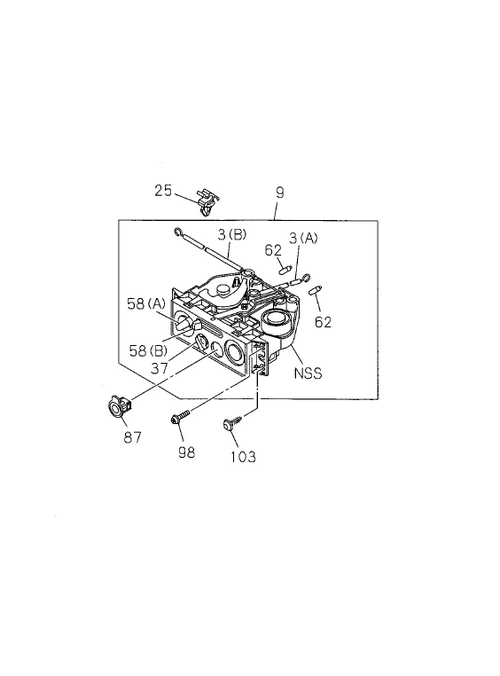

8-65 | CONTROL LEVER; HEATER AND AIR CON
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 058 | I8-97926 675-0 | KNOB; LVR,HTR CONT LVR | 1 | 1402-1403 | ALL | (C) | ||
| 062 | I8-97926 676-0 | BULB; HTR CONT LVR | 1 | 1402-1403 | ALL | |||
| 087 | I8-98006 089-0 | CAP; A/C SWITCH | 1 | 1104- | ALL | |||
| 009 | I8-98062 807-1 | LEVER ASM; HTR & A/C CONT | 1 | 1104- | ALL | WITH KNOB CONTROL | ||
| 037 | I8-98037 368-0 | KNOB; SW,HTR CONT LVR | 1 | 1104- | ALL | |||
| 103 | I8-97151 251-0 | CLIP | 1 | 1104- | ALL | |||
| 003 | I8-98041 503-1 | CABLE; HTR CONT LVR | 1 | 1104- | ALL | (A) MODE | ||
| 058 | I8-98037 370-0 | KNOB; LVR,HTR CONT LVR | 1 | 1104- | ALL | (B) | ||
| 098 | I0-72180 520-0 | SCREW; CONT PANEL | 1 | 1104- | ALL | M5X20 TAPPING HEXALOBULAR | ||
| 009 | I8-98255 068-0 | LEVER ASM; HTR & A/C CONT | 1 | 1402-1403 | ALL | W/O KNOB CONTROL | ||
| 003 | I8-98041 505-2 | CABLE; HTR CONT LVR | 1 | 1104- | ALL | (B) RECIRC/FRESH | ||
| 003 | I8-97927 125-0 | CABLE; HTR CONT LVR | 1 | 1402-1403 | ALL | (C) RECIRC/FRESH | ||
| 062 | I8-98037 371-0 | BULB; HTR CONT LVR | 2 | 1104- | ALL | 12V 1.1W | ||
| 025 | I1-73907 618-0 | CLIP; CABLE,CONT LEVER | 3 | 1104- | ALL | ID=4.8 | ||
| 058 | I8-98037 369-0 | KNOB; LVR,HTR CONT LVR | 1 | 1104- | ALL | (A) | ||
| 037 | I8-97926 674-0 | KNOB; SW,HTR CONT LVR | 1 | 1402-1403 | ALL |
