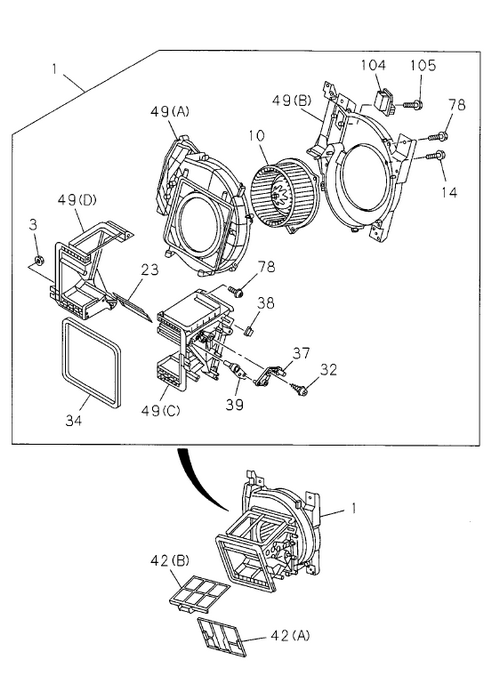

8-73 | BLOWER UNIT
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 023 | I8-98188 478-0 | SHUTTER; BLOWER UNIT | 1 | 1104- | ALL | |||
| 105 | I8-97957 708-0 | SCREW; RESISTOR | 2 | 1104- | ALL | M4X16 TAPPING | ||
| 049 | I8-98077 414-0 | CASE; BLOWER UNIT | 1 | 1104- | ALL | (C) | ||
| 001 | I8-98171 720-0 | BLOWER ASM | 1 | 1104- | ALL | |||
| 003 | I1-83539 354-0 | NUT; CASE | 2 | 1104- | ALL | M6 | ||
| 104 | I8-98074 113-0 | RESISTOR; BLOWER UNIT | 1 | 1104- | ALL | |||
| 034 | I8-98096 453-0 | LINING; BLOWER UNIT | 1 | 1104- | ALL | |||
| 039 | I8-98047 435-0 | LEVER; SHUTTER,BLOWER UNIT | 1 | 1104- | ALL | |||
| 078 | I8-97957 708-0 | SCREW; CASE TO CASE | 15 | 1104- | ALL | M4X16 TAPPING | ||
| 042 | I8-98025 006-1 | FILTER; BLOWER UNIT | 1 | 1104- | ALL | (B) | ||
| 032 | I8-98047 416-0 | SCREW; LEVER | 1 | 1104- | ALL | M4X16 | ||
| 038 | I8-98047 417-0 | CLIP; BLOWER UNIT | 1 | 1104- | ALL | |||
| 049 | I8-98047 440-0 | CASE; BLOWER UNIT | 1 | 1104- | ALL | (B) | ||
| 010 | I8-98183 924-0 | MOTOR ASM; FAN,BLOWER UNIT | 1 | 1104- | ALL | |||
| 049 | I8-98077 413-0 | CASE; BLOWER UNIT | 1 | 1104- | ALL | (D) | ||
| 042 | I8-98041 327-0 | FILTER; BLOWER UNIT | 1 | 1104- | ALL | (A) | ||
| 037 | I8-98047 436-0 | LEVER; MODE LEVER | 1 | 1104- | ALL | |||
| 049 | I8-98047 441-0 | CASE; BLOWER UNIT | 1 | 1104- | ALL | (A) | ||
| 014 | I8-98047 448-0 | SCREW; COVER TO CASE | 3 | 1104- | ALL | M5X16 |
