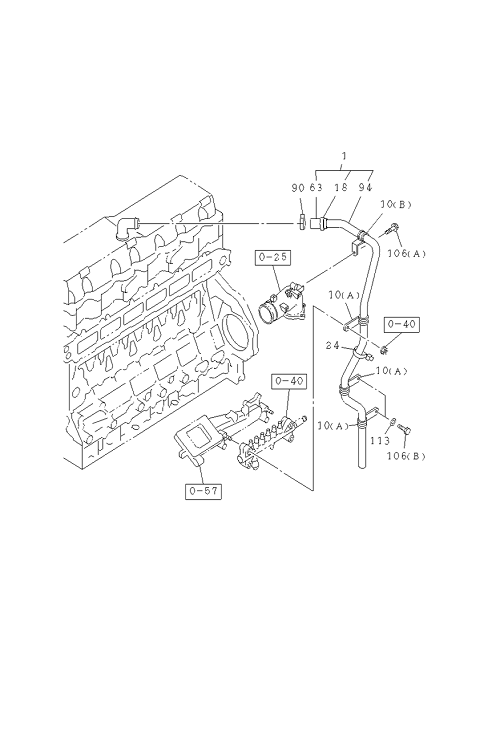

0-28 | VENTILATION SYSTEM
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 094 | I8-94392 082-0 | HOSE; BREATHER TO PIPE | 1 | 1706- | FVM | L=1260 | ||
| 106 | I0-28151 016-0 | BOLT; DRAIN PIPE | 2 | 1706- | FVM | (B) M10X16 | ||
| 018 | I8-98133 958-0 | CLIP; RUBBER HOSE,AIR BREATHER | 1 | 1706- | FVM | ID=33.6 | ||
| 113 | I0-91610 510-0 | WASHER; PL,CLIP | 2 | 1706- | FVM | ID=10.5 | ||
| 063 | I0-02728 070-0 | HOSE; RUBBER,AIR BREATHER | 1 | 1706- | FVM | L=70 | ||
| 024 | I8-98216 430-0 | CLIP; RUBBER HOSE,VENTILATOR | 1 | 1706- | FVM | L=250 | ||
| 001 | I8-94392 083-3 | BREATHER; AIR | 1 | 1706- | FVM | |||
| 090 | I8-98133 958-0 | CLIP; RUBBER HOSE | 1 | 1706- | FVM | ID=33.6 | ||
| 010 | I1-09700 994-0 | CLIP; AIR BREATHER | 1 | 1706- | FVM | (B) ID=31 H=30 L=35 | ||
| 106 | I0-28050 612-0 | BOLT; DRAIN PIPE | 1 | 1706- | FVM | (A) M6X12 | ||
| 010 | I1-09700 704-1 | CLIP; AIR BREATHER | 3 | 1706- | FVM | (A) ID=32 L=75 |
