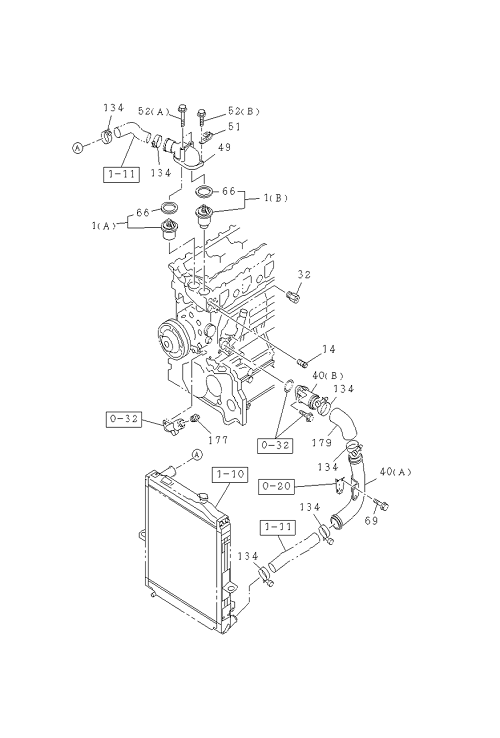

0-31 | THERMOSTAT AND HOUSING
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 052 | I0-28650 825-0 | BOLT; JOINT,THERMOSTAT | 2 | 1706- | FVM | (B) M8X25 | ||
| 001 | I8-98295 921-0 | THERMOSTAT | 1 | 1706- | FVM | (B) 82 CELSIUS | ||
| 049 | I8-97602 047-0 | PIPE; WATER OUTLET | 1 | 1706- | FVM | |||
| 052 | I0-28050 880-0 | BOLT; JOINT,THERMOSTAT | 2 | 1706- | FVM | (A) M8X80 | ||
| 032 | I8-98177 501-0 | CONNECTOR; HTR | 1 | 1706- | FVM | |||
| 179 | I8-94390 400-A | HOSE; RUBBER,WATER DUCT | 1 | 1706- | FVM | |||
| 051 | I8-97367 985-1 | CLIP; JOINT,THERMOSTAT | 1 | 1706- | FVM | ID=18 L=44 | ||
| 001 | I8-97602 048-3 | THERMOSTAT | 1 | 1706- | FVM | (A) 82 CELSIUS | ||
| 040 | I8-94391 091-1 | DUCT; WATER,SUCTION | 1 | 1706- | FVM | (B) | ||
| 134 | I9-09915 265-A | CLIP; RUBBER HOSE | 2 | 1706- | FVM | ID=63 | ||
| 066 | I8-98280 281-0 | GASKET; THERMOSTAT HSG | 2 | 1706- | FVM | ID=49.5 OD=56.5 | ||
| 177 | I9-09663 001-0 | PLUG; PIPE,WATER DUCT | 1 | 1706- | FVM | PT1/2 | ||
| 040 | I8-94394 404-A | DUCT; WATER,SUCTION | 1 | 1706- | FVM | (A) | ||
| 134 | I9-09915 265-A | CLIP; RUBBER HOSE | 4 | 1706- | FVM | ID=63 | ||
| 014 | I8-94397 338-0 | PLUG; SW | 1 | 1706- | FVM | PT3/8 | ||
| 069 | I0-28650 820-0 | BOLT; DUCT,WATER OUTLET | 2 | 1706- | FVM | M8X20 |
