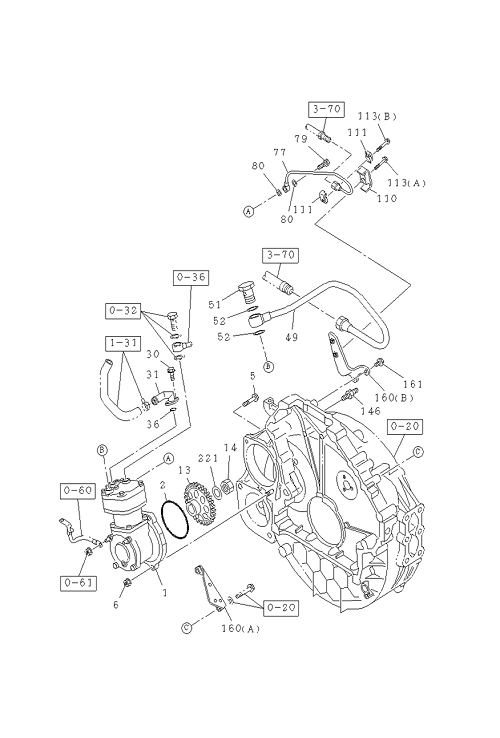

0-38 | AIR COMPRESSOR PIPING; ENGINE SIDE
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 052 | I9-09571 424-0 | GASKET; EYE BOLT,AIR PIPE | 2 | 1706- | FVM | ID=24.5 OD=32 | ||
| 031 | I8-97620 948-0 | PIPE; AIR,AIR CMPR SUCTION | 1 | 1706- | FVM | |||
| 113 | I0-28050 640-0 | BOLT; CLIP,AIR PIPE | 1 | 1706- | FVM | (A) M6X40 | ||
| 113 | I0-28650 640-0 | BOLT; CLIP,AIR PIPE | 1 | 1706- | FVM | (B) M6X40 | ||
| 001 | I8-98187 301-1 | COMPRESSOR ASM; AIR | 1 | 1706- | FVM | |||
| 160 | I8-97614 182-2 | BRACKET; AIR PIPE | 1 | 1706- | FVM | (A) | ||
| 014 | I0-91110 520-0 | NUT; GEAR | 1 | 1706- | FVM | M20 | ||
| 110 | I8-94393 037-0 | CLIP; AIR PIPE | 1 | 1706- | FVM | |||
| 221 | I0-91610 520-0 | WASHER; PL,GEAR | 1 | 1706- | FVM | ID=21 | ||
| 161 | I0-28050 816-0 | BOLT; BRKT,AIR PIPE | 2 | 1706- | FVM | M8X16 | ||
| 146 | I1-09049 038-1 | STUD; AIR CMPR | 1 | 1706- | FVM | M10X16,M12X70 L=97.7 | ||
| 049 | I8-97618 723-0 | PIPE; AIR,CHARGE | 1 | 1706- | FVM | |||
| 005 | I0-28151 270-0 | BOLT; AIR CMPR FIX | 2 | 1706- | FVM | M12X70 | ||
| 030 | I0-28650 820-0 | BOLT; PIPE CLIP | 2 | 1706- | FVM | M8X20 | ||
| 006 | I0-91180 212-0 | NUT; AIR CMPR | 1 | 1706- | FVM | M12 | ||
| 079 | I8-98037 824-0 | BOLT; EYE,AIR PIPE TO CMPR | 1 | 1706- | FVM | M10X23 | ||
| 002 | I1-09623 570-0 | GASKET; AIR CMPR | 1 | 1706- | FVM | ID=162 | ||
| 013 | I8-94394 511-4 | GEAR; AIR CMPR DRIVE | 1 | 1706- | FVM | Z=49 | ||
| 077 | I8-97618 725-0 | PIPE; AIR,GOV | 1 | 1706- | FVM | |||
| 111 | I8-98029 953-1 | CLIP; AIR PIPE | 2 | 1706- | FVM | ID=5.5 L=10.5 | ||
| 051 | I1-09675 175-2 | BOLT; EYE,AIR PIPE TO CMPR | 1 | 1706- | FVM | M24X39 | ||
| 036 | I1-09623 057-0 | GASKET; AIR PIPE TO AIR CMPR | 1 | 1706- | FVM | ID=24.4 | ||
| 160 | I8-98074 255-0 | BRACKET; AIR PIPE | 1 | 1706- | FVM | (B) | ||
| 080 | I1-09630 083-0 | GASKET; AIR PIPE TO CMPR | 2 | 1706- | FVM | ID=10.2 OD=15.2 |
