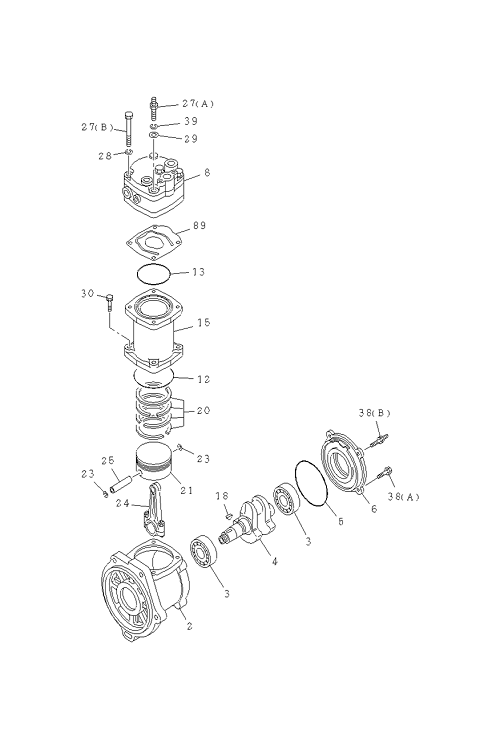

0-39 | AIR COMPRESSOR; BRAKE
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 018 | I9-08055 516-0 | KEY; AIR CMPR | 1 | 1706- | FVM | |||
| 023 | I1-19169 004-0 | RING; SNAP,PISTON,AIR CMPR | 2 | 1706- | FVM | |||
| 028 | I8-97613 694-0 | WASHER; LK,HD BOLT | 1 | 1706- | FVM | |||
| 025 | I9-19167 003-0 | PIN; PISTON,AIR CMPR | 1 | 1706- | FVM | |||
| 038 | I8-97617 310-0 | BOLT; COVER FIX | 2 | 1706- | FVM | (B) | ||
| 039 | I8-97613 694-0 | WASHER; LK,COVER FIX | 2 | 1706- | FVM | |||
| 029 | I8-97613 686-0 | WASHER; PL,HD BOLT | 1 | 1706- | FVM | |||
| 038 | I8-97613 704-0 | BOLT; COVER FIX | 2 | 1706- | FVM | (A) M10X30 | ||
| 003 | I1-09800 268-0 | BEARING; AIR CMPR | 2 | 1706- | FVM | |||
| 006 | I8-97614 058-1 | COVER ASM; BRG,AIR CMPR | 1 | 1706- | FVM | |||
| 013 | I8-98048 640-0 | GASKET; AIR CMPR | 1 | 1706- | FVM | |||
| 027 | I8-98167 018-0 | BOLT; HD | 3 | 1706- | FVM | (B) M10X75 | ||
| 004 | I8-97614 059-1 | CRANKSHAFT; AIR CMPR | 1 | 1706- | FVM | |||
| 020 | I8-97522 052-0 | RING KIT; PISTON,AIR CMPR | 1 | 1706- | FVM | |||
| 015 | I8-97614 056-0 | CYLINDER; AIR CMPR | 1 | 1706- | FVM | |||
| 027 | I8-97614 054-0 | BOLT; HD | 1 | 1706- | FVM | (A) | ||
| 021 | I1-19161 027-0 | PISTON; AIR CMPR | 1 | 1706- | FVM | |||
| 089 | I1-19119 045-0 | VALVE; SUCTION | 1 | 1706- | FVM | |||
| 024 | I8-97614 057-0 | ROD ASM; CONN,AIR CMPR | 1 | 1706- | FVM | |||
| 002 | I8-97614 060-1 | CRANKCASE; AIR CMPR | 1 | 1706- | FVM | |||
| 005 | I8-98192 463-0 | GASKET; AIR CMPR | 1 | 1706- | FVM | |||
| 030 | I8-97613 704-0 | BOLT; CYL TO CRANKCASE | 4 | 1706- | FVM | M10X30 | ||
| 008 | I8-98167 013-0 | HEAD ASM; CYL,AIR CMPR | 1 | 1706- | FVM | |||
| 012 | I8-98048 641-0 | GASKET; AIR CMPR | 1 | 1706- | FVM |
