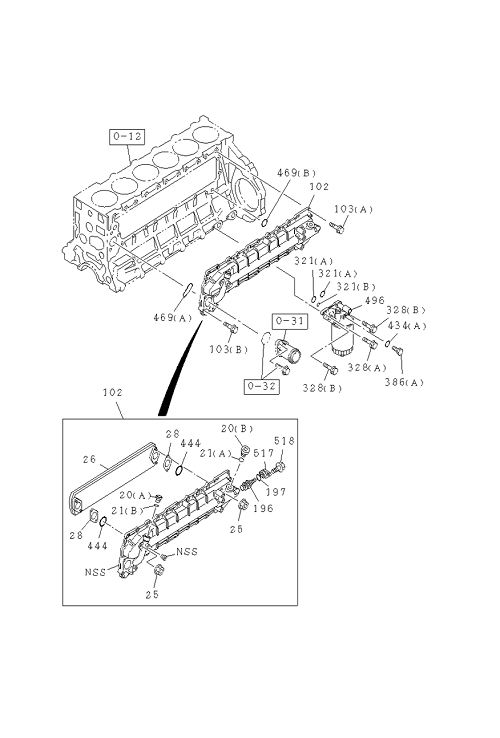

0-50 | OIL COOLER AND OIL FILTER
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 102 | I8-97600 156-1 | COOLER ASM; OIL | 1 | 1706- | FVM | |||
| 444 | I8-94396 810-0 | GASKET; ELEMENT TO BODY | 2 | 1706- | FVM | |||
| 103 | I8-97365 376-0 | BOLT; OIL COOLER | 24 | 1706- | FVM | (A) M8X22 | ||
| 265 | I8-98238 939-0 | BODY; OIL FILTER | 1 | 1706- | FVM | |||
| 021 | I1-09623 499-0 | GASKET; PLUG | 1 | 1706- | FVM | (B) | ||
| 517 | I8-94391 740-0 | PLUG; THERMOSTAT,OIL COOLER | 1 | 1706- | FVM | |||
| 434 | I1-09630 083-0 | GASKET; PLUG,OIL FILTER | 1 | 1706- | FVM | (A) ID=10.2 OD=15.2 | ||
| 002 | I8-94396 375-4 | ELEMENT; OIL FILTER | 1 | 1706- | FVM | |||
| 013 | I8-98238 944-0 | VALVE; RELIEF | 1 | 1706- | FVM | |||
| 020 | I8-94393 604-0 | PLUG; COOLER BODY | 1 | 1706- | FVM | (A) | ||
| 321 | I8-94399 399-0 | GASKET; OIL FILTER TO C/BL | 2 | 1706- | FVM | (A) ID=22.1 | ||
| 518 | I0-28050 816-0 | BOLT; PLUG,THERMOSTAT | 2 | 1706- | FVM | M8X16 | ||
| 026 | I8-94391 738-1 | CORE ASM; OIL COOLER | 1 | 1706- | FVM | |||
| 025 | I1-13219 324-0 | NUT; CORE TO BODY | 4 | 1706- | FVM | M10 | ||
| 469 | I8-94399 002-0 | GASKET; OIL COOLER TO C/BL | 1 | 1706- | FVM | (A) | ||
| 434 | I8-98238 942-0 | GASKET; PLUG,OIL FILTER | 1 | 1706- | FVM | (B) | ||

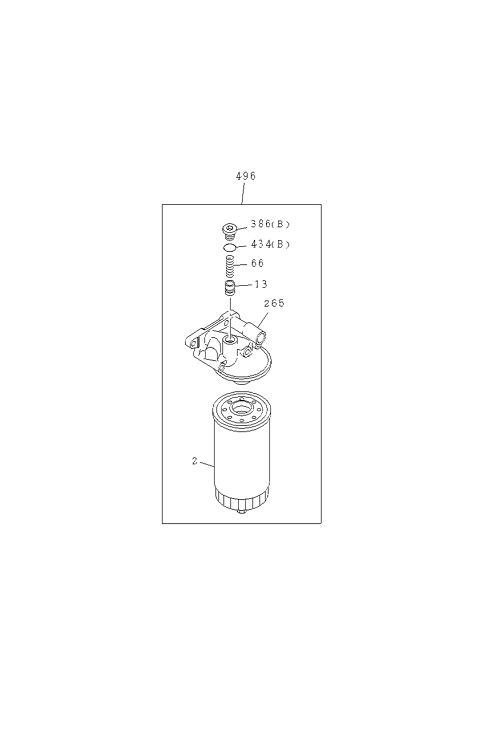

| 496 | I8-98236 649-0 | FILTER ASM; OIL | 1 | 1706- | FVM | |||
| 469 | I8-98045 449-0 | GASKET; OIL COOLER TO C/BL | 1 | 1706- | FVM | (B) ID=20 | ||
| 066 | I8-98238 943-0 | SPRING; VLV | 1 | 1706- | FVM | |||
| 028 | I8-94394 930-0 | GASKET; CORE TO BODY | 2 | 1706- | FVM | |||
| 328 | I0-28151 090-0 | BOLT; OIL FILTER | 2 | 1706- | FVM | (B) M10X90 | ||
| 002 | I8-94391 049-4 | ELEMENT; OIL FILTER | 1 | 1706- | FVM | |||
| 020 | I8-94396 753-0 | PLUG; COOLER BODY | 1 | 1706- | FVM | (B) | ||
| 103 | I0-28050 835-0 | BOLT; OIL COOLER | 3 | 1706- | FVM | (B) M8X35 | ||
| 002 | I6-94396 375-0 | ELEMENT; OIL FILTER | 1 | 1706- | FVM | (IADG) | ||
| 021 | I8-94396 755-0 | GASKET; PLUG | 1 | 1706- | FVM | (A) M24 | ||
| 386 | I0-28051 012-0 | PLUG; OIL FILTER | 1 | 1706- | FVM | (A) M10X10 | ||
| 321 | I8-94399 339-0 | GASKET; OIL FILTER TO C/BL | 1 | 1706- | FVM | (B) ID=9.8 | ||
| 196 | I8-97600 936-0 | THERMOSTAT; OIL COOLER | 1 | 1706- | FVM | 90 CELSIUS | ||
| 197 | I8-94399 279-0 | GASKET; THERMOSTAT | 1 | 1706- | FVM | ID=25.7 | ||
| 328 | I0-28151 030-0 | BOLT; OIL FILTER | 2 | 1706- | FVM | (A) M10X30 | ||
| 386 | I8-98238 941-0 | PLUG; OIL FILTER | 1 | 1706- | FVM | (B) |
