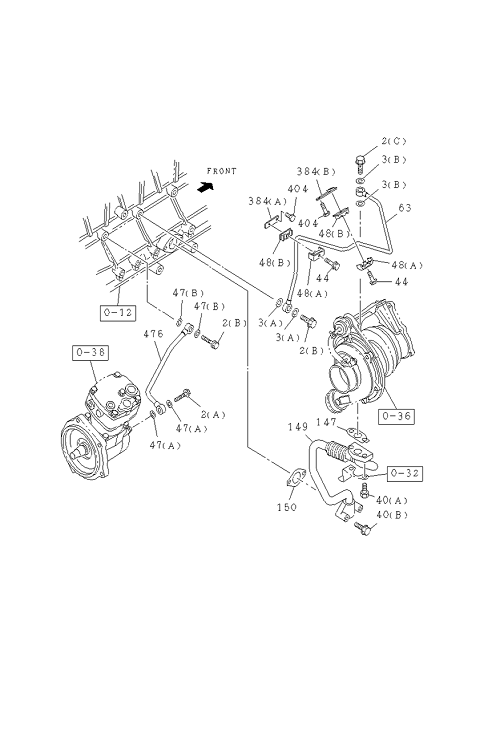

0-52 | OIL AND VACUUM PIPING; ENGINE
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 149 | I8-98147 092-0 | PIPE; OIL RETURN,TURBOCHARGER | 1 | 1706- | FVM | |||
| 002 | I1-09675 086-0 | BOLT; EYE,OIL PIPE | 2 | 1706- | FVM | (B) M14X27 EYE-BOLT | ||
| 048 | I1-09701 228-3 | CLIP; OIL PIPE | 2 | 1706- | FVM | (A) ID=7 & 9 L=25 | ||
| 002 | I5-09675 006-1 | BOLT; EYE,OIL PIPE | 1 | 1706- | FVM | (C) M12X25 EYE-BOLT | ||
| 384 | I1-13319 020-0 | BRACKET; CLIP,OIL PIPE,TURBOCHARGER | 1 | 1706- | FVM | (A) | ||
| 047 | I8-98251 345-0 | GASKET; OIL PIPE | 2 | 1706- | FVM | (B) ID=14.2 OD=19.2 | ||
| 040 | I0-28151 030-0 | BOLT; OIL PIPE | 2 | 1706- | FVM | (A) M10X30 | ||
| 048 | I1-09701 229-2 | CLIP; OIL PIPE | 2 | 1706- | FVM | (B) ID=7 & 9 L=25 | ||
| 040 | I0-28650 825-0 | BOLT; OIL PIPE | 2 | 1706- | FVM | (B) M8X25 | ||
| 002 | I8-97372 238-0 | BOLT; EYE,OIL PIPE | 1 | 1706- | FVM | (A) M10X21 EYE-BOLT | ||
| 044 | I0-28050 630-0 | BOLT; CLIP,OIL PIPE | 2 | 1706- | FVM | M6X30 | ||
| 404 | I1-09000 114-0 | BOLT; BRKT | 2 | 1706- | FVM | M8X15 | ||
| 047 | I1-09630 083-0 | GASKET; OIL PIPE | 2 | 1706- | FVM | (A) ID=10.2 OD=15.2 | ||
| 003 | I8-98251 344-0 | GASKET; EYE BOLT,OIL PIPE | 2 | 1706- | FVM | (B) ID=12.2 OD=17.2 | ||
| 150 | I8-94394 671-0 | GASKET; OIL PIPE TO C/BL | 1 | 1706- | FVM | ID=30 | ||
| 476 | I8-97610 075-0 | PIPE; OIL,C/BL TO AIR CMPR | 1 | 1706- | FVM | |||
| 384 | I1-13319 041-0 | BRACKET; CLIP,OIL PIPE,TURBOCHARGER | 1 | 1706- | FVM | (B) | ||
| 063 | I8-98074 254-0 | PIPE; OIL,TURBOCHARGER FEED | 1 | 1706- | FVM | |||
| 147 | I1-09637 058-2 | GASKET; OIL PIPE TO TURBOCHARGER | 1 | 1706- | FVM | ID=19 | ||
| 003 | I8-98251 345-0 | GASKET; EYE BOLT,OIL PIPE | 2 | 1706- | FVM | (A) ID=14.2 OD=19.2 |
