0-60 | ENGINE ELECTRICAL CONTROL PARTS
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

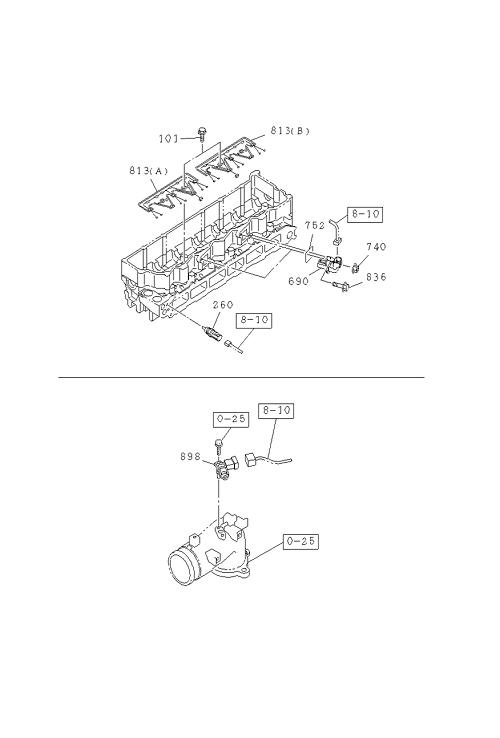

| 813 | I8-98204 717-0 | HARNESS; INJECTOR | 1 | 1706- | FVM | (A) FRONT | ||
| 690 | I8-94390 858-1 | CONNECTOR | 2 | 1706- | FVM | |||
| 017 | I0-91610 514-0 | WASHER; PL,GEN | 1 | 1706- | FVM | ID=15 | ||

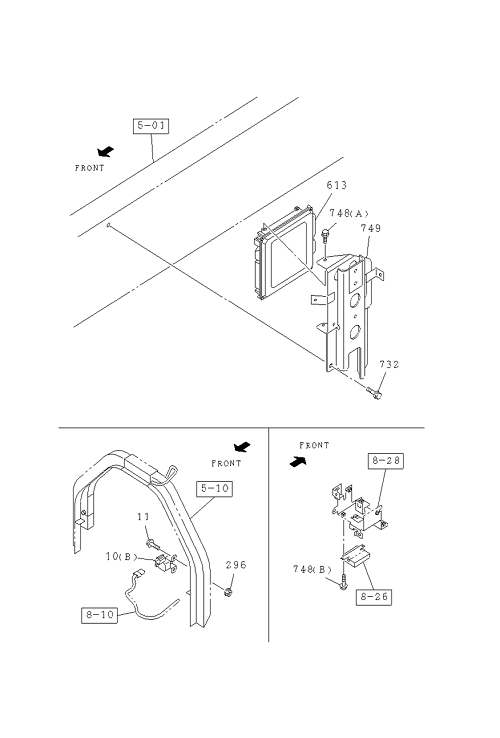

| 749 | I8-98271 964-1 | STAY; CONT UNIT | 1 | 1706- | FVM | |||
| 813 | I8-98204 718-0 | HARNESS; INJECTOR | 1 | 1706- | FVM | (B) REAR | ||
| 613 | I8-98315 774-1 | CONTROL UNIT; ENG | 1 | 1706- | FVM | 6HK1-TCS | ||
| 010 | I8-98167 173-0 | RELAY; STARTER | 1 | 1706- | FVM | (A) 24V 10A PANASONIC | ||

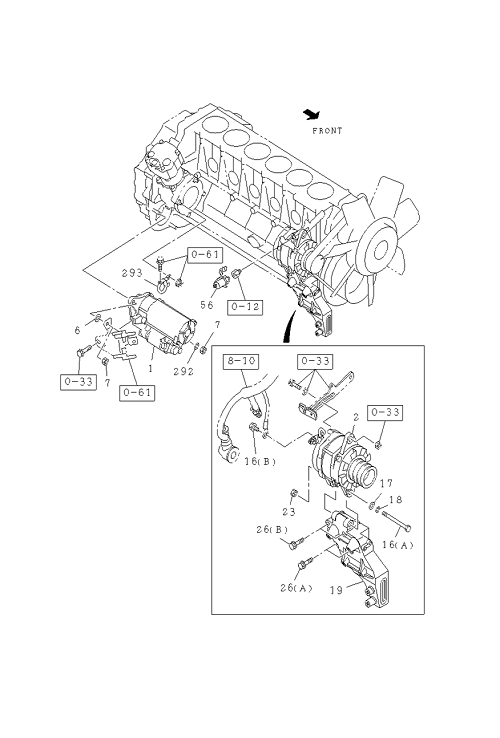

| 002 | I8-98314 430-1 | GENERATOR ASM | 1 | 1706- | FVM | 24V 60A MITSUBISHI | ||
| 006 | I0-91610 514-0 | WASHER; PL,STARTER | 1 | 1706- | FVM | ID=15 | ||
| 019 | I8-98082 615-1 | BRACKET; GEN | 1 | 1706- | FVM | |||
| 011 | I0-28650 820-0 | BOLT; RELAY STARTER | 2 | 1706- | FVM | M8X20 | ||
| 296 | I0-91180 108-0 | NUT; RELAY,STARTER | 2 | 1706- | FVM | M8 | ||
| 748 | I0-28650 616-0 | BOLT; CONT UNIT | 2 | 1706- | FVM | (B) M6X16 | ||
| 613 | I8-98344 156-1 | CONTROL UNIT; ENG | 1 | 1706- | FVM | 6HK1-TCN | ||
| 732 | I0-28651 030-0 | BOLT; BRKT | 3 | 1706- | FVM | M10X30 | ||
| 748 | I0-28050 612-0 | BOLT; CONT UNIT | 3 | 1706- | FVM | (A) M6X12 | ||
| 007 | I7-05014 012-A | NUT; STARTER | 2 | 1706- | FVM | M14 | ||
| 740 | I0-91180 108-0 | NUT | 2 | 1706- | FVM | M8 | ||
| 001 | I8-97695 240-A | STARTER ASM | 1 | 1706- | FVM | 24V 5.0KW NIKKO | ||
| 292 | I0-91510 514-0 | WASHER; LK,STARTER | 1 | 1706- | FVM | ID=14.2 | ||
| 056 | I1-82410 170-1 | SWITCH; OIL PRESSURE WARNING | 1 | 1706- | FVM | |||
| 016 | I0-28050 610-0 | BOLT; GEN | 1 | 1706- | FVM | (B) M6X10 | ||
| 836 | I0-28050 812-A | BOLT; CONNECTOR | 2 | 1706- | FVM | M8X12 | ||
| 026 | I0-28151 080-0 | BOLT; GEN BRKT | 2 | 1706- | FVM | (B) M10X80 | ||
| 101 | I0-28650 840-0 | BOLT; HARNESS | 4 | 1706- | FVM | M8X40 | ||
| 002 | I8-97799 445-0 | GENERATOR ASM | 1 | 1706- | FVM | 24V 60A MITSUBISHI | ||
| 260 | I8-98260 257-0 | SENSOR; WATER TEMP | 1 | 1706- | FVM | NISHIDA | ||
| 293 | I8-98315 638-1 | CABLE; STARTER EARTH | 1 | 1706- | FVM | |||
| 752 | I8-94391 310-0 | GASKET | 2 | 1706- | FVM | |||
| 018 | I0-91510 514-0 | WASHER; LK,GEN | 1 | 1706- | FVM | ID=14.2 | ||
| 023 | I7-05014 012-A | NUT; GEN | 1 | 1706- | FVM | M14 | ||
| 898 | I8-98009 418-0 | SENSOR; BOOST | 1 | 1706- | FVM | |||
| 016 | I1-09000 133-1 | BOLT; GEN | 1 | 1706- | FVM | (A) M14X135 | ||
| 010 | I8-98005 631-1 | RELAY; STARTER | 1 | 1706- | FVM | (B) 24V NIKKO | ||
| 026 | I0-28151 040-0 | BOLT; GEN BRKT | 2 | 1706- | FVM | (A) M10X40 |
