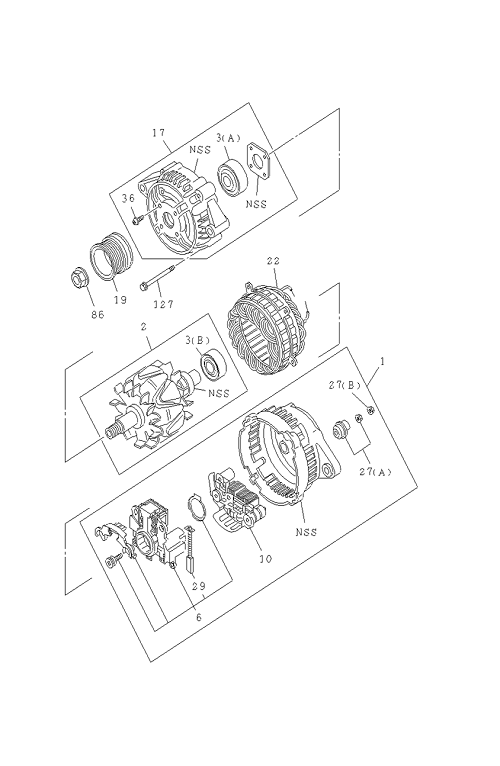

0-66 | GENERATOR
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 017 | I8-98382 398-0 | COVER ASM; FRT,GEN | 1 | 1706- | FVM | |||
| 002 | I8-98273 815-0 | ROTOR; GEN | 1 | 1706- | FVM | |||
| 006 | I8-98382 409-0 | REGULATOR ASM; VOLTAGE,GEN | 1 | 1706- | FVM | |||
| 036 | I8-97178 136-0 | SCREW; FRT COVER | 1 | 1706- | FVM | |||
| 029 | I8-98273 826-0 | BRUSH; GEN | 1 | 1706- | FVM | |||
| 027 | I8-98273 824-0 | NUT; RECTIFIER,GEN | 1 | 1706- | FVM | (A) | ||
| 027 | I1-81229 821-0 | NUT; RECTIFIER,GEN | 1 | 1706- | FVM | (B) | ||
| 003 | I8-98273 814-0 | BEARING; ROTOR,GEN | 1 | 1706- | FVM | (A) | ||
| 022 | I8-98273 818-0 | STATOR; GEN | 1 | 1706- | FVM | |||
| 003 | I8-98273 817-0 | BEARING; ROTOR,GEN | 1 | 1706- | FVM | (B) | ||
| 010 | I8-98273 822-0 | RECTIFIER; GEN | 1 | 1706- | FVM | |||
| 127 | I8-97145 328-0 | BOLT SET; GEN | 1 | 1706- | FVM | |||
| 019 | I8-98382 412-0 | PULLEY; GEN | 1 | 1706- | FVM | |||
| 001 | I8-98382 399-0 | COVER ASM; RR,GEN | 1 | 1706- | FVM | |||
| 086 | I8-97145 327-0 | NUT SET; PULLEY,GEN | 1 | 1706- | FVM |
