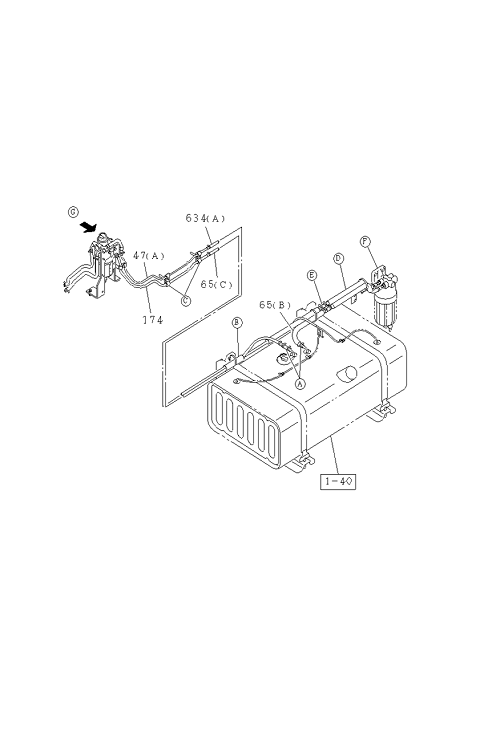

1-41 | FUEL PIPING; CHASSIS
GIGA
NEW GIGA FVM

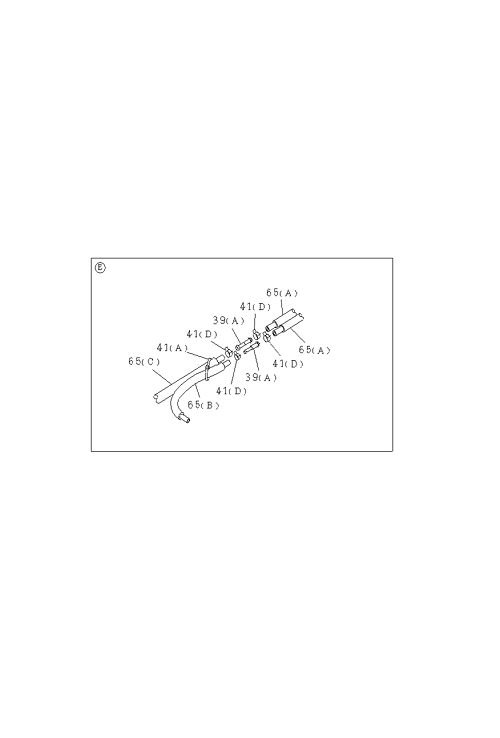

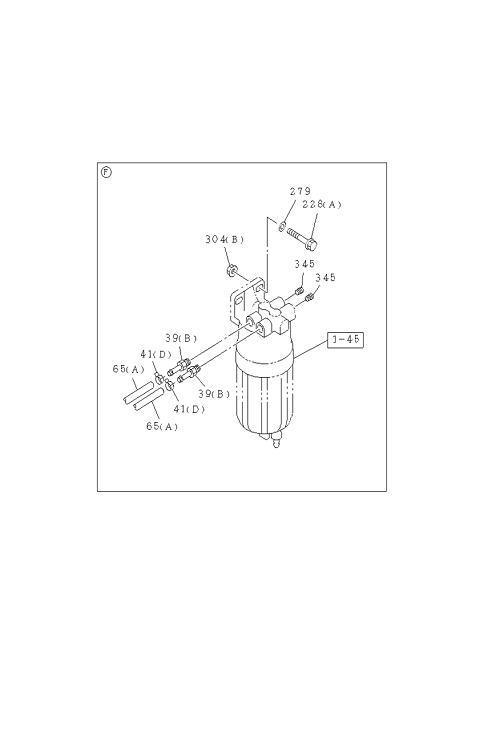

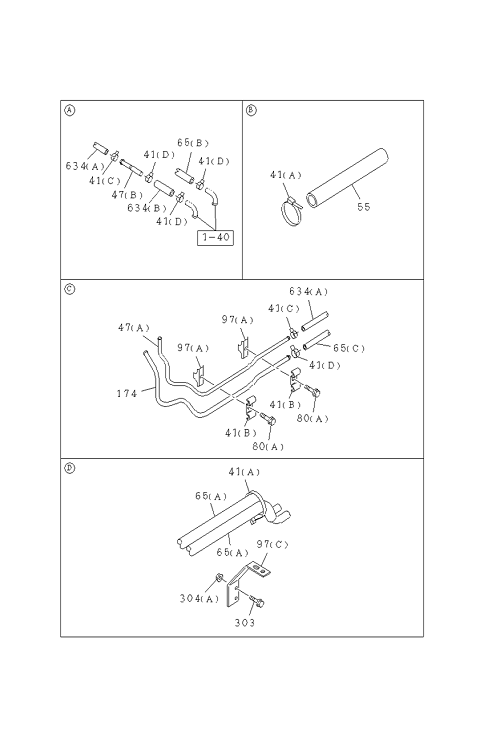

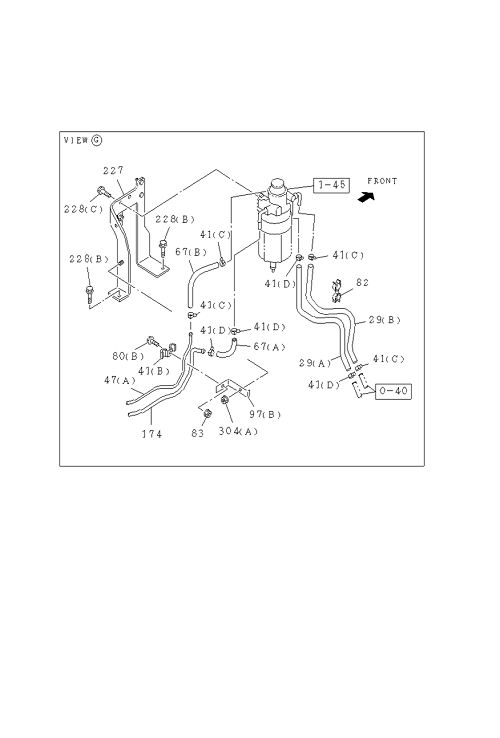

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 228 | I0-28050 830-0 | BOLT; BRKT,SEDIMENTER | 2 | 1706- | FVM | (B) M8X30 | ||
| 228 | I0-28650 820-0 | BOLT; BRKT,SEDIMENTER | 2 | 1706- | FVM | (C) M8X20 | ||
| 055 | I1-09360 677-1 | COVER; PIPE,FUEL TANK | 1 | 1706- | FVM | L=150 | ||
| 039 | I8-97353 668-0 | PIPE; FUEL | 2 | 1706- | FVM | (A) | ||
| 067 | I0-01859 300-0 | HOSE; FUEL,DELIVERY | 1 | 1706- | FVM | (A) L=110 SERVICED BY L=3000 | ||
| 082 | I8-94169 028-0 | CLIP; FUEL HOSE | 1 | 1706- | FVM | ID=13 & 16.5 | ||
| 065 | I8-98353 051-1 | HOSE; FUEL,DELIVERY PIPE | 1 | 1706- | FVM | (C) | ||
| 304 | I0-91180 108-0 | NUT; BRKT | 2 | 1706- | FVM | (A) M8 | ||
| 303 | I0-28650 830-0 | BOLT; BRKT | 2 | 1706- | FVM | M8X30 | ||
| 041 | I8-98008 098-0 | CLIP; FUEL PIPE,FUEL TANK | 14 | 1706- | FVM | (D) ID=16 | ||
| 174 | I8-98309 525-A | PIPE; FUEL,FEED,FRT | 1 | 1706- | FVM | |||
| 634 | I0-01859 300-0 | HOSE; RUBBER RETURN | 1 | 1706- | FVM | (B) L=100 | ||
| 041 | I1-09700 688-0 | CLIP; FUEL PIPE,FUEL TANK | 3 | 1706- | FVM | (B) ID=11 & 9 L=17.5 & 17.5 | ||
| 065 | I8-98353 051-1 | HOSE; FUEL,DELIVERY PIPE | 1 | 1706- | FVM | (C) | ||
| 047 | I8-97924 060-A | PIPE; FUEL,RETURN | 1 | 1706- | FVM | (B) OD=10 & OD=8 L=60 | ||
| 041 | I5-09707 030-1 | CLIP; FUEL PIPE,FUEL TANK | 3 | 1706- | FVM | (A) L=250 | ||
| 039 | I8-98122 953-A | PIPE; FUEL | 2 | 1706- | FVM | (B) NPTF3/8-18 OD=10 | ||
| 097 | I8-98379 567-0 | BRACKET; CLIP | 1 | 1706- | FVM | (C) | ||
| 304 | I0-91180 108-0 | NUT; BRKT | 1 | 1706- | FVM | (A) M8 | ||
| 080 | I0-28650 820-0 | BOLT; CLIP,FUEL TANK | 1 | 1706- | FVM | (B) M8X20 | ||
| 067 | I8-98336 357-0 | HOSE; FUEL,DELIVERY | 1 | 1706- | FVM | (B) L=210 | ||
| 080 | I0-28050 845-0 | BOLT; CLIP,FUEL TANK | 2 | 1706- | FVM | (A) M8X45 | ||
| 345 | I8-97329 623-0 | PLUG | 2 | 1706- | FVM | NPTF3/8-18 | ||
| 097 | I1-47475 427-1 | BRACKET; CLIP | 2 | 1706- | FVM | (A) | ||
| 304 | I7-05110 010-A | NUT; BRKT | 2 | 1706- | FVM | (B) M10 | ||
| 303 | I0-28650 830-0 | BOLT; BRKT | 2 | 1706- | FVM | M8X30 | ||
| 065 | I8-98360 555-1 | HOSE; FUEL,DELIVERY PIPE | 2 | 1706- | FVM | (A) | ||
| 039 | I8-97353 668-0 | PIPE; FUEL | 2 | 1706- | FVM | (A) | ||
| 345 | I8-97329 623-0 | PLUG | 2 | 1706- | FVM | NPTF3/8-18 | ||
| 067 | I8-98336 357-0 | HOSE; FUEL,DELIVERY | 1 | 1706- | FVM | (B) L=210 | ||
| 228 | I0-28050 830-0 | BOLT; BRKT,SEDIMENTER | 2 | 1706- | FVM | (B) M8X30 | ||
| 083 | I0-91180 108-0 | NUT; CLIP,FUEL TANK | 1 | 1706- | FVM | M8 | ||
| 029 | I8-98309 530-0 | HOSE; FUEL | 1 | 1706- | FVM | (A) | ||
| 634 | I0-01859 300-0 | HOSE; RUBBER RETURN | 1 | 1706- | FVM | (B) L=100 | ||
| 304 | I7-05110 010-A | NUT; BRKT | 2 | 1706- | FVM | (B) M10 | ||
| 304 | I0-91180 108-0 | NUT; BRKT | 1 | 1706- | FVM | (A) M8 | ||
| 047 | I8-97924 060-A | PIPE; FUEL,RETURN | 1 | 1706- | FVM | (B) OD=10 & OD=8 L=60 | ||
| 080 | I0-28650 820-0 | BOLT; CLIP,FUEL TANK | 1 | 1706- | FVM | (B) M8X20 | ||
| 097 | I8-98053 654-0 | BRACKET; CLIP | 1 | 1706- | FVM | (B) | ||
| 029 | I8-98309 531-0 | HOSE; FUEL | 1 | 1706- | FVM | (B) | ||
| 174 | I8-98309 525-A | PIPE; FUEL,FEED,FRT | 1 | 1706- | FVM | |||
| 097 | I1-47475 427-1 | BRACKET; CLIP | 2 | 1706- | FVM | (A) | ||
| 227 | I8-98311 038-0 | BRACKET; FUEL SEDIMENTER | 1 | 1706- | FVM | |||
| 279 | I0-91614 710-0 | WASHER | 2 | 1706- | FVM | ID=10.5 OD=26 | ||
| 082 | I8-94169 028-0 | CLIP; FUEL HOSE | 1 | 1706- | FVM | ID=13 & 16.5 | ||
| 065 | I8-98360 555-1 | HOSE; FUEL,DELIVERY PIPE | 2 | 1706- | FVM | (A) | ||
| 047 | I8-98309 529-A | PIPE; FUEL,RETURN | 1 | 1706- | FVM | (A) L=635 | ||
| 097 | I8-98053 654-0 | BRACKET; CLIP | 1 | 1706- | FVM | (B) | ||
| 029 | I8-98309 531-0 | HOSE; FUEL | 1 | 1706- | FVM | (B) | ||
| 041 | I8-97173 220-0 | CLIP; FUEL PIPE,FUEL TANK | 6 | 1706- | FVM | (C) ID=13 | ||
| 080 | I0-28050 845-0 | BOLT; CLIP,FUEL TANK | 2 | 1706- | FVM | (A) M8X45 | ||
| 634 | I8-98336 355-0 | HOSE; RUBBER RETURN | 1 | 1706- | FVM | (A) L=700 | ||
| 041 | I5-09707 030-1 | CLIP; FUEL PIPE,FUEL TANK | 3 | 1706- | FVM | (A) L=250 | ||
| 055 | I1-09360 677-1 | COVER; PIPE,FUEL TANK | 1 | 1706- | FVM | L=150 | ||
| 304 | I0-91180 108-0 | NUT; BRKT | 2 | 1706- | FVM | (A) M8 | ||
| 228 | I0-28650 820-0 | BOLT; BRKT,SEDIMENTER | 2 | 1706- | FVM | (C) M8X20 | ||
| 047 | I8-98309 529-A | PIPE; FUEL,RETURN | 1 | 1706- | FVM | (A) L=635 | ||
| 029 | I8-98309 530-0 | HOSE; FUEL | 1 | 1706- | FVM | (A) | ||
| 228 | I0-28051 060-0 | BOLT; BRKT,SEDIMENTER | 2 | 1706- | FVM | (A) M10X60 | ||
| 041 | I8-97173 220-0 | CLIP; FUEL PIPE,FUEL TANK | 6 | 1706- | FVM | (C) ID=13 | ||
| 083 | I0-91180 108-0 | NUT; CLIP,FUEL TANK | 1 | 1706- | FVM | M8 | ||
| 041 | I1-09700 688-0 | CLIP; FUEL PIPE,FUEL TANK | 3 | 1706- | FVM | (B) ID=11 & 9 L=17.5 & 17.5 | ||
| 039 | I8-98122 953-A | PIPE; FUEL | 2 | 1706- | FVM | (B) NPTF3/8-18 OD=10 | ||
| 097 | I8-98379 567-0 | BRACKET; CLIP | 1 | 1706- | FVM | (C) | ||
| 065 | I8-98353 050-1 | HOSE; FUEL,DELIVERY PIPE | 1 | 1706- | FVM | (B) L=470 | ||
| 067 | I0-01859 300-0 | HOSE; FUEL,DELIVERY | 1 | 1706- | FVM | (A) L=110 SERVICED BY L=3000 | ||
| 228 | I0-28051 060-0 | BOLT; BRKT,SEDIMENTER | 2 | 1706- | FVM | (A) M10X60 | ||
| 041 | I8-98008 098-0 | CLIP; FUEL PIPE,FUEL TANK | 14 | 1706- | FVM | (D) ID=16 | ||
| 634 | I8-98336 355-0 | HOSE; RUBBER RETURN | 1 | 1706- | FVM | (A) L=700 | ||
| 065 | I8-98353 050-1 | HOSE; FUEL,DELIVERY PIPE | 1 | 1706- | FVM | (B) L=470 | ||
| 279 | I0-91614 710-0 | WASHER | 2 | 1706- | FVM | ID=10.5 OD=26 | ||
| 227 | I8-98311 038-0 | BRACKET; FUEL SEDIMENTER | 1 | 1706- | FVM |
