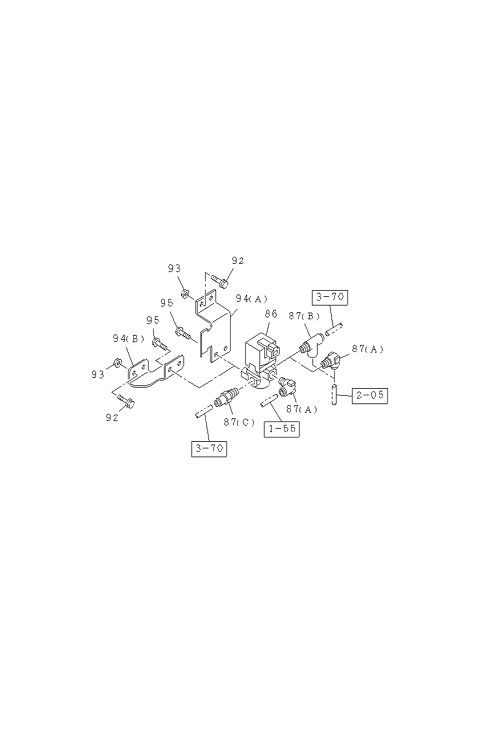

1-56 | EXHAUST BRAKE SYSTEM
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 094 | I8-98311 923-0 | BRACKET; MAG VLV,EXH BRAKE | 1 | 1706- | FVM | (B) | ||
| 095 | I0-28650 820-0 | BOLT; BRKT,MAG VLV,EXH BRAKE | 2 | 1706- | FVM | M8X20; FVM-HP | ||
| 095 | I0-28650 820-0 | BOLT; BRKT,MAG VLV,EXH BRAKE | 2 | 1706- | FVM | M8X20 | ||
| 087 | I1-09661 006-0 | CONNECTOR | 1 | 1706- | FVM | (B) DIN8X2 & R1/4 3WAY | ||
| 093 | I0-91180 108-0 | NUT; MAG VLV | 2 | 1706- | FVM | M8 | ||
| 086 | I8-97948 152-0 | VALVE; MAG,EXH BRK | 1 | 1706- | FVM | FVM-HP; EXC. TRANS SIDE PTO WO/LEVER | ||
| 087 | I1-09660 963-0 | CONNECTOR | 1 | 1706- | FVM | (C) DIN8 R1/4 STRAIGHT; FVM-HP | ||
| 086 | I8-97948 152-0 | VALVE; MAG,EXH BRK | 1 | 1706- | FVM | |||
| 087 | I1-09661 006-0 | CONNECTOR | 1 | 1706- | FVM | (B) DIN8X2 & R1/4 3WAY; FVM-HP | ||
| 087 | I1-09660 963-0 | CONNECTOR | 1 | 1706- | FVM | (C) DIN8 R1/4 STRAIGHT | ||
| 087 | I1-09660 956-0 | CONNECTOR | 1 | 1706- | FVM | (A) DIN8 & R1/4 ELBOW; FVM-HP | ||
| 087 | I1-09660 956-0 | CONNECTOR | 1 | 1706- | FVM | (A) DIN8 & R1/4 ELBOW | ||
| 092 | I0-28650 830-0 | BOLT; MAG VLV | 2 | 1706- | FVM | M8X30 | ||
| 094 | I8-98328 384-0 | BRACKET; MAG VLV,EXH BRAKE | 1 | 1706- | FVM | (A) |
