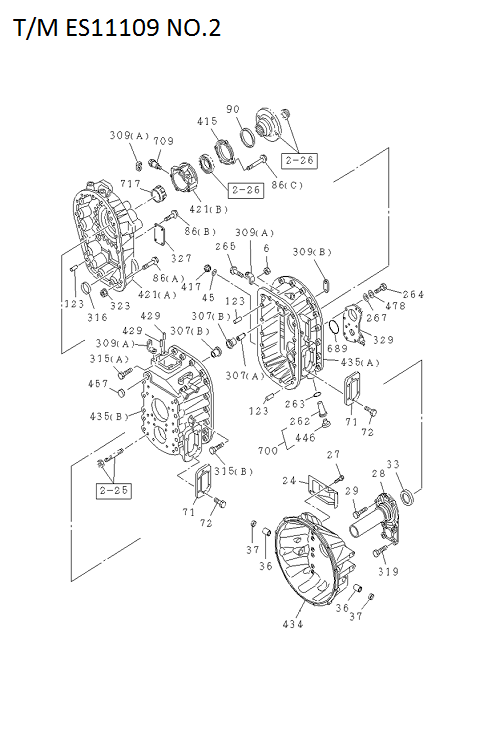

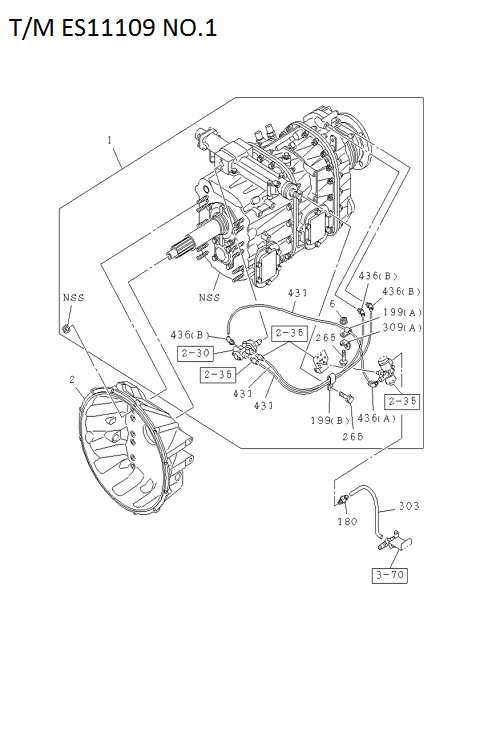

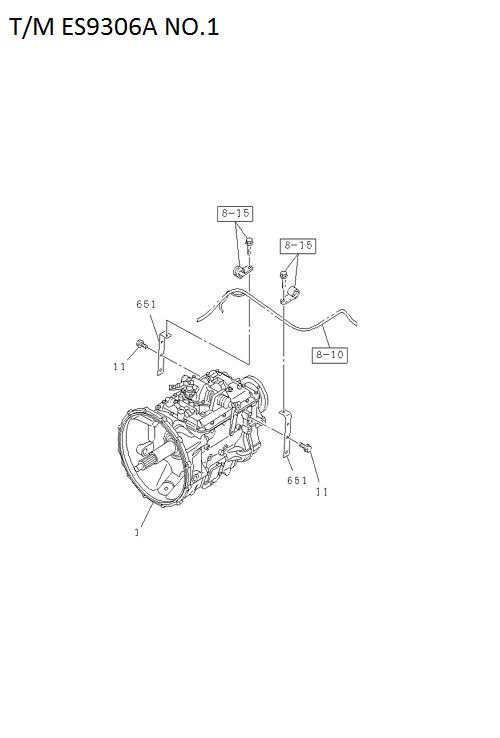

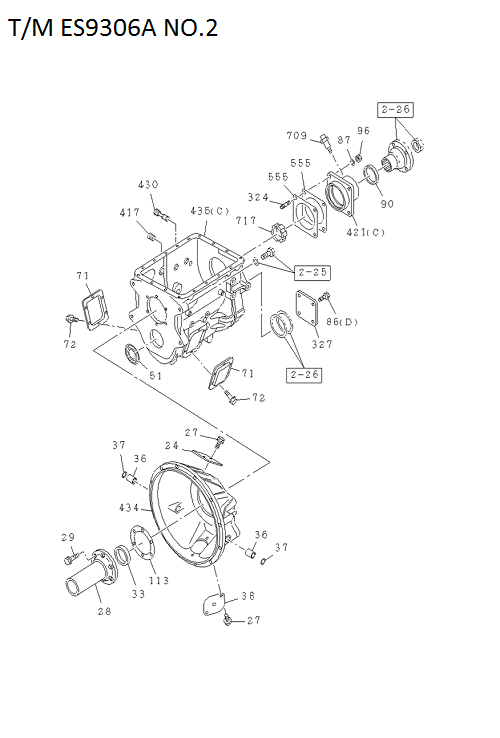

2-20 | MANUAL TRANSMISSION ASM AND CASE
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 199 | IE-88764 070-0 | CLIP; NYLON TUBE | 1 | 1706- | 9SP | (A) | ||
| 421 | I1-33131 250-0 | COVER; RR,TRANS | 1 | 1706- | 9SP | (A) | ||
| 457 | IE-88702 780-0 | CUP; SEALING,CASE | 1 | 1706- | 9SP | |||
| 267 | IE-11245 000-0 | WASHER; PL | 8 | 1706- | 9SP | |||
| 555 | IE-33156 650-0 | SHIM; RR COVER | 1 | 1706- | 6SP | T=0.020 | ||
| 709 | I8-98349 517-0 | SENSOR; SPEED,M/T | 1 | 1706- | ALL | |||
| 436 | I8-98349 505-0 | CONNECTOR; AIR HOSE,SUPPLY | 3 | 1706- | 9SP | (B) | ||
| 264 | IE-81006 000-0 | BOLT; OIL PUMP | 8 | 1706- | 9SP | |||
| 086 | IE-81240 000-0 | BOLT; RR COVER | 4 | 1706- | 9SP | (B) | ||
| 434 | IE-33056 100-0 | HOUSING; CLU | 1 | 1706- | 6SP | |||
| 329 | IE-88838 240-0 | PUMP ASM; OIL | 1 | 1706- | 9SP | |||
| 689 | IE-88814 750-0 | GASKET | 1 | 1706- | 9SP | |||
| 478 | I1-33119 568-0 | WASHER; LK,OIL PUMP | 8 | 1706- | 9SP | |||
| 319 | IE-81240 000-0 | BOLT; COVER | 4 | 1706- | 9SP | |||
| 024 | I8-98284 107-0 | COVER; CHECK HOLE,DUST | 1 | 1706- | 9SP | |||
| 263 | IE-88804 690-0 | GASKET; STRAINER | 1 | 1706- | 9SP | |||
| 555 | IE-33156 630-0 | SHIM; RR COVER | 1 | 1706- | 6SP | T=0.007 | ||
| 072 | IE-33013 200-0 | BOLT; SIDE COVER | 12 | 1706- | 6SP | |||
| 199 | I1-33119 476-0 | CLIP; NYLON TUBE | 1 | 1706- | 9SP | (B) | ||
| 421 | IE-88740 130-0 | COVER; RR,TRANS | 1 | 1706- | 9SP | (B) | ||
| 037 | I1-09625 002-0 | SEAL; DUST,CLU HSG | 2 | 1706- | 9SP | |||
| 316 | IE-14373 000-0 | MAGNET; TRANS CASE | 1 | 1706- | 9SP | |||
| 036 | IE-33058 400-0 | BEARING; NEEDLE,CLU HSG | 2 | 1706- | 6SP | |||
| 315 | IE-81080 000-0 | BOLT; CASE | 13 | 1706- | 9SP | (B) M10X58 | ||
| 028 | IE-33051 100-0 | COVER; FRT,TRANS CASE | 1 | 1706- | 6SP | |||
| 555 | IE-33156 640-0 | SHIM; RR COVER | 1 | 1706- | 6SP | T=0.010 | ||
| 027 | I0-28050 816-0 | BOLT; COVER TO CLU HSG | 2 | 1706- | 9SP | M8X16 | ||
| 309 | I1-33119 584-0 | EYE; LIFTING | 1 | 1706- | 9SP | (B) | ||
| 435 | IE-33009 300-0 | CASE; TRANS | 1 | 1706- | 6SP | (C) | ||
| 029 | IE-33013 600-0 | BOLT; FRT COVER | 6 | 1706- | 6SP | |||
| 421 | IE-33012 500-0 | COVER; RR,TRANS | 1 | 1706- | 6SP | (C) | ||
| 429 | IE-88705 420-0 | PIN; STRAIGHT | 2 | 1706- | 9SP | |||
| 717 | I8-98349 520-0 | ROTOR | 1 | 1706- | 9SP | |||
| 415 | IE-88719 920-0 | COVER; BRG | 1 | 1706- | 9SP | |||
| 431 | IE-88815 450-0 | TUBE; NYLON | 3 | 1706- | 9SP | |||
| 011 | I0-28151 220-0 | BOLT; BRKT | 4 | 1706- | 6SP | M12X20 | ||
| 417 | IE-88749 410-0 | PLUG; OIL FILLER,TRANS | 1 | 1706- | 9SP | |||
| 029 | IE-81089 000-0 | BOLT; FRT COVER | 5 | 1706- | 9SP | |||
| 555 | IE-43009 780-0 | SHIM; RR COVER | 1 | 1706- | 6SP | T=0.040 | ||
| 006 | I1-33119 571-0 | NUT; CASE,TRANS | 14 | 1706- | 9SP | |||
| 446 | I1-33119 546-0 | PLUG; CASE,TRANS | 1 | 1706- | 9SP | |||
| 086 | IE-81095 000-0 | BOLT; RR COVER | 4 | 1706- | 9SP | (C) | ||
| 090 | IE-33048 900-0 | SEAL; OIL,RR COVER | 1 | 1706- | ALL | |||
| 324 | IE-33013 700-0 | STUD; RR COVER | 4 | 1706- | 6SP | |||
| 327 | IE-88739 170-0 | COVER; RR,COUNTER | 1 | 1706- | 9SP | |||
| 262 | IE-88763 510-0 | STRAINER; OIL PUMP | 1 | 1706- | 9SP | |||
| 309 | I1-33119 566-0 | EYE; LIFTING | 4 | 1706- | 9SP | (A) | ||
| 072 | IE-81088 000-0 | BOLT; SIDE COVER | 12 | 1706- | 9SP | |||
| 700 | IE-88763 530-0 | STRAINER ASM | 1 | 1706- | 9SP | |||
| 071 | I1-33141 074-0 | COVER; SIDE,TRANS CASE | 2 | 1706- | ALL | |||
| 417 | IE-12120 700-0 | PLUG; OIL FILLER,TRANS | 1 | 1706- | 6SP | |||
| 038 | IE-33057 500-0 | COVER; CHECK HOLE,LWR | 1 | 1706- | 6SP | |||
| 024 | IE-33057 400-0 | COVER; CHECK HOLE,DUST | 1 | 1706- | 6SP | |||
| 096 | IE-33019 500-0 | NUT; RR COVER | 4 | 1706- | 6SP | |||
| 001 | I8-98332 768-2 | TRANSMISSION ASM; MANUAL | 1 | 1706- | 6SP | |||
| 123 | IE-88705 430-0 | DOWEL; TRANS CASE | 4 | 1706- | 9SP | |||
| 323 | I1-33119 571-0 | NUT; RR COVER | 17 | 1706- | 9SP | |||
| 002 | I8-98367 741-0 | HOUSING; CLU | 1 | 1706- | 9SP | |||
| 307 | IE-88824 150-0 | BUSHING; SHIFT FORK SHAFT | 2 | 1706- | 9SP | (B) | ||
| 033 | IE-88707 600-0 | SEAL; OIL,FRT COVER,T/M | 1 | 1706- | 9SP | |||
| 327 | IE-43016 070-0 | COVER; RR,COUNTER | 1 | 1706- | 6SP | |||
| 303 | I1-87411 006-0 | TUBE; NYLON | 1 | 1706- | ALL | OD=8 | ||
| 001 | I8-98325 138-3 | TRANSMISSION ASM; MANUAL | 1 | 1706- | 9SP | |||
| 113 | IE-33156 590-0 | GASKET; FRT COVER TO TRANS CASE | 1 | 1706- | 6SP | |||
| 086 | IE-33013 300-0 | BOLT; RR COVER | 4 | 1706- | 6SP | (D) | ||
| 051 | IE-33156 790-0 | COVER; SEAL,COUNTER,FRT | 1 | 1706- | 6SP | |||
| 087 | IE-23943 600-0 | WASHER; LK,RR COVER | 4 | 1706- | 6SP | |||
| 180 | I1-09660 961-0 | CONNECTOR; NYLON TUBE | 1 | 1706- | 9SP | |||
| 028 | IE-88776 220-0 | COVER; FRT,TRANS CASE | 1 | 1706- | 9SP | |||
| 717 | IE-55015 480-0 | ROTOR | 1 | 1706- | 6SP | |||
| 307 | IE-88713 770-0 | BUSHING; SHIFT FORK SHAFT | 1 | 1706- | 9SP | (A) | ||
| 436 | IE-88808 460-0 | CONNECTOR; AIR HOSE,SUPPLY | 1 | 1706- | 9SP | (A) | ||
| 036 | I1-09811 002-1 | BEARING; NEEDLE,CLU HSG | 2 | 1706- | 9SP | NTN | ||
| 027 | IE-87408 000-0 | BOLT; COVER TO CLU HSG | 4 | 1706- | 6SP | |||
| 086 | IE-81080 000-0 | BOLT; RR COVER | 17 | 1706- | 9SP | (A) M10X58 | ||
| 435 | IE-88766 440-0 | CASE; TRANS | 1 | 1706- | 9SP | (A) | ||
| 315 | IE-81079 000-0 | BOLT; CASE | 5 | 1706- | 9SP | (A) M10X40 | ||
| 435 | IE-88819 890-0 | CASE; TRANS | 1 | 1706- | 9SP | (B) | ||
| 430 | IE-22685 800-0 | PLUG; OIL DRAIN | 1 | 1706- | 6SP | |||
| 651 | I8-98335 078-0 | BRACKET; T/M HARNESS | 2 | 1706- | 6SP | |||
| 033 | IE-33048 800-0 | SEAL; OIL,FRT COVER,T/M | 1 | 1706- | 6SP | |||
| 045 | IE-88805 190-0 | GASKET; FILLER PLUG | 1 | 1706- | 9SP | |||
| 037 | IE-33058 500-0 | SEAL; DUST,CLU HSG | 2 | 1706- | 6SP | |||
| 265 | IE-81088 000-0 | BOLT; CLIP | 2 | 1706- | 9SP | |||
| 555 | IE-33156 620-0 | SHIM; RR COVER | 1 | 1706- | 6SP | T=0.004 |
