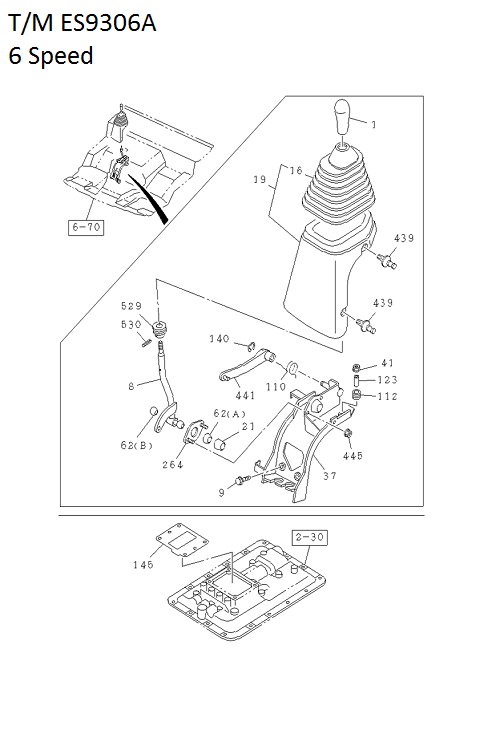

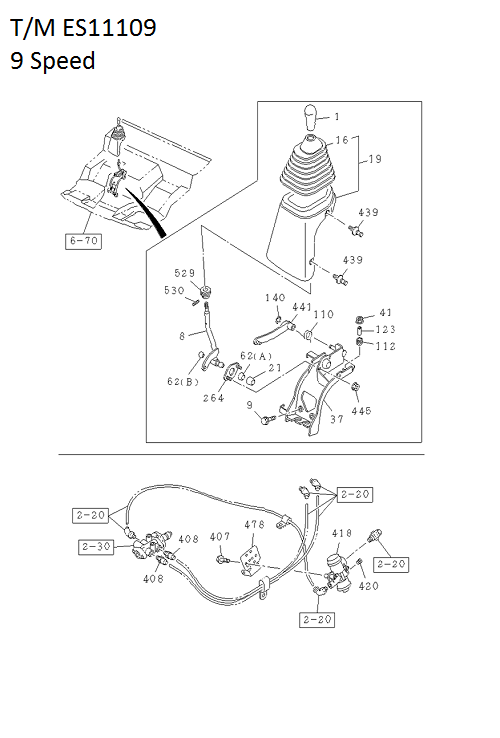

2-35 | MANUAL TRANSMISSION SHIFT CONTROL LEVER
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 009 | I8-94471 688-1 | BOLT; CHANGE LEVER | 2 | 1706- | FVM | M8X25 W/WAVE&PL WASHER | ||
| 001 | I8-97500 145-1 | KNOB; CHANGE LEVER | 1 | 1706- | FVM | FOR 6SPEED | ||
| 008 | I8-98093 455-0 | LEVER; CHANGE | 1 | 1706- | FVM | |||
| 123 | I1-33619 443-0 | COLLAR; DIST,CHANGE LEVER | 4 | 1706- | FVM | |||
| 420 | IE-20135 170-0 | PLUG; VALVE | 1 | 1706- | FVM | FOR 9SPEED | ||
| 016 | I1-79998 751-4 | BOOT; CHANGE LEVER | 1 | 1706- | FVM | |||
| 264 | I1-33619 430-0 | PLATE; COVER | 1 | 1706- | FVM | |||
| 418 | IE-88801 090-0 | VALVE ASM; AIR FILTER REG | 1 | 1706- | FVM | FOR 9SPEED | ||
| 478 | IE-88806 590-0 | BRACKET; AIR FILTER REG | 1 | 1706- | FVM | FOR 9SPEED | ||
| 439 | I8-97407 955-0 | FASTENER; COVER | 4 | 1706- | FVM | GRAY | ||
| 408 | IE-88815 380-0 | CONNECTOR; AIR HOSE | 2 | 1706- | FVM | FOR 9SPEED | ||
| 021 | I1-33619 429-0 | SEAT; CHANGE LEVER | 1 | 1706- | FVM | |||
| 019 | I8-97407 954-0 | COVER; CHANGE LEVER | 1 | 1706- | FVM | GRAY | ||
| 001 | I1-33611 099-1 | KNOB; CHANGE LEVER | 1 | 1706- | FVM | FOR 9SPEED | ||
| 062 | I8-97049 147-0 | SEAT; BALL,CHANGE LEVER | 1 | 1706- | FVM | (B) | ||
| 140 | I0-91805 510-0 | RING; SNAP | 1 | 1706- | FVM | ID=10 | ||
| 062 | I1-33619 427-0 | SEAT; BALL,CHANGE LEVER | 1 | 1706- | FVM | (A) | ||
| 112 | I1-33619 442-0 | RUBBER; CUSHION | 4 | 1706- | FVM | |||
| 530 | I1-33619 505-0 | PIN; SPRING | 1 | 1706- | FVM | |||
| 145 | IE-43019 580-0 | GASKET; CHANGE LEVER TO TRANS | 1 | 1706- | FVM | FOR 9SPEED | ||
| 529 | I1-33619 504-0 | RING; BOOT | 1 | 1706- | FVM | |||
| 445 | I0-91180 106-0 | NUT; PLATE | 2 | 1706- | FVM | M6 | ||
| 407 | IE-88801 510-0 | BOLT; VALVE | 2 | 1706- | FVM | FOR 9SPEED | ||
| 110 | I1-33619 435-0 | SPRING; RETURN,CHANGE LEVER | 1 | 1706- | FVM | |||
| 441 | I8-98093 449-0 | LEVER; SELECT | 1 | 1706- | FVM | |||
| 037 | I8-98093 444-0 | BRACKET; CHANGE LEVER SUPPORT | 1 | 1706- | FVM | |||
| 041 | I8-97329 625-0 | NUT; CHANGE LEVER | 2 | 1706- | FVM | M8 W/DISHED WASHER |
