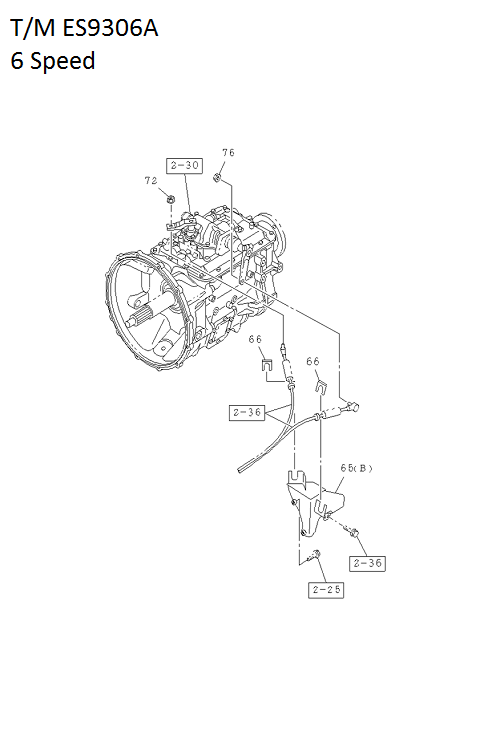

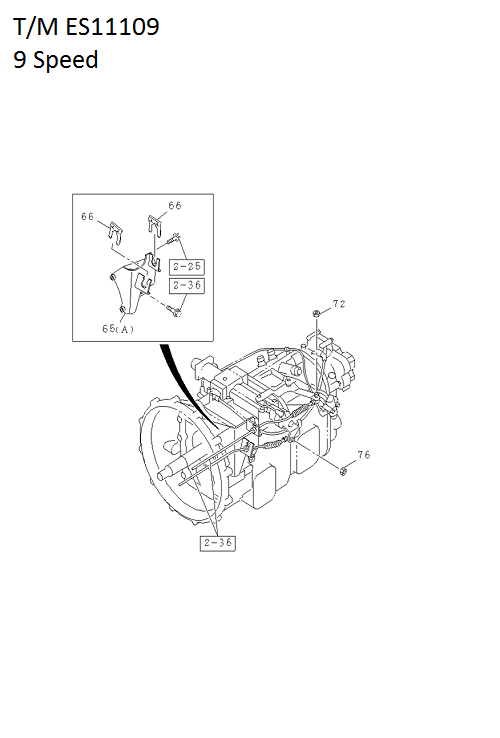

2-37 | MANUAL TRANSMISSION CONT; MISSION SIDE
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 066 | I1-09701 209-1 | CLIP; SELECT BRKT | 2 | 1706- | FVM | ID=22.2 | ||
| 076 | I1-09440 061-0 | NUT; BALL JOINT,SELECT WIRE | 1 | 1706- | FVM | M10; FOR 6SPEED | ||
| 065 | I8-98311 314-0 | BRACKET; SHIFT TO SELECT,TRANS CONT | 1 | 1706- | FVM | (B) FOR 6SPEED | ||
| 065 | I8-98131 609-0 | BRACKET; SHIFT TO SELECT,TRANS CONT | 1 | 1706- | FVM | (A) FOR 9 SPEED | ||
| 072 | I1-09440 062-1 | NUT; TRANS CONT,SELECT | 1 | 1706- | FVM | M8 | ||
| 076 | I1-09440 062-1 | NUT; BALL JOINT,SELECT WIRE | 1 | 1706- | FVM | M8; FOR 9SPEED |
