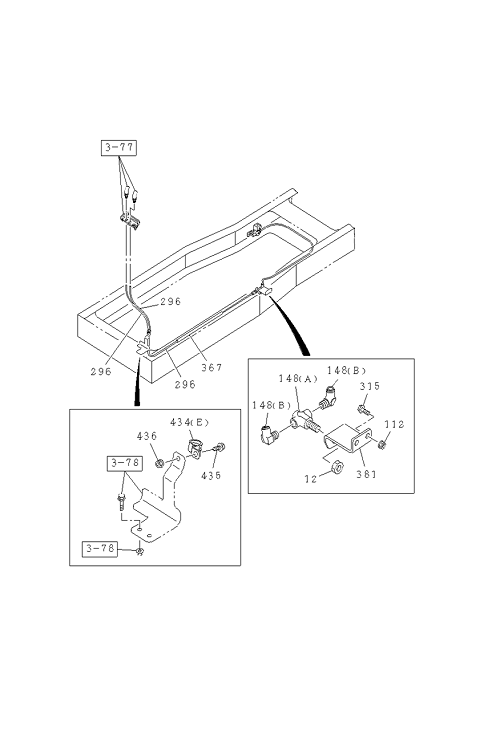

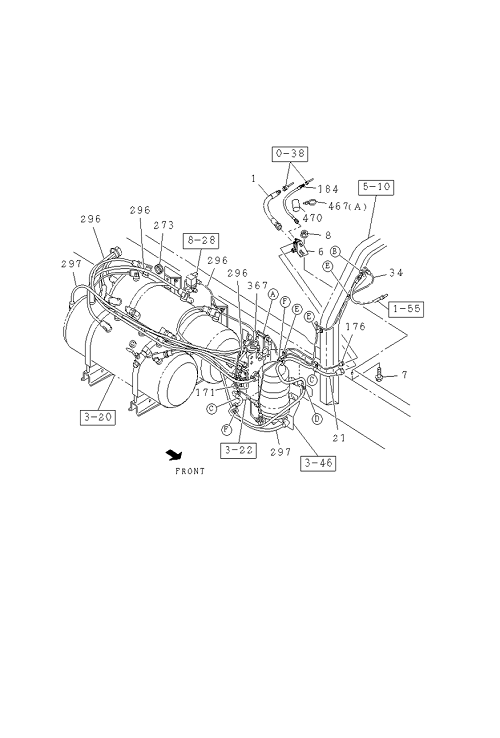

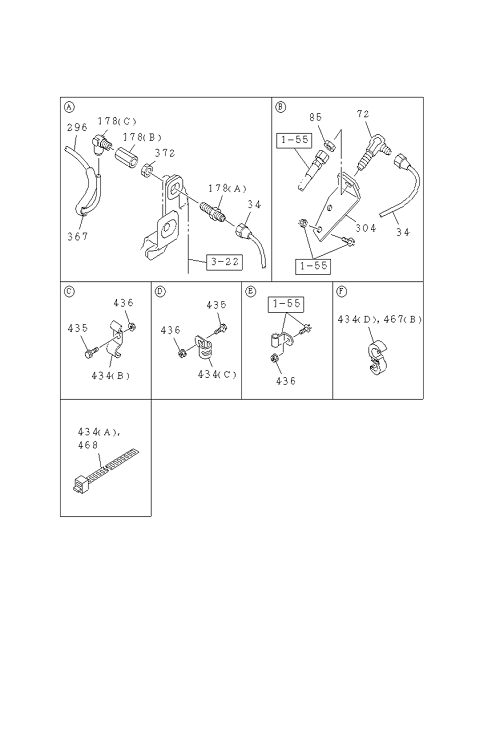

3-70 | BRAKE PIPING; AIR,AIR MASTER
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 434 | I1-09700 675-0 | CLIP | 2 | 1706- | FVM | (B) ID=16 & 7 L=21 & 17 | ||
| 435 | I0-28650 820-0 | BOLT; CLIP | 3 | 1706- | FVM | M8X20 | ||
| 367 | I1-87411 031-0 | TUBE; CORRUGATE | AR | 1706- | FVM | ID=25 | ||
| 468 | I5-09707 030-1 | CLIP; BAND | 1 | 1706- | FVM | L=250 | ||
| 148 | I1-09660 956-0 | CONNECTOR; UNION | 2 | 1706- | FVM | (B) DIN8 & R1/4 ELBOW | ||
| 112 | I0-91180 108-0 | NUT | 2 | 1706- | FVM | M8 | ||
| 007 | I0-28650 830-0 | BOLT; BRKT,FLEX HOSE,AIR TANK | 2 | 1706- | FVM | M8X30 | ||
| 273 | I9-09956 256-2 | GROMMET | 1 | 1706- | FVM | ID=28 OD=35 T=17 | ||
| 296 | I1-87411 001-0 | TUBE; NYLON | AR | 1706- | FVM | OD=6 | ||
| 436 | I0-91180 108-0 | NUT; CLIP | 3 | 1706- | FVM | M8 | ||
| 072 | I0-92125 006-0 | UNION; AIR PIPE | 1 | 1706- | FVM | M12 ELBOW | ||
| 297 | I1-87411 009-0 | TUBE; NYLON | AR | 1706- | FVM | OD=8 | ||
| 367 | I1-87411 025-0 | TUBE; CORRUGATE | AR | 1706- | FVM | ID=15 | ||
| 304 | I8-98229 691-0 | BRACKET; UNION | 1 | 1706- | FVM | |||
| 435 | I0-28650 820-0 | BOLT; CLIP | 1 | 1706- | FVM | M8X20 | ||
| 297 | I1-87411 008-0 | TUBE; NYLON | AR | 1706- | FVM | OD=8 | ||
| 012 | I0-91111 512-0 | NUT; UNION | 1 | 1706- | FVM | M12 | ||
| 434 | I0-95235 536-0 | CLIP | 1 | 1706- | FVM | (C) ID=16 L=20 | ||
| 148 | I8-98120 049-0 | CONNECTOR; UNION | 1 | 1706- | FVM | (A) M12 & RC1/4X2 2WAY | ||
| 008 | I0-91180 108-0 | NUT; BRKT,FLEX HOSE,AIR TANK | 2 | 1706- | FVM | M8 | ||
| 176 | I8-98179 119-A | PIPE; AIR,AIR DRYER TO UNION | 1 | 1706- | FVM | L=985 | ||
| 434 | I1-09707 183-0 | CLIP | 7 | 1706- | FVM | (A) L=350 | ||
| 006 | I8-98325 111-0 | BRACKET; FLEX HOSE,AIR TANK | 1 | 1706- | FVM | |||
| 470 | I8-97695 339-A | INSULATOR; HOSE | 1 | 1706- | FVM | ID=32 OD=36 L=50 | ||
| 315 | I0-28650 830-0 | BOLT; CONNECTOR | 2 | 1706- | FVM | M8X30 | ||
| 296 | I1-87411 006-0 | TUBE; NYLON | AR | 1706- | FVM | OD=8 | ||
| 467 | I1-09707 183-0 | CLIP; NYLON TUBE | 1 | 1706- | FVM | (A) L=350 | ||
| 297 | I1-87411 010-0 | TUBE; NYLON | AR | 1706- | FVM | OD=8 | ||
| 467 | I1-09709 281-1 | CLIP; NYLON TUBE | 1 | 1706- | FVM | (B) ID=12 & 15 | ||
| 178 | I1-09660 885-0 | UNION; AIR PIPE | 1 | 1706- | FVM | (B) M12 & RC1/4 STRAIGHT | ||
| 085 | I9-09840 280-0 | NUT; UNION | 1 | 1706- | FVM | M12 | ||
| 436 | I0-91180 108-0 | NUT; CLIP | 1 | 1706- | FVM | M8 | ||
| 297 | I1-87411 014-0 | TUBE; NYLON | AR | 1706- | FVM | OD=12 | ||
| 434 | I1-09709 276-1 | CLIP | 1 | 1706- | FVM | (D) ID=6.35 & 15 | ||
| 296 | I1-87411 011-0 | TUBE; NYLON | AR | 1706- | FVM | OD=12 | ||
| 297 | I1-87411 013-0 | TUBE; NYLON | AR | 1706- | FVM | OD=12 | ||
| 367 | I1-87411 019-0 | TUBE; CORRUGATE | AR | 1706- | FVM | ID=10 | ||
| 034 | I8-98311 322-0 | PIPE; AIR | 1 | 1706- | FVM | L=1276 | ||
| 372 | I9-09840 280-0 | NUT | 1 | 1706- | FVM | M12 | ||
| 297 | I1-87411 011-0 | TUBE; NYLON | AR | 1706- | FVM | OD=12 | ||
| 367 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 1706- | FVM | ID=13 | ||
| 434 | I1-09700 862-0 | CLIP | 1 | 1706- | FVM | (E) ID=24.5 H=23 L=25 | ||
| 178 | I1-09660 956-0 | UNION; AIR PIPE | 1 | 1706- | FVM | (C) DIN8 & R1/4 ELBOW | ||
| 436 | I0-91180 108-0 | NUT; CLIP | 2 | 1706- | FVM | M8 | ||
| 184 | I1-09363 823-0 | HOSE; FLEX,AIR GOV | 1 | 1706- | FVM | L=360 | ||
| 001 | I8-97607 730-0 | HOSE; FLEX,AIR TANK | 1 | 1706- | FVM | L=310 | ||
| 178 | I0-92113 106-0 | UNION; AIR PIPE | 1 | 1706- | FVM | (A) M12 L=56.5 | ||
| 367 | I1-87411 033-0 | TUBE; CORRUGATE | AR | 1706- | FVM | ID=28 | ||
| 297 | I1-87411 015-0 | TUBE; NYLON | AR | 1706- | FVM | OD=12 | ||
| 021 | I8-98325 881-A | PIPE; AIR,UNION TO AIR DRYER | 1 | 1706- | FVM | L=1869 | ||
| 297 | I1-87411 012-0 | TUBE; NYLON | AR | 1706- | FVM | OD=12 | ||
| 367 | I1-87411 027-0 | TUBE; CORRUGATE | AR | 1706- | FVM | ID=19 | ||
| 171 | I8-98185 671-A | PIPE; AIR,GOV TO AIR DRYER | 1 | 1706- | FVM | L=694 | ||
| 381 | I8-98312 051-0 | BRACKET | 1 | 1706- | FVM | |||
| 367 | I1-87411 035-0 | TUBE; CORRUGATE | AR | 1706- | FVM | ID=32 |
