Isuzu | Part Center System

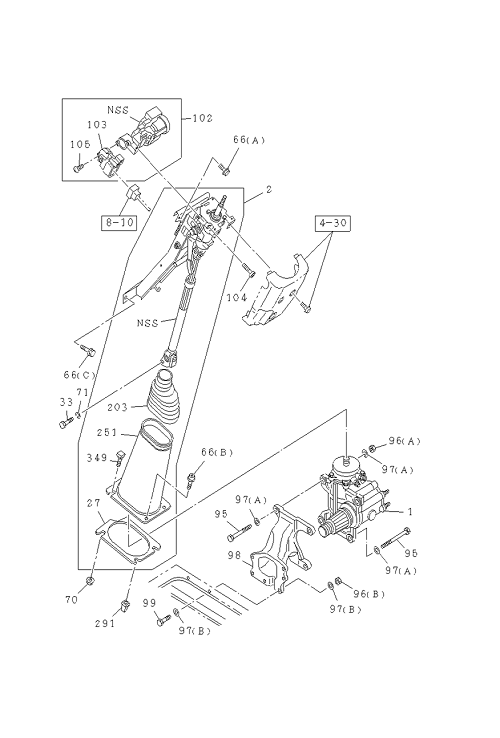

Key	PART NO	DESCRIPTION	QTY	APP DATE	MODEL	REMARKS

105	I8-98045 346-0	SCREW; IGN SW	2	1706-	FVM
097	I1-09503 316-0	WASHER; PL,STRG UNIT	6	1706-	FVM	(A) ID=16.2
096	I0-91110 516-0	NUT; STRG UNIT	2	1706-	FVM	(A) M16
102	I8-97948 271-0	LOCK ASM; STRG	1	1706-	FVM
066	I0-28650 820-0	BOLT; STRG COLUMN	2	1706-	FVM	(A) M8X20
291	I8-94279 043-A	GROMMET; STRG SHAFT COVER	2	1706-	FVM	D=7.8X7.8 L=18 NATURAL
033	I1-09009 126-1	BOLT; STRG SHAFT TO UNIT	1	1706-	FVM	M10X35
251	I8-98480 376-0	COVER; LWR	1	1706-	FVM
203	I8-98480 375-0	BOOT; STRG COLUMN LWR	1	1706-	FVM
099	I8-97301 262-0	BOLT; BRKT TO FRAME	6	1706-	FVM	M14X55
349	I8-98480 378-0	BOLT; COVER	2	1706-	FVM
098	I8-97667 334-0	BRACKET; STRG GEAR BOX	1	2010-	FVM
103	I8-98045 349-0	SWITCH; IGNITION	1	1706-	FVM
095	I1-09000 305-0	BOLT; STRG UNIT	4	1706-	FVM	M16X66
071	I0-91510 810-0	WASHER; LK,SHAFT TO UNIT	1	1706-	FVM	ID=10.2
027	I8-98480 377-0	SEAL; OIL STRG SHAFT	1	1706-	FVM
066	I8-98018 439-0	BOLT; STRG COLUMN	2	1706-	FVM	(C) M8X25 W/LK&PL WASHER
066	I0-72180 518-0	BOLT; STRG COLUMN	2	1706-	FVM	(B) M5X18 TAPPING
096	I7-05014 012-A	NUT; STRG UNIT	6	1706-	FVM	(B) M14
104	I8-97321 385-0	BOLT; STRG LOCK TO COLUMN	2	1706-	FVM	M8X20 TORQUE SHEAR BOLT
001	I8-97948 359-1	STEERING UNIT	1	1706-	FVM
070	I1-09984 180-0	NUT; STRG COLUMN	2	1706-	FVM	M6 W/RUBBER
097	I8-98010 627-1	WASHER; PL,STRG UNIT	12	1706-	FVM	(B) ID=15
002	I8-98330 991-2	SHAFT ASM; STRG	1	1706-	FVM
098	I8-98313 162-0	BRACKET; STRG GEAR BOX	1	1706-2009	FVM
