PORTAL SPAREPART

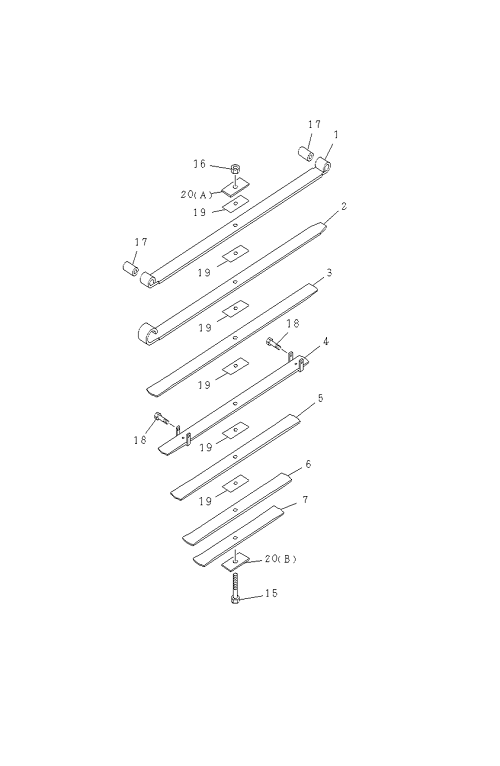

4-55 | FRONT LEAF SPRING

Partial Engine

GIGA

NEW GIGA FVM

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
004 I8-97189 004-A SPRING; LEAF,NO 4,FRT 2 1706- FVM
007 I8-97189 007-A SPRING; LEAF,NO 7,FRT 2 1706- FVM
003 I6-97189 003-0 SPRING; LEAF,NO 3,FRT 2 1706- FVM (IADG)
015 I6-00189 100-0 BOLT; CENTER,LEAF SPR,FRT 2 1706- FVM (IADG) W/ NUT
020 I7-00189 501-A SEAT; LEAF SPR,FRT AR 1706- FVM (A)
002 I8-97189 002-A SPRING; LEAF,NO 2,FRT 2 1706- FVM
017 I6-00189 200-0 BUSHING; LEAF SPR,FRT 4 1706- FVM (IADG) OD=38
018 I6-00189 300-0 BOLT; CLIP,LEAF SPR,FRT AR 1706- FVM (IADG) M10X99
020 I7-00189 501-A SEAT; LEAF SPR,FRT AR 1706- FVM (A)
006 I6-97189 006-0 SPRING; LEAF,NO 6,FRT 2 1706- FVM (IADG)
006 I8-97189 006-A SPRING; LEAF,NO 6,FRT 2 1706- FVM
020 I7-00189 502-A SEAT; LEAF SPR,FRT AR 1706- FVM (B)
018 I7-00189 300-A BOLT; CLIP,LEAF SPR,FRT AR 1706- FVM M10X99
006 I6-97189 006-0 SPRING; LEAF,NO 6,FRT 2 1706- FVM (IADG)
004 I8-97189 004-A SPRING; LEAF,NO 4,FRT 2 1706- FVM
015 I7-00189 100-A BOLT; CENTER,LEAF SPR,FRT 2 1706- FVM W/ NUT
017 I6-00189 200-0 BUSHING; LEAF SPR,FRT 4 1706- FVM (IADG) OD=38
018 I7-00189 300-A BOLT; CLIP,LEAF SPR,FRT AR 1706- FVM M10X99
003 I8-97189 003-A SPRING; LEAF,NO 3,FRT 2 1706- FVM
015 I6-00189 100-0 BOLT; CENTER,LEAF SPR,FRT 2 1706- FVM (IADG) W/ NUT
002 I6-97189 002-0 SPRING; LEAF,NO 2,FRT 2 1706- FVM (IADG)
007 I8-97189 007-A SPRING; LEAF,NO 7,FRT 2 1706- FVM
006 I8-97189 006-A SPRING; LEAF,NO 6,FRT 2 1706- FVM
001 I6-97189 001-0 SPRING; LEAF,NO 1,FRT 2 1706- FVM (IADG)
004 I6-97189 004-0 SPRING; LEAF,NO 4,FRT 2 1706- FVM (IADG)
001 I8-97189 001-B SPRING; LEAF,NO 1,FRT 2 1706- FVM
005 I8-97189 005-A SPRING; LEAF,NO 5,FRT 2 1706- FVM
001 I8-97189 001-B SPRING; LEAF,NO 1,FRT 2 1706- FVM
007 I6-97189 007-0 SPRING; LEAF,NO 7,FRT 2 1706- FVM (IADG)
001 I6-97189 001-0 SPRING; LEAF,NO 1,FRT 2 1706- FVM (IADG)
020 I7-00189 502-A SEAT; LEAF SPR,FRT AR 1706- FVM (B)
007 I6-97189 007-0 SPRING; LEAF,NO 7,FRT 2 1706- FVM (IADG)
002 I8-97189 002-A SPRING; LEAF,NO 2,FRT 2 1706- FVM
003 I6-97189 003-0 SPRING; LEAF,NO 3,FRT 2 1706- FVM (IADG)
005 I6-97189 005-0 SPRING; LEAF,NO 5,FRT 2 1706- FVM (IADG)
015 I7-00189 100-A BOLT; CENTER,LEAF SPR,FRT 2 1706- FVM W/ NUT
003 I8-97189 003-A SPRING; LEAF,NO 3,FRT 2 1706- FVM
002 I6-97189 002-0 SPRING; LEAF,NO 2,FRT 2 1706- FVM (IADG)
017 I7-00189 200-A BUSHING; LEAF SPR,FRT 4 1706- FVM OD=38
005 I8-97189 005-A SPRING; LEAF,NO 5,FRT 2 1706- FVM
004 I6-97189 004-0 SPRING; LEAF,NO 4,FRT 2 1706- FVM (IADG)
005 I6-97189 005-0 SPRING; LEAF,NO 5,FRT 2 1706- FVM (IADG)
018 I6-00189 300-0 BOLT; CLIP,LEAF SPR,FRT AR 1706- FVM (IADG) M10X99
017 I7-00189 200-A BUSHING; LEAF SPR,FRT 4 1706- FVM OD=38
