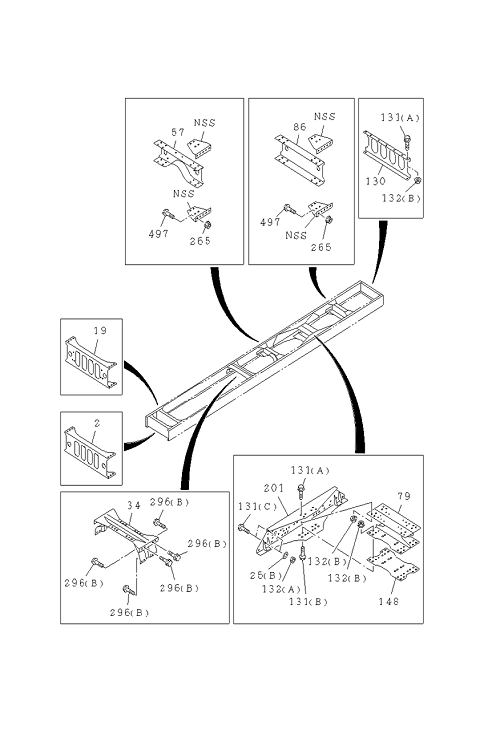

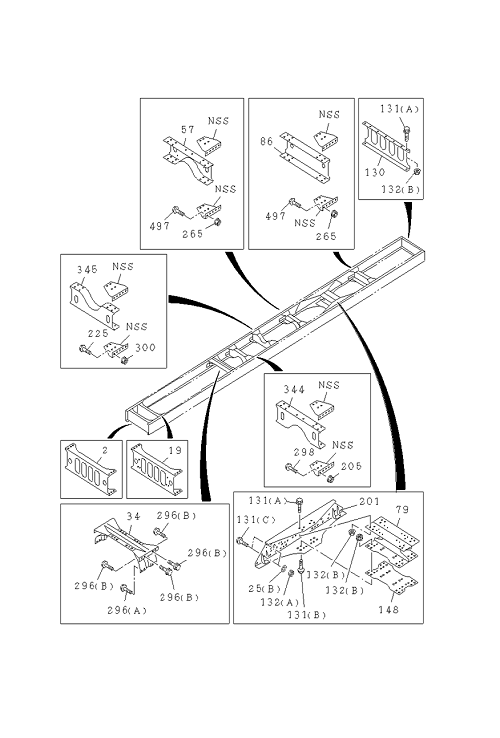

5-01 | FRAME AND OTHER PARTS
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 205 | I0-91180 114-0 | NUT; 4TH C/MBR | 16 | 1706- | WB7100 | M14 | ||
| 130 | I8-98294 482-1 | MEMBER; CROSS,END | 1 | 1706- | ALL | |||
| 148 | I8-98316 467-0 | SPACER; C/MBR | 1 | 1706- | ALL | |||
| 024 | I8-98315 672-0 | BRACKET; FRT SPR,FRT | 2 | 1706-1902 | ALL | (B) | ||
| 452 | I8-98345 486-0 | BOLT; V ROD | 20 | 1706- | ALL | |||
| 497 | I0-28851 440-0 | BOLT; C/MBR | 32 | 1706- | ALL | M14X40 | ||
| 096 | I8-98313 256-A | PAD; RR SPR | 2 | 1706- | ALL | |||
| 023 | I0-20951 445-0 | BOLT; BRKT,SPR | 16 | 1706- | ALL | (A) M14X45 | ||
| 296 | I0-28851 440-0 | BOLT; 3RD C/MBR | 8 | 1706- | WB7100 | (A) M14X40 | ||
| 450 | I8-98313 244-0 | BRACKET; V ROD | 2 | 1706- | ALL | |||
| 079 | I8-98316 462-2 | MEMBER; CROSS,TRUNNION ASM | 1 | 1706-1812 | ALL | |||
| 296 | I0-28851 445-0 | BOLT; 3RD C/MBR | 16 | 1706- | ALL | (B) M14X45 | ||
| 131 | I1-09044 090-1 | BOLT; END C/MBR | 12 | 1903- | ALL | (B) M16X50 | ||
| 026 | I7-05014 012-A | NUT; BRKT,SPR | 16 | 1706- | ALL | (A) M14 | ||
| 132 | I0-91180 114-0 | NUT; END C/MBR | 28 | 1706- | ALL | (B) M14 | ||
| 034 | I8-98315 397-2 | MEMBER; CROSS,3RD | 1 | 1706- | WB7100 | |||
| 024 | I8-98315 672-0 | BRACKET; FRT SPR,FRT | 2 | 1706-1902 | ALL | (B) | ||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 8 | 1706- | ALL | (B) ID=16.2 | ||
| 024 | I8-98315 671-0 | BRACKET; FRT SPR,FRT | 1 | 1706-1804 | L | ALL | (A) | |
| 086 | I8-98294 852-1 | MEMBER; CROSS,RR SUSP RR | 1 | 1706- | ALL | |||
| 024 | I8-98315 669-0 | BRACKET; FRT SPR,FRT | 1 | 1706-1804 | R | ALL | (A) | |
| 013 | I0-28051 235-0 | BOLT; BRKT,ENG MTG | 8 | 1706- | ALL | M12X35 | ||
| 019 | I8-98311 933-0 | MEMBER; CROSS,2ND | 1 | 1706- | ALL | |||
| 079 | I8-97528 156-0 | MEMBER; CROSS,TRUNNION ASM | 1 | 1901- | ALL | |||
| 148 | I8-98316 467-0 | SPACER; C/MBR | 1 | 1706- | ALL | |||
| 131 | I0-29261 650-0 | BOLT; END C/MBR | 32 | 1706- | ALL | (C) M16X50 | ||
| 201 | I8-97529 527-0 | GUSSET; C/MBR | 2 | 1903- | ALL | |||
| 002 | I8-98311 932-0 | MEMBER; CROSS,1ST | 1 | 1706- | ALL | |||
| 345 | I8-98328 903-3 | MEMBER; CROSS,5TH | 1 | 1706- | WB7100 | |||
| 450 | I8-98313 244-0 | BRACKET; V ROD | 2 | 1706- | ALL | |||
| 024 | I8-97526 185-0 | BRACKET; FRT SPR,FRT | 2 | 1903- | ALL | (B) | ||
| 024 | I8-98315 671-0 | BRACKET; FRT SPR,FRT | 1 | 1706-1804 | L | ALL | (A) | |
| 057 | I8-98328 903-3 | MEMBER; CROSS,RR SUSP FRT | 1 | 1706- | ALL | |||
| 131 | I0-28851 435-0 | BOLT; END C/MBR | 16 | 1706- | ALL | (A) M14X35 | ||
| 132 | I0-91110 516-0 | NUT; END C/MBR | 32 | 1706- | ALL | (A) M16 | ||
| 034 | I8-98315 397-2 | MEMBER; CROSS,3RD | 1 | 1706- | WB7100 | |||
| 024 | I8-98315 669-0 | BRACKET; FRT SPR,FRT | 1 | 1706-1804 | R | ALL | (A) | |
| 079 | I8-98316 462-2 | MEMBER; CROSS,TRUNNION ASM | 1 | 1706-1812 | ALL | |||
| 131 | I8-98339 366-0 | BOLT; END C/MBR | 12 | 1706-1902 | ALL | (B) M14X45 | ||
| 086 | I8-98294 852-1 | MEMBER; CROSS,RR SUSP RR | 1 | 1706- | ALL | |||
| 024 | I8-97526 185-0 | BRACKET; FRT SPR,FRT | 2 | 1903- | ALL | (B) | ||
| 096 | I8-98313 256-A | PAD; RR SPR | 2 | 1706- | ALL | |||
| 344 | I8-98328 903-3 | MEMBER; CROSS,4TH | 1 | 1706- | WB7100 | |||
| 090 | I1-09503 162-0 | WASHER; PL | 40 | 1706- | ALL | ID=19 | ||
| 296 | I0-28851 440-0 | BOLT; 3RD C/MBR | 8 | 1706- | WB7100 | (A) M14X40 | ||
| 497 | I0-28851 440-0 | BOLT; C/MBR | 32 | 1706- | ALL | M14X40 | ||
| 025 | I8-98010 627-1 | WASHER; PL,BRKT | 16 | 1706- | ALL | (A) ID=15 | ||
| 225 | I0-28851 440-0 | BOLT; 5TH C/MBR | 16 | 1706- | WB7100 | M14X40 | ||
| 265 | I0-91180 114-0 | NUT; FRT C/MBR | 32 | 1706- | ALL | M14 | ||
| 452 | I8-98345 486-0 | BOLT; V ROD | 20 | 1706- | ALL | |||
| 298 | I0-28851 440-0 | BOLT; 4TH C/MBR | 16 | 1706- | WB7100 | M14X40 | ||
| 132 | I0-91180 114-0 | NUT; END C/MBR | 28 | 1706- | ALL | (B) M14 | ||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 32 | 1706- | ALL | (B) ID=16.2 | ||
| 026 | I0-91110 516-0 | NUT; BRKT,SPR | 4 | 1706- | ALL | (B) M16 | ||
| 011 | I8-98294 501-0 | BRACKET; ENG MTG | 2 | 1706- | ALL | |||
| 131 | I0-28851 435-0 | BOLT; END C/MBR | 16 | 1706- | ALL | (A) M14X35 | ||
| 201 | I8-98317 783-2 | GUSSET; C/MBR | 2 | 1706-1902 | ALL | |||
| 002 | I8-98311 932-0 | MEMBER; CROSS,1ST | 1 | 1706- | ALL | |||
| 024 | I8-97502 717-0 | BRACKET; FRT SPR,FRT | 1 | 1805- | R | ALL | (A) | |
| 023 | I0-20951 445-0 | BOLT; BRKT,SPR | 16 | 1706- | ALL | (A) M14X45 | ||
| 023 | I0-20951 650-0 | BOLT; BRKT,SPR | 4 | 1706- | ALL | (B) M16X50 | ||
| 201 | I8-97529 527-0 | GUSSET; C/MBR | 2 | 1903- | ALL | |||
| 023 | I0-20951 650-0 | BOLT; BRKT,SPR | 4 | 1706- | ALL | (B) M16X50 | ||
| 132 | I0-91110 516-0 | NUT; END C/MBR | 32 | 1706- | ALL | (A) M16 | ||
| 026 | I0-91110 516-0 | NUT; BRKT,SPR | 4 | 1706- | ALL | (B) M16 | ||
| 131 | I0-29261 650-0 | BOLT; END C/MBR | 32 | 1706- | ALL | (C) M16X50 | ||
| 201 | I8-98317 783-2 | GUSSET; C/MBR | 2 | 1706-1902 | ALL | |||
| 024 | I8-97502 717-0 | BRACKET; FRT SPR,FRT | 1 | 1805- | R | ALL | (A) | |
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 32 | 1706- | ALL | (B) ID=16.2 | ||
| 013 | I0-28051 235-0 | BOLT; BRKT,ENG MTG | 8 | 1706- | ALL | M12X35 | ||
| 034 | I8-98369 330-1 | MEMBER; CROSS,3RD | 1 | 1706- | WB5400 | |||
| 225 | I0-28851 440-0 | BOLT; 5TH C/MBR | 16 | 1706- | WB7100 | M14X40 | ||
| 057 | I8-98328 903-3 | MEMBER; CROSS,RR SUSP FRT | 1 | 1706- | ALL | |||
| 079 | I8-97528 156-0 | MEMBER; CROSS,TRUNNION ASM | 1 | 1901- | ALL | |||
| 019 | I8-98311 933-0 | MEMBER; CROSS,2ND | 1 | 1706- | ALL | |||
| 026 | I7-05014 012-A | NUT; BRKT,SPR | 16 | 1706- | ALL | (A) M14 | ||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 8 | 1706- | ALL | (B) ID=16.2 | ||
| 130 | I8-98294 482-1 | MEMBER; CROSS,END | 1 | 1706- | ALL | |||
| 024 | I8-97502 718-0 | BRACKET; FRT SPR,FRT | 1 | 1805- | L | ALL | (A) | |
| 453 | I0-91112 818-0 | NUT; V ROD | 20 | 1706- | ALL | M18 | ||
| 025 | I8-98010 627-1 | WASHER; PL,BRKT | 16 | 1706- | ALL | (A) ID=15 | ||
| 018 | I0-91180 112-0 | NUT; BRKT,ENG MTG | 8 | 1706- | ALL | M12 | ||
| 296 | I0-28851 445-0 | BOLT; 3RD C/MBR | 16 | 1706- | ALL | (B) M14X45 | ||
| 205 | I0-91180 114-0 | NUT; 4TH C/MBR | 16 | 1706- | WB7100 | M14 | ||
| 090 | I1-09503 162-0 | WASHER; PL | 40 | 1706- | ALL | ID=19 | ||
| 034 | I8-98369 330-1 | MEMBER; CROSS,3RD | 1 | 1706- | WB5400 | |||
| 131 | I1-09044 090-1 | BOLT; END C/MBR | 12 | 1903- | ALL | (B) M16X50 | ||
| 011 | I8-98294 501-0 | BRACKET; ENG MTG | 2 | 1706- | ALL | |||
| 345 | I8-98328 903-3 | MEMBER; CROSS,5TH | 1 | 1706- | WB7100 | |||
| 344 | I8-98328 903-3 | MEMBER; CROSS,4TH | 1 | 1706- | WB7100 | |||
| 131 | I8-98339 366-0 | BOLT; END C/MBR | 12 | 1706-1902 | ALL | (B) M14X45 | ||
| 298 | I0-28851 440-0 | BOLT; 4TH C/MBR | 16 | 1706- | WB7100 | M14X40 | ||
| 300 | I0-91180 114-0 | NUT; 5TH C/MBR | 16 | 1706- | WB7100 | M14 | ||
| 018 | I0-91180 112-0 | NUT; BRKT,ENG MTG | 8 | 1706- | ALL | M12 | ||
| 024 | I8-97502 718-0 | BRACKET; FRT SPR,FRT | 1 | 1805- | L | ALL | (A) | |
| 453 | I0-91112 818-0 | NUT; V ROD | 20 | 1706- | ALL | M18 |
