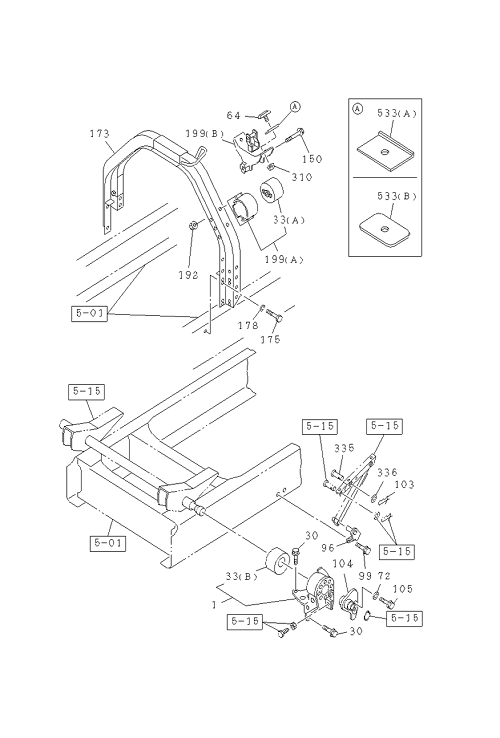

5-10 | CAB MOUNTING; FRAME SIDE
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 533 | I8-98360 227-0 | SPACER; MTG RUBBER | 4 | 1706- | FVM | (B) | ||
| 001 | I8-98309 409-2 | BRACKET; CAB MTG | 1 | 1706- | FVM | CAB SUSPENSION RIGID | ||
| 099 | I0-28661 030-0 | BOLT; BRKT | 2 | 1706- | FVM | M10X30 | ||
| 310 | I0-91180 108-0 | NUT; CUSHION | 4 | 1706- | FVM | M8 | ||
| 064 | I8-98348 662-0 | RUBBER; CUSHION | 4 | 1706- | FVM | |||
| 001 | I8-98272 384-0 | BRACKET; CAB MTG | 1 | 1706- | FVM | CAB SUSPENSION SEMI FLOATING | ||
| 192 | I0-91180 212-0 | NUT; BRKT FIX | 4 | 1706- | FVM | M12 | ||
| 103 | I8-98062 280-0 | PIN; SPLIT,CAB STAY | 1 | 1706- | FVM | L=32.6 | ||
| 336 | I1-09985 183-0 | WASHER; PL,STAY LOCK | 1 | 1706- | FVM | ID=10.5 T=2.0 | ||
| 335 | I1-09744 107-0 | PIN; ADJ,STAY LOCK | 1 | 1706- | FVM | OD=10 L=48 | ||
| 033 | I8-98065 943-0 | BUSHING; RUBBER,CAB MTG BRKT,FRT | 2 | 1706- | FVM | (B) CAB SUSPENSION SEMI FLOATING | ||
| 173 | I8-98272 361-4 | MEMBER; CAB MTG RR | 1 | 1706- | FVM | |||
| 072 | I0-91614 714-0 | WASHER; PL,BRKT TO FRAME | 1 | 1706- | FVM | ID=15 OD=36 | ||
| 030 | I0-28861 450-0 | BOLT; CAB FRT FOOT | 10 | 1706- | FVM | M14X50 | ||
| 178 | I0-91510 612-0 | WASHER; LK,MEMBER | 8 | 1706- | FVM | ID=12.2 | ||
| 033 | I8-98308 225-0 | BUSHING; RUBBER,CAB MTG BRKT,FRT | 2 | 1706- | FVM | (B) CAB SUSPENSION RIGID | ||
| 096 | I1-62500 628-0 | BRACKET; CAB STAY | 1 | 1706- | FVM | |||
| 150 | I0-10956 400-0 | BOLT; CAB MTG RR | 2 | 1706- | FVM | M14X100 | ||
| 033 | I8-98010 759-2 | BUSHING; RUBBER,CAB MTG BRKT,FRT | 2 | 1706- | FVM | (A) CAB SUSPENSION SEMI FLOATING | ||
| 001 | I8-98309 408-1 | BRACKET; CAB MTG | 1 | 1706- | FVM | CAB SUSPENSION RIGID | ||
| 533 | I8-98353 542-0 | SPACER; MTG RUBBER | AR | 1706- | FVM | (A) | ||
| 104 | I8-98330 224-0 | BRACKET; CAB FRAME,CAB FRT MTG | 1 | 1706- | FVM | |||
| 001 | I8-98272 383-0 | BRACKET; CAB MTG | 1 | 1706- | FVM | CAB SUSPENSION SEMI FLOATING | ||
| 105 | I0-28661 435-0 | BOLT; BRKT TO CAB FRAME | 1 | 1706- | FVM | M14X35 | ||
| 175 | I0-20951 240-0 | BOLT; MEMBER TO FRAME | 8 | 1706- | FVM | M12X40 | ||
| 199 | I8-98309 920-0 | BRACKET; CAB RR MTG | 2 | 1706- | FVM | (A) CAB SUSPENSION RIGID | ||
| 199 | I8-98023 692-0 | BRACKET; CAB RR MTG | 2 | 1706- | FVM | (B) | ||
| 199 | I8-98272 387-0 | BRACKET; CAB RR MTG | 2 | 1706- | FVM | (A) CAB SUSPENSION SEMI FLOATING | ||
| 033 | I8-98308 226-0 | BUSHING; RUBBER,CAB MTG BRKT,FRT | 2 | 1706- | FVM | (A) CAB SUSPENSION RIGID |
