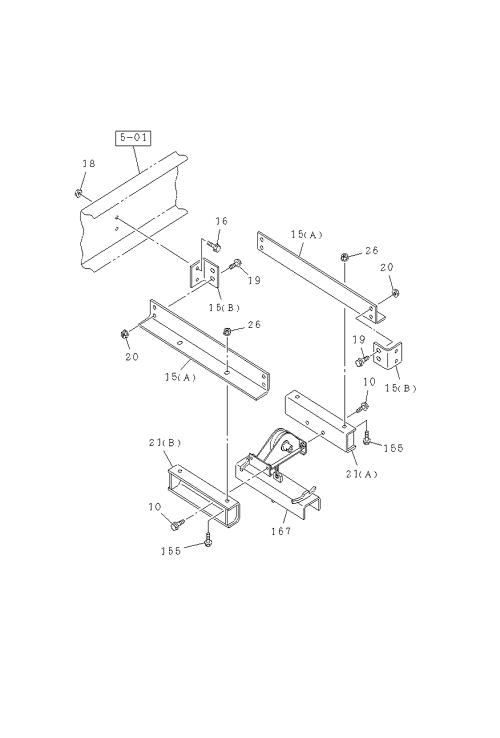

5-30 | SPARE TIRE CARRIER AND COVER
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 167 | I8-98314 445-0 | HANGER; TIRE | 1 | 1706- | FVM | |||
| 026 | I0-91180 212-0 | NUT; BRKT FIX | 4 | 1706- | FVM | M12 | ||
| 021 | I8-98286 294-0 | BRACKET; SPARE TIRE HANGER | 1 | 1706- | FVM | (A) | ||
| 010 | I0-28651 235-0 | BOLT; TIRE HANGER | 4 | 1706- | FVM | M12X35 | ||
| 015 | I8-98286 293-A | MEMBER; CROSS,SPARE TIRE | 2 | 1706- | FVM | (A) | ||
| 015 | I8-98286 292-2 | MEMBER; CROSS,SPARE TIRE | 4 | 1706- | FVM | (B) | ||
| 019 | I0-28651 240-0 | BOLT; C/MBR | 8 | 1706- | FVM | M12X40 | ||
| 020 | I0-91180 212-0 | NUT; C/MBR | 8 | 1706- | FVM | M12 | ||
| 016 | I0-28651 240-0 | BOLT; MEMBER | 8 | 1706- | FVM | M12X40 | ||
| 018 | I0-91180 212-0 | NUT; MEMBER | 8 | 1706- | FVM | M12 | ||
| 155 | I0-28651 240-0 | BOLT; BRKT | 4 | 1706- | FVM | M12X40 | ||
| 021 | I8-98345 068-1 | BRACKET; SPARE TIRE HANGER | 1 | 1706- | FVM | (B) |
