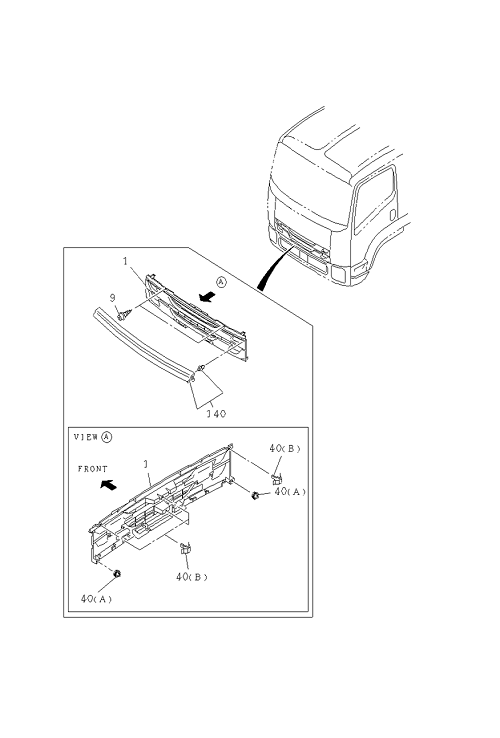

6-03 | RADIATOR GRILLE
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 009 | I0-74160 516-0 | SCREW; RAD GRILLE | 2 | 1706- | FVM | M5X16 TAPPING W/PL WASHER | ||
| 140 | I8-98322 277-0 | SEAL; RAD GRILLE | 1 | 1706- | FVM | |||
| 001 | I8-98346 029-0 | GRILLE; RAD | 1 | 1706- | FVM | |||
| 040 | I8-98025 698-0 | CLIP; RAD GRILLE | 4 | 1706- | FVM | (B) | ||
| 040 | I8-97581 651-2 | CLIP; RAD GRILLE | 2 | 1706- | FVM | (A) |
