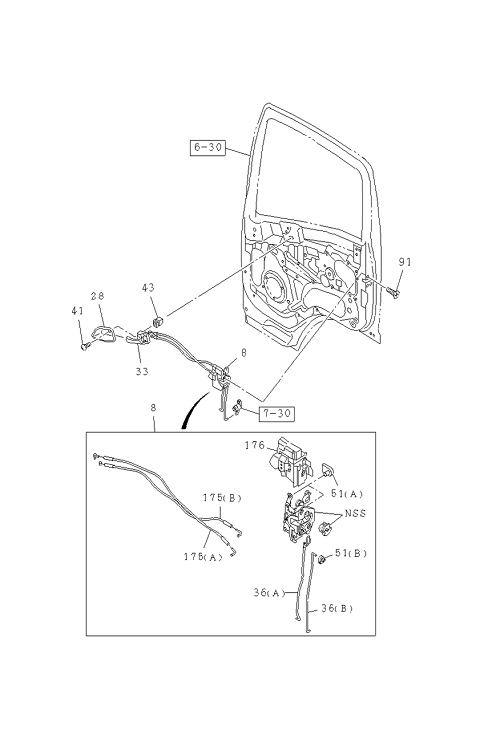

6-32 | FRONT DOOR LOCK AND HANDLE
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 089 | I0-28050 610-0 | BOLT; DOOR OUTSIDE HANDLE | 4 | 1706- | FVM | M6X10 | ||
| 001 | I8-98037 101-2 | HANDLE; OUTSIDE,FRT DOOR | 1 | 1706- | R | FVM | ||
| 018 | I8-98004 343-2 | SCREW; DOOR STRIKER | 4 | 1706- | FVM | M8X20 CK-HEAD | ||
| 043 | I8-94279 078-A | GROMMET; SCREW,INSIDE LEVER,DOOR | 2 | 1706- | FVM | D=8.6X7.7 L=7.5 | ||
| 043 | I8-94279 078-A | GROMMET; SCREW,INSIDE LEVER,DOOR | 2 | 1706- | FVM | D=8.6X7.7 L=7.5 | ||
| 028 | I8-97405 312-0 | BEZEL; INSIDE LEVER,FRT DOOR | 1 | 1706- | L | FVM | DARK GRAY | |
| 001 | I8-98037 101-2 | HANDLE; OUTSIDE,FRT DOOR | 1 | 1706- | R | FVM | ||
| 051 | I8-98058 228-0 | SNAP; FRT DOOR LOCK CONT ROD | 1 | 1706- | R | FVM | (B) BLACK | |
| 139 | I8-98095 813-0 | HOLDER; ROD,DOOR HANDLE | 1 | 1706- | R | FVM | BLACK | |
| 175 | I8-97520 809-0 | CABLE ASM; LOCK CONTROL | 1 | 1706- | L | FVM | (A) | |
| 139 | I8-97333 303-0 | HOLDER; ROD,DOOR HANDLE | 1 | 1706- | L | FVM | WHITE | |
| 176 | I8-98058 239-0 | COVER; DOOR LOCK | 1 | 1706- | L | FVM | ||
| 124 | I8-97422 056-1 | COVER; DOOR PULL | 1 | 1706- | L | FVM | GRAY | |
| 036 | I8-97520 806-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 1706- | R | FVM | (B) | |
| 051 | I8-98058 228-0 | SNAP; FRT DOOR LOCK CONT ROD | 1 | 1706- | R | FVM | (B) BLACK | |
| 091 | I8-98004 342-0 | BOLT; DOOR LOCK | 6 | 1706- | FVM | M6X14.5 | ||
| 008 | I8-97520 628-A | LOCK; DOOR,FRT DOOR | 1 | 1706- | L | FVM | ||
| 033 | I8-97405 310-1 | LEVER ASM; INSIDE,FRT DOOR | 1 | 1706- | L | FVM | DARK GRAY | |
| 008 | I8-97520 628-A | LOCK; DOOR,FRT DOOR | 1 | 1706- | L | FVM | ||
| 014 | I8-98029 173-2 | STRIKER; FRT DOOR | 2 | 1706- | FVM | |||
| 036 | I8-97520 807-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 1706- | L | FVM | (B) | |
| 001 | I6-98037 101-0 | HANDLE; OUTSIDE,FRT DOOR | 1 | 1706- | R | FVM | (IADG) | |
| 001 | I8-98037 100-2 | HANDLE; OUTSIDE,FRT DOOR | 1 | 1706- | L | FVM | ||
| 008 | I8-97520 627-A | LOCK; DOOR,FRT DOOR | 1 | 1706- | R | FVM | ||
| 091 | I8-98004 342-0 | BOLT; DOOR LOCK | 6 | 1706- | FVM | M6X14.5 | ||
| 089 | I0-28050 610-0 | BOLT; DOOR OUTSIDE HANDLE | 4 | 1706- | FVM | M6X10 | ||
| 033 | I8-97405 309-1 | LEVER ASM; INSIDE,FRT DOOR | 1 | 1706- | R | FVM | DARK GRAY | |
| 175 | I8-97520 809-0 | CABLE ASM; LOCK CONTROL | 1 | 1706- | L | FVM | (A) | |
| 001 | I6-98037 100-0 | HANDLE; OUTSIDE,FRT DOOR | 1 | 1706- | L | FVM | (IADG) | |
| 175 | I8-97520 810-0 | CABLE ASM; LOCK CONTROL | 2 | 1706- | FVM | (B) | ||
| 124 | I8-97422 056-1 | COVER; DOOR PULL | 1 | 1706- | L | FVM | GRAY | |
| 036 | I8-97520 804-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 1706- | R | FVM | (A) | |
| 051 | I8-98058 229-0 | SNAP; FRT DOOR LOCK CONT ROD | 1 | 1706- | L | FVM | (B) RED | |
| 051 | I8-98058 227-0 | SNAP; FRT DOOR LOCK CONT ROD | 2 | 1706- | L | FVM | (A) BLUE | |
| 041 | I0-72380 516-0 | SCREW; INSIDE HANDLE | 2 | 1706- | FVM | M5X16 TAPPING HEXALOBULAR | ||
| 014 | I8-98029 173-2 | STRIKER; FRT DOOR | 2 | 1706- | FVM | |||
| 036 | I8-97520 807-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 1706- | L | FVM | (B) | |
| 176 | I8-98058 238-0 | COVER; DOOR LOCK | 1 | 1706- | R | FVM | ||
| 033 | I8-97405 310-1 | LEVER ASM; INSIDE,FRT DOOR | 1 | 1706- | L | FVM | DARK GRAY | |
| 175 | I8-97520 808-0 | CABLE ASM; LOCK CONTROL | 1 | 1706- | R | FVM | (A) | |
| 176 | I8-98058 238-0 | COVER; DOOR LOCK | 1 | 1706- | R | FVM | ||
| 139 | I8-97333 303-0 | HOLDER; ROD,DOOR HANDLE | 1 | 1706- | L | FVM | WHITE | |
| 018 | I8-98004 343-2 | SCREW; DOOR STRIKER | 4 | 1706- | FVM | M8X20 CK-HEAD | ||
| 051 | I8-98058 229-0 | SNAP; FRT DOOR LOCK CONT ROD | 1 | 1706- | L | FVM | (B) RED | |
| 001 | I6-98037 100-0 | HANDLE; OUTSIDE,FRT DOOR | 1 | 1706- | L | FVM | (IADG) | |
| 036 | I8-97520 804-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 1706- | R | FVM | (A) | |
| 124 | I8-97422 055-1 | COVER; DOOR PULL | 1 | 1706- | R | FVM | GRAY | |
| 001 | I6-98037 101-0 | HANDLE; OUTSIDE,FRT DOOR | 1 | 1706- | R | FVM | (IADG) | |
| 036 | I8-97520 805-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 1706- | L | FVM | (A) | |
| 008 | I8-97520 627-A | LOCK; DOOR,FRT DOOR | 1 | 1706- | R | FVM | ||
| 051 | I8-98058 227-0 | SNAP; FRT DOOR LOCK CONT ROD | 2 | 1706- | L | FVM | (A) BLUE | |
| 124 | I8-97422 055-1 | COVER; DOOR PULL | 1 | 1706- | R | FVM | GRAY | |
| 051 | I8-98058 226-0 | SNAP; FRT DOOR LOCK CONT ROD | 2 | 1706- | R | FVM | (A) NATURAL | |
| 139 | I8-98095 813-0 | HOLDER; ROD,DOOR HANDLE | 1 | 1706- | R | FVM | BLACK | |
| 036 | I8-97520 805-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 1706- | L | FVM | (A) | |
| 051 | I8-98058 226-0 | SNAP; FRT DOOR LOCK CONT ROD | 2 | 1706- | R | FVM | (A) NATURAL | |
| 041 | I0-72380 516-0 | SCREW; INSIDE HANDLE | 2 | 1706- | FVM | M5X16 TAPPING HEXALOBULAR | ||
| 036 | I8-97520 806-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 1706- | R | FVM | (B) | |
| 033 | I8-97405 309-1 | LEVER ASM; INSIDE,FRT DOOR | 1 | 1706- | R | FVM | DARK GRAY | |
| 176 | I8-98058 239-0 | COVER; DOOR LOCK | 1 | 1706- | L | FVM | ||
| 001 | I8-98037 100-2 | HANDLE; OUTSIDE,FRT DOOR | 1 | 1706- | L | FVM | ||
| 028 | I8-97405 311-0 | BEZEL; INSIDE LEVER,FRT DOOR | 1 | 1706- | R | FVM | DARK GRAY | |
| 175 | I8-97520 808-0 | CABLE ASM; LOCK CONTROL | 1 | 1706- | R | FVM | (A) | |
| 175 | I8-97520 810-0 | CABLE ASM; LOCK CONTROL | 2 | 1706- | FVM | (B) | ||
| 028 | I8-97405 312-0 | BEZEL; INSIDE LEVER,FRT DOOR | 1 | 1706- | L | FVM | DARK GRAY | |
| 028 | I8-97405 311-0 | BEZEL; INSIDE LEVER,FRT DOOR | 1 | 1706- | R | FVM | DARK GRAY |
