7-50 | FRONT SEAT
GIGA
NEW GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 017 | I8-98092 334-0 | BOLT; RECLINING | 2 | 1706- | FVM | (A) M8X20 | ||
| 360 | I8-98062 663-A | SCREW; PARCEL | 4 | 1706- | FVM | (C) M5 | ||
| 398 | I1-75538 207-A | NUT; STAND | 4 | 1706- | FVM | M8 | ||
| 126 | I8-97854 900-0 | BUSHING; HINGE,RECLINING | 1 | 1706- | FVM | (B) | ||
| 100 | I8-98286 009-0 | COVER; HINGE | 1 | 1706- | FVM | |||

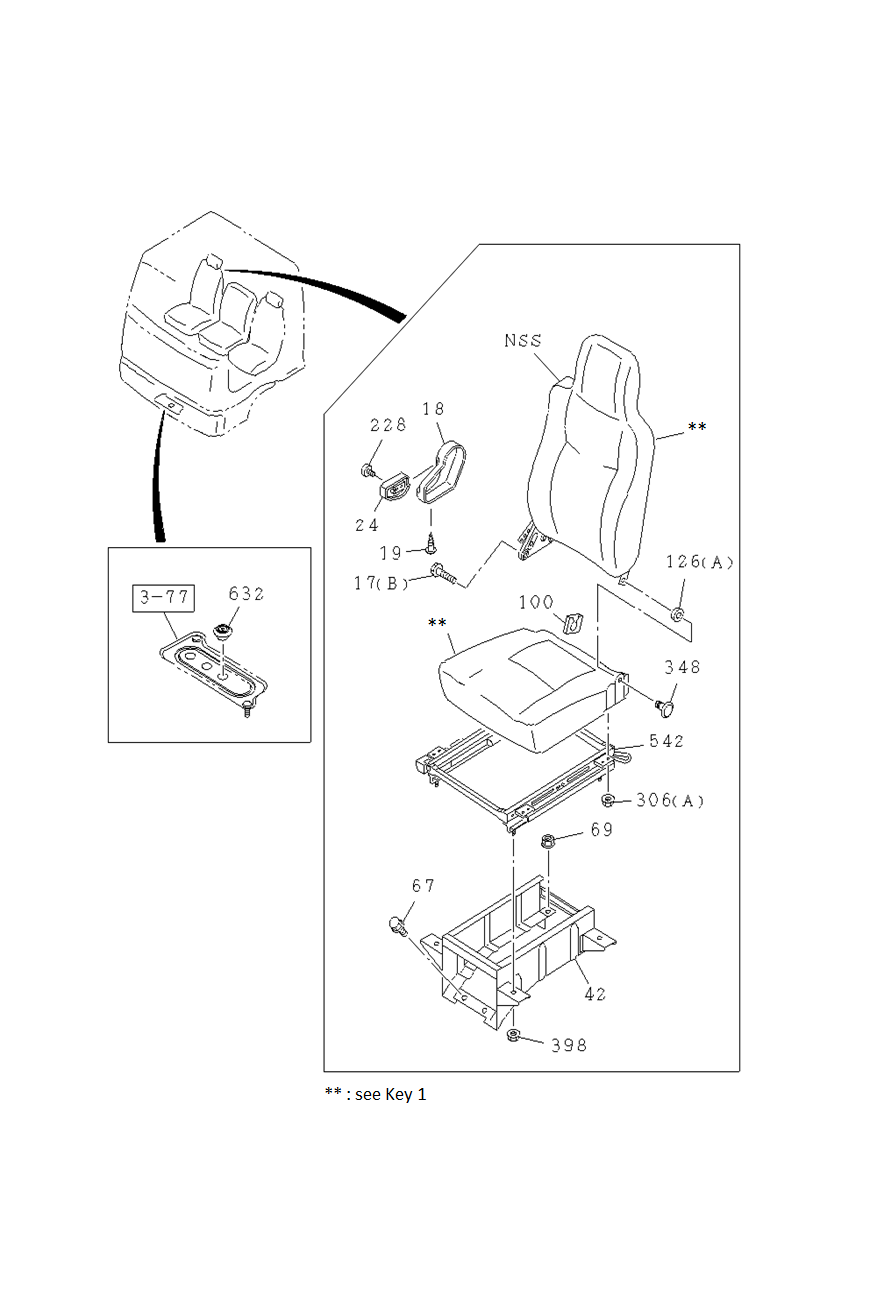

| 001 | I7-31011 314-A | SEAT ASM; DRVR | 1 | 1706- | FVM | DRIVER | ||

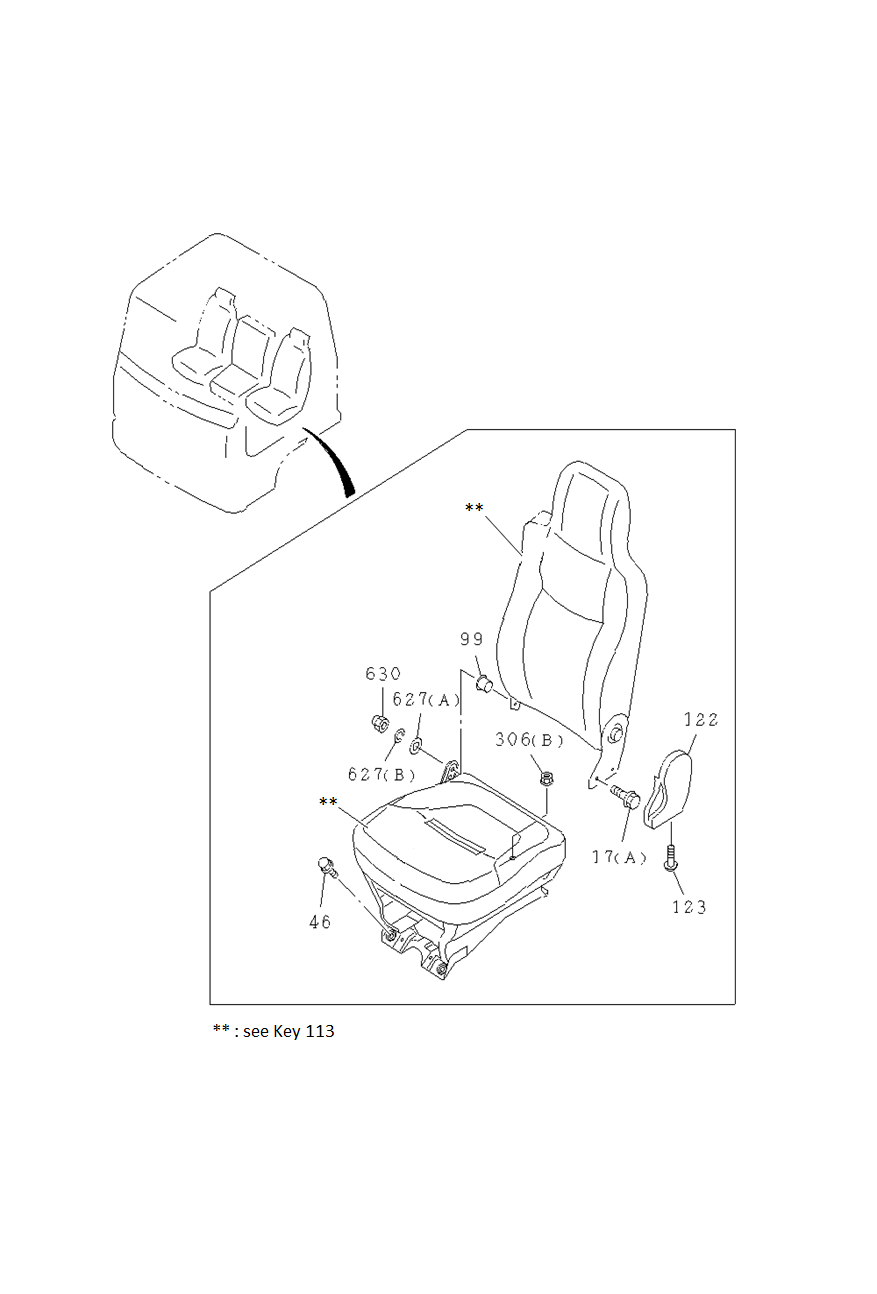

| 113 | I7-31031 312-A | SEAT ASM; PSG | 1 | 1706- | FVR | PASSENGER | ||
| 627 | I8-98063 224-0 | WASHER; FRT SEAT | 1 | 1706- | FVM | (B) | ||
| 126 | I8-98286 007-0 | BUSHING; HINGE,RECLINING | 1 | 1706- | FVM | (A) | ||
| 533 | I8-97417 263-0 | LID; PARCEL BOX | 1 | 1706- | FVM | GRAY | ||
| 017 | I8-98062 661-0 | BOLT; RECLINING | 2 | 1706- | FVM | (B) M10X20 | ||
| 632 | I8-94119 796-0 | GROMMET | 1 | 1706- | FVM | OD=24 | ||
| 506 | I8-97409 980-1 | CAP; PARCEL BOX | 2 | 1706- | FVM | GRAY | ||
| 018 | I7-32211 311-A | COVER; RECLINING | 1 | 1706- | FVM | GRAY | ||
| 536 | I1-72538 187-0 | RUBBER; CUSHION | 2 | 1706- | FVM | |||
| 360 | I8-98062 663-A | SCREW; PARCEL | 4 | 1706- | FVM | (C) M5 | ||
| 228 | I8-98062 662-0 | SCREW; KNOB | 1 | 1706- | FVM | M4 | ||
| 534 | I1-72538 190-0 | STRIKER; PARCEL BOX | 1 | 1706- | FVM | |||
| 627 | I8-98063 223-0 | WASHER; FRT SEAT | 1 | 1706- | FVM | (A) | ||
| 365 | I1-72538 312-0 | LOCK ASM; SEAT | 1 | 1706- | FVM | |||
| 306 | I0-91180 110-0 | NUT; SEAT ADJ | 2 | 1706- | FVM | (B) M10 | ||
| 113 | I7-31031 312-A | SEAT ASM; PSG | 1 | 1706- | FVR | PASSENGER | ||
| 158 | I1-75518 209-1 | BUSHING; LINK ARM | 2 | 1706- | FVM | |||
| 360 | I0-70040 416-0 | SCREW; PARCEL | 6 | 1706- | FVM | (B) M4X16 | ||
| 306 | I1-75538 207-A | NUT; SEAT ADJ | 8 | 1706- | FVM | (A) M8 | ||
| 042 | I1-75558 604-3 | STAND; DRIVER SEAT | 1 | 1706- | FVM | |||

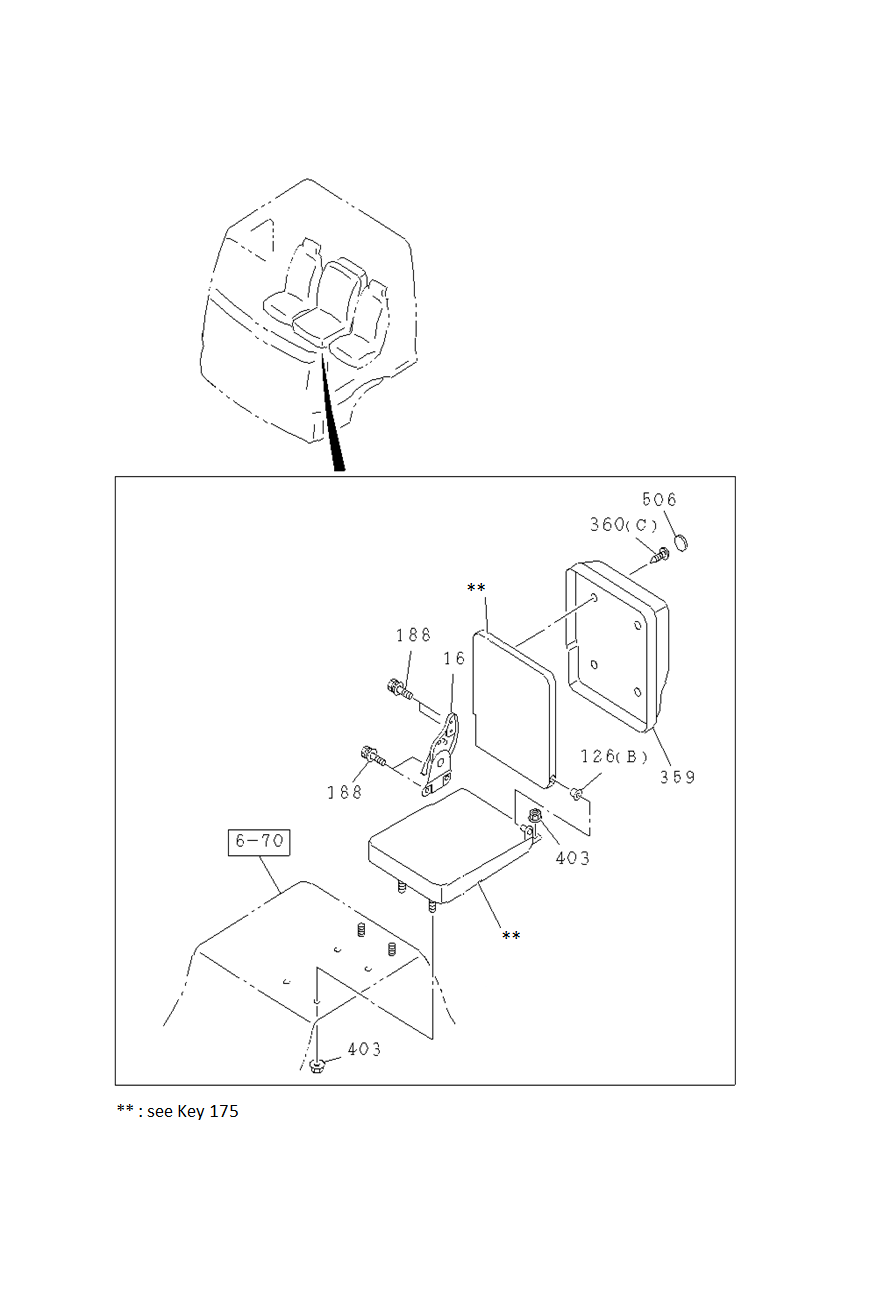

| 175 | I7-31021 312-A | SEAT ASM; FRT CTR | 1 | 1706- | FVR | CENTER | ||
| 018 | I7-32211 311-A | COVER; RECLINING | 1 | 1706- | FVM | GRAY | ||
| 046 | I0-28451 020-0 | BOLT; STAND TO FLOOR | 2 | 1706- | FVM | M10X20 | ||
| 017 | I8-98092 334-0 | BOLT; RECLINING | 2 | 1706- | FVM | (A) M8X20 | ||
| 046 | I0-28451 020-0 | BOLT; STAND TO FLOOR | 2 | 1706- | FVM | M10X20 | ||
| 630 | I8-98063 225-0 | NUT; CAP | 1 | 1706- | FVM | M8 | ||
| 529 | I1-75518 262-0 | PIN; LINK | 1 | 1706- | FVM | |||
| 126 | I8-98286 007-0 | BUSHING; HINGE,RECLINING | 1 | 1706- | FVM | (A) | ||
| 024 | I7-32212 311-A | KNOB; RECLINING,FRT,SEAT | 1 | 1706- | FVM | GRAY | ||
| 201 | I1-75518 289-1 | CABLE; ADJ | 1 | 1706- | FVM | (B) FOR RIGHT L=605 | ||
| 471 | I8-98107 869-0 | LEVER; SEAT ADJ | 1 | 1706- | FVM | |||
| 188 | I1-75198 053-0 | BOLT; BACK TO CUSHION | 4 | 1706- | FVM | M10X16 | ||
| 016 | I1-75418 062-1 | ADJUSTER ASM; RECLINING | 1 | 1706- | FVM | |||

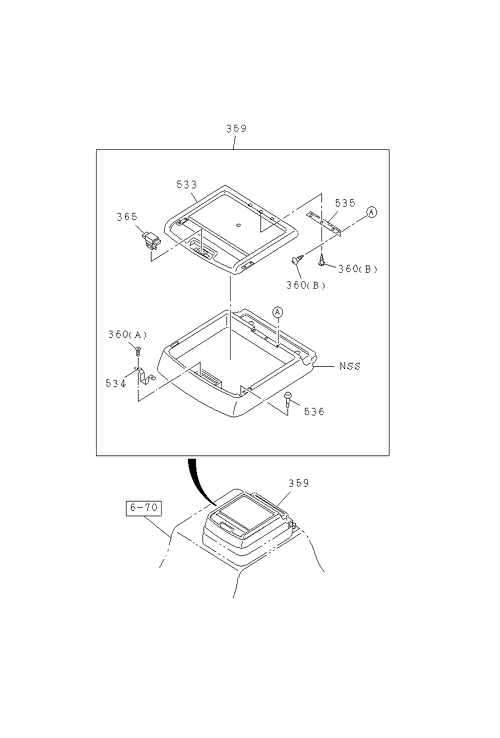

| 359 | I8-97417 261-0 | BOX; PARCEL | 1 | 1706- | FVM | GRAY | ||
| 158 | I1-75518 209-1 | BUSHING; LINK ARM | 2 | 1706- | FVM | |||
| 536 | I1-72538 187-0 | RUBBER; CUSHION | 2 | 1706- | FVM | |||
| 123 | I8-98070 026-0 | SCREW; COVER,RECLINING | 1 | 1706- | FVM | M5 | ||
| 122 | I7-32221 311-A | COVER; ADJ,RECLINING | 1 | 1706- | FVM | GRAY | ||

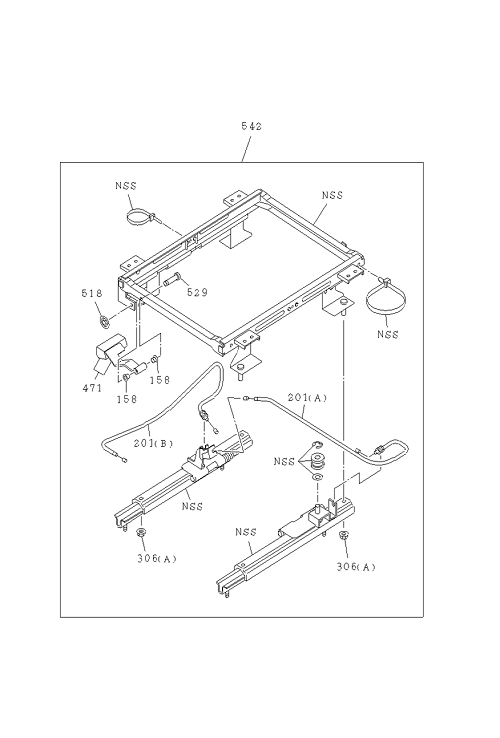

| 542 | I8-98291 653-0 | ADJUSTER ASM; SEAT SLIDE | 1 | 1706- | FVM | |||
| 627 | I8-98063 223-0 | WASHER; FRT SEAT | 1 | 1706- | FVM | (A) | ||
| 019 | I8-98062 663-A | SCREW; COVER | 1 | 1706- | FVM | M5 | ||
| 518 | I1-75518 263-0 | NUT; TILT ADJ | 1 | 1706- | FVM | |||
| 123 | I8-98070 026-0 | SCREW; COVER,RECLINING | 1 | 1706- | FVM | M5 | ||
| 542 | I8-98291 653-0 | ADJUSTER ASM; SEAT SLIDE | 1 | 1706- | FVM | |||
| 069 | I0-91180 110-0 | NUT; FRT SEAT | 2 | 1706- | FVM | M10 | ||
| 042 | I1-75558 604-3 | STAND; DRIVER SEAT | 1 | 1706- | FVM | |||
| 403 | I0-91180 108-0 | NUT; CENTER SEAT | 4 | 1706- | FVM | M8 | ||
| 024 | I7-32212 311-A | KNOB; RECLINING,FRT,SEAT | 1 | 1706- | FVM | GRAY | ||
| 533 | I8-97417 263-0 | LID; PARCEL BOX | 1 | 1706- | FVM | GRAY | ||
| 632 | I8-94119 796-0 | GROMMET | 1 | 1706- | FVM | OD=24 | ||
| 535 | I1-72448 264-1 | HINGE; PARCEL BOX | 1 | 1706- | FVM | |||
| 100 | I8-98286 009-0 | COVER; HINGE | 1 | 1706- | FVM | |||
| 306 | I0-91180 110-0 | NUT; SEAT ADJ | 2 | 1706- | FVM | (B) M10 | ||
| 017 | I8-98062 661-0 | BOLT; RECLINING | 2 | 1706- | FVM | (B) M10X20 | ||
| 126 | I8-97854 900-0 | BUSHING; HINGE,RECLINING | 1 | 1706- | FVM | (B) | ||
| 627 | I8-98063 224-0 | WASHER; FRT SEAT | 1 | 1706- | FVM | (B) | ||
| 016 | I1-75418 062-1 | ADJUSTER ASM; RECLINING | 1 | 1706- | FVM | |||
| 306 | I1-75538 207-A | NUT; SEAT ADJ | 8 | 1706- | FVM | (A) M8 | ||
| 529 | I1-75518 262-0 | PIN; LINK | 1 | 1706- | FVM | |||
| 535 | I1-72448 264-1 | HINGE; PARCEL BOX | 1 | 1706- | FVM | |||
| 359 | I8-97417 261-0 | BOX; PARCEL | 1 | 1706- | FVM | GRAY | ||
| 099 | I8-98112 751-0 | BUSHING; SEAT BACK | 1 | 1706- | FVM | |||
| 019 | I8-98062 663-A | SCREW; COVER | 1 | 1706- | FVM | M5 | ||
| 201 | I1-75518 289-1 | CABLE; ADJ | 1 | 1706- | FVM | (B) FOR RIGHT L=605 | ||
| 201 | I1-75518 288-0 | CABLE; ADJ | 1 | 1706- | FVM | (A) FOR LEFT L=667 | ||
| 122 | I7-32221 311-A | COVER; ADJ,RECLINING | 1 | 1706- | FVM | GRAY | ||
| 534 | I1-72538 190-0 | STRIKER; PARCEL BOX | 1 | 1706- | FVM | |||
| 099 | I8-98112 751-0 | BUSHING; SEAT BACK | 1 | 1706- | FVM | |||
| 403 | I0-91180 108-0 | NUT; CENTER SEAT | 4 | 1706- | FVM | M8 | ||
| 360 | I0-70040 416-0 | SCREW; PARCEL | 6 | 1706- | FVM | (B) M4X16 | ||
| 518 | I1-75518 263-0 | NUT; TILT ADJ | 1 | 1706- | FVM | |||
| 360 | I0-70040 514-0 | SCREW; PARCEL | 2 | 1706- | FVM | (A) M5X14 TAPPING CK-HEAD | ||
| 067 | I0-28451 020-0 | BOLT; FRT SEAT TO BODY | 2 | 1706- | FVM | M10X20 | ||
| 348 | I8-98286 008-0 | BOLT; HINGE,SEAT | 1 | 1706- | FVM | |||
| 001 | I7-31011 314-A | SEAT ASM; DRVR | 1 | 1706- | FVM | DRIVER | ||
| 188 | I1-75198 053-0 | BOLT; BACK TO CUSHION | 4 | 1706- | FVM | M10X16 | ||
| 201 | I1-75518 288-0 | CABLE; ADJ | 1 | 1706- | FVM | (A) FOR LEFT L=667 | ||
| 348 | I8-98286 008-0 | BOLT; HINGE,SEAT | 1 | 1706- | FVM | |||
| 175 | I7-31021 312-A | SEAT ASM; FRT CTR | 1 | 1706- | FVR | CENTER | ||
| 630 | I8-98063 225-0 | NUT; CAP | 1 | 1706- | FVM | M8 | ||
| 398 | I1-75538 207-A | NUT; STAND | 4 | 1706- | FVM | M8 | ||
| 360 | I0-70040 514-0 | SCREW; PARCEL | 2 | 1706- | FVM | (A) M5X14 TAPPING CK-HEAD | ||
| 228 | I8-98062 662-0 | SCREW; KNOB | 1 | 1706- | FVM | M4 | ||
| 067 | I0-28451 020-0 | BOLT; FRT SEAT TO BODY | 2 | 1706- | FVM | M10X20 | ||
| 506 | I8-97409 980-1 | CAP; PARCEL BOX | 2 | 1706- | FVM | GRAY | ||
| 069 | I0-91180 110-0 | NUT; FRT SEAT | 2 | 1706- | FVM | M10 | ||
| 471 | I8-98107 869-0 | LEVER; SEAT ADJ | 1 | 1706- | FVM | |||
| 365 | I1-72538 312-0 | LOCK ASM; SEAT | 1 | 1706- | FVM |
