8-26 | ELECTRICAL CONTROL AND OTHER PARTS
GIGA
NEW GIGA FVM

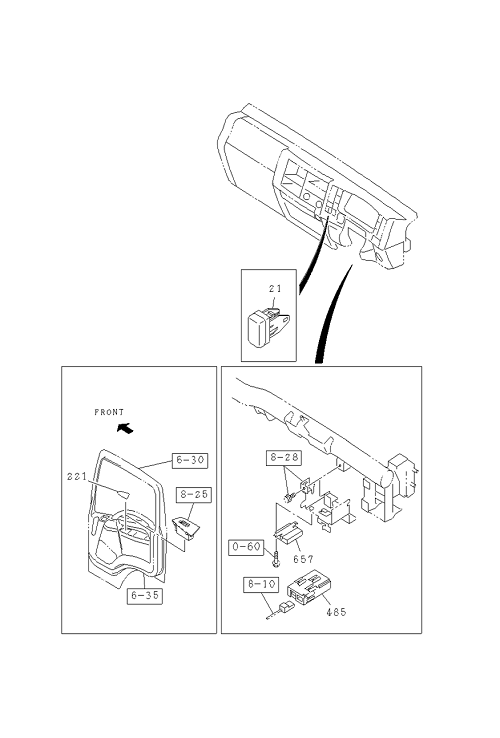

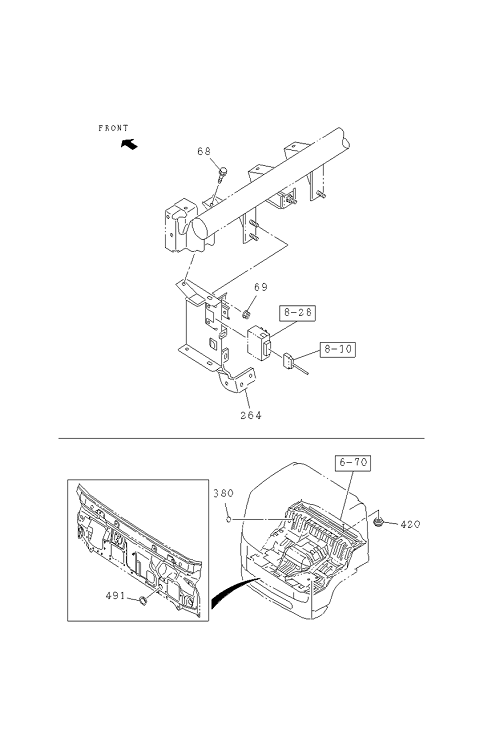

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 380 | I1-76798 029-0 | SEAL | 1 | 1706- | FVM | OD=25 BLACK | ||
| 069 | I0-91180 106-0 | NUT; BRKT | 1 | 1706- | FVM | M6 | ||
| 221 | I8-98029 916-2 | COVER; HOLE,DOOR LOCK SW | 1 | 1706- | FVM | |||
| 420 | I8-94122 971-0 | PLUG; SWITCH | 1 | 1706- | FVM | OD=35 | ||
| 221 | I8-98029 915-2 | COVER; HOLE,DOOR LOCK SW | 1 | 1706- | FVM | |||
| 068 | I0-28650 616-0 | BOLT; BRKT | 1 | 1706- | FVM | M6X16 | ||
| 021 | I8-98025 954-1 | COVER; HOLE | 1 | 1706- | FVM | |||
| 264 | I8-98246 453-0 | BRACKET; CONT UNIT | 1 | 1706- | FVM | |||
| 485 | I8-98232 695-0 | CONTROL UNIT; SPEED SENSOR | 1 | 1706- | FVM | |||
| 491 | I8-98054 651-A | PLUG; HOLE,CONT UNIT | 1 | 1706- | FVM | OD=60 | ||
| 657 | I8-97948 260-2 | CONTROL UNIT; MIMAMORI | 1 | 1706- | FVM |
