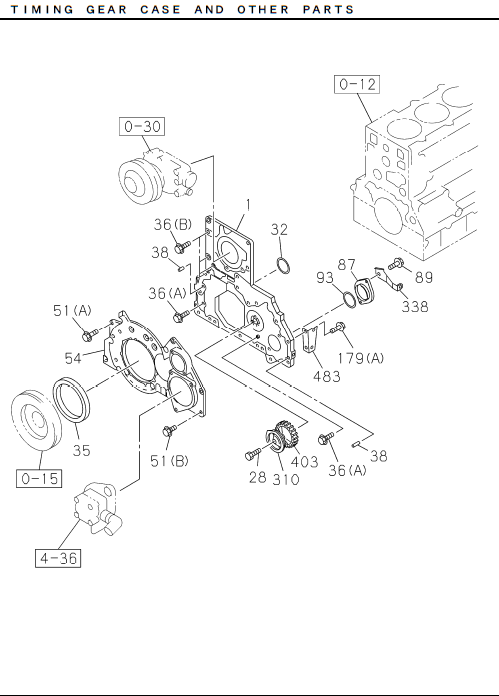

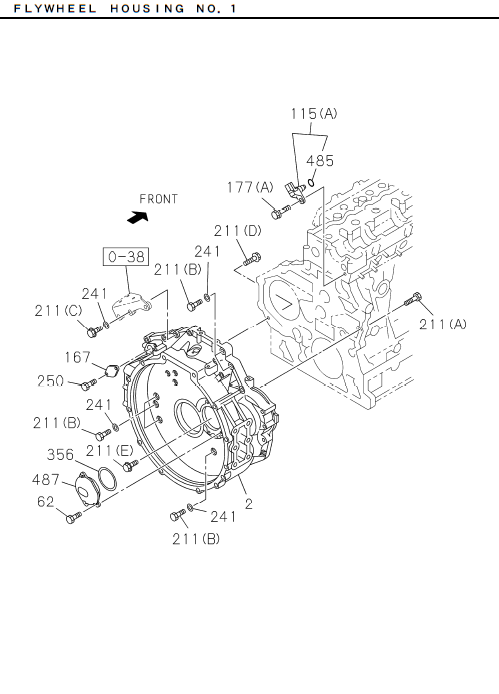

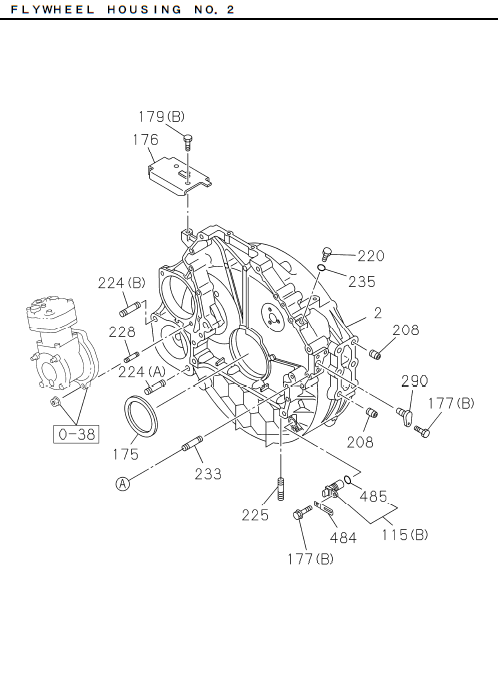

0-20 | TIMING GEAR CASE AND FLYWHEEL HOUSING
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 115 | I8-98019 024-0 | SENSOR; REVOLUTION,ENG SPD | 1 | 1707- | ALL | (A) | ||
| 310 | I8-94394 806-0 | SHAFT; IDLE GEAR | 1 | 1707- | ALL | |||
| 224 | I0-44011 435-0 | STUD; STARTER | 1 | 1707- | ALL | (A) M14X35 L=56 | ||
| 167 | I1-11219 163-0 | COVER; OIL | 1 | 1707- | ALL | |||
| 038 | I8-94483 674-0 | PIN; GEAR CASE COVER | 2 | 1707- | ALL | L=22 | ||
| 175 | I8-98334 339-0 | SEAL; OIL,CR/SHF,RR | 1 | 1707- | ALL | ID=104 OD=139 | ||
| 241 | I8-94393 140-1 | WASHER; PL,HSG | 12 | 1707- | ALL | ID=12.5 OD=22 | ||
| 036 | I0-28650 830-0 | BOLT; GEAR CASE | 2 | 1707- | ALL | (A) M8X30 | ||
| 235 | I8-98251 344-0 | GASKET; PLUG GEAR CHECK HOLE | 1 | 1707- | ALL | ID=12.2 OD=17.2 | ||
| 001 | I8-94396 434-7 | CASE; TIMING GEAR | 1 | 1707- | ALL | |||
| 224 | I0-44011 445-0 | STUD; STARTER | 1 | 1707- | ALL | (B) M14X45 L=66 | ||
| 485 | I8-97369 404-0 | GASKET; SENSOR | 2 | 1707- | ALL | ID=14.2 OD=18.8 | ||
| 087 | I8-94396 370-0 | COVER; TACHOMETER DRIVE | 1 | 1707- | ALL | |||
| 051 | I0-28050 840-0 | BOLT; GEAR CASE COVER | 11 | 1707- | ALL | (A) M8X40 | ||
| 211 | I8-94393 995-0 | BOLT; HSG | 1 | 1707- | ALL | (E) M14X27 | ||
| 032 | I8-97028 748-1 | GASKET; GEAR CASE TO C/BL | 1 | 1707- | ALL | ID=35.1 | ||
| 035 | I8-98334 482-0 | SEAL; OIL,CRANKSHAFT FRT | 1 | 1707- | ALL | ID=104 OD=137 | ||
| 233 | I1-09302 112-0 | STUD; BRKT | 1 | 1801-1805 | ALL | M12X15 & M12X33 L=82 | ||
| 179 | I0-28050 816-0 | BOLT; BRKT | 1 | 1707- | ALL | (B) M8X16 | ||
| 211 | I0-16956 270-0 | BOLT; HSG | 8 | 1707- | ALL | (B) M12X70 | ||
| 208 | I9-43269 009-1 | DOWEL; ENG FOOT | 4 | 1707- | ALL | |||
| 177 | I0-28050 612-0 | BOLT; SENSOR | 1 | 1707- | ALL | (A) M6X12 | ||
| 179 | I0-28050 820-0 | BOLT; BRKT | 2 | 1707- | ALL | (A) M8X20 | ||
| 483 | I8-94394 405-1 | BRACKET; WATER DUCT | 1 | 1707- | ALL | |||
| 211 | I0-16956 290-0 | BOLT; HSG | 3 | 1707- | ALL | (C) M12X90 | ||
| 487 | I8-98023 824-1 | COVER; HOLE | 1 | 1707- | ALL | |||
| 250 | I0-28080 818-0 | BOLT; COVER,OIL | 2 | 1707- | ALL | M8X18 | ||
| 089 | I0-28080 818-0 | BOLT; ELBOW | 2 | 1707- | ALL | M8X18 | ||
| 211 | I0-16856 260-0 | BOLT; HSG | 1 | 1707- | ALL | (A) M12X60 | ||
| 054 | I8-94393 304-1 | COVER; GEAR CASE | 1 | 1707- | ALL | |||
| 484 | I5-09700 307-1 | CLIP; BAND | 1 | 1707- | ALL | L=80 | ||
| 028 | I8-94399 256-0 | BOLT; DRIVE GEAR | 3 | 1707- | ALL | M8X28 | ||
| 093 | I1-09623 465-0 | GASKET; ELBOW | 1 | 1707- | ALL | ID=47.7 | ||
| 338 | I1-82699 889-0 | BRACKET; CLIP,HARNESS | 1 | 1707- | ALL | |||
| 036 | I0-28050 835-0 | BOLT; GEAR CASE | 4 | 1707- | ALL | (B) M8X35 | ||
| 220 | I5-13265 001-0 | PLUG; GEAR CHECK HOLE | 1 | 1707- | ALL | M12X10 | ||
| 211 | I0-28151 050-0 | BOLT; HSG | 1 | 1707- | ALL | (D) M10X50 | ||
| 051 | I0-28650 820-0 | BOLT; GEAR CASE COVER | 6 | 1707- | ALL | (B) M8X20 | ||
| 177 | I0-28050 616-0 | BOLT; SENSOR | 2 | 1707- | ALL | (B) M6X16 | ||
| 176 | I8-98076 212-0 | BRACKET; HARNESS | 1 | 1707- | ALL | |||
| 115 | I8-97606 943-0 | SENSOR; REVOLUTION,ENG SPD | 1 | 1707- | ALL | (B) | ||
| 002 | I8-97609 996-9 | HOUSING; FLYWHEEL | 1 | 1707- | ALL | |||
| 062 | I0-28080 814-0 | BOLT; COVER | 3 | 1707- | ALL | M8X14 | ||
| 228 | I0-44011 235-0 | STUD; AIR CMPR | 1 | 1707- | ALL | M12X35 L=53 | ||
| 225 | I8-94396 512-0 | STUD; OIL PAN | 4 | 1707- | ALL | M8X7.5 M8X24.5 L=38 | ||
| 403 | I8-94395 943-1 | GEAR; IDLE,FRONT | 1 | 1707- | ALL | Z=33 | ||

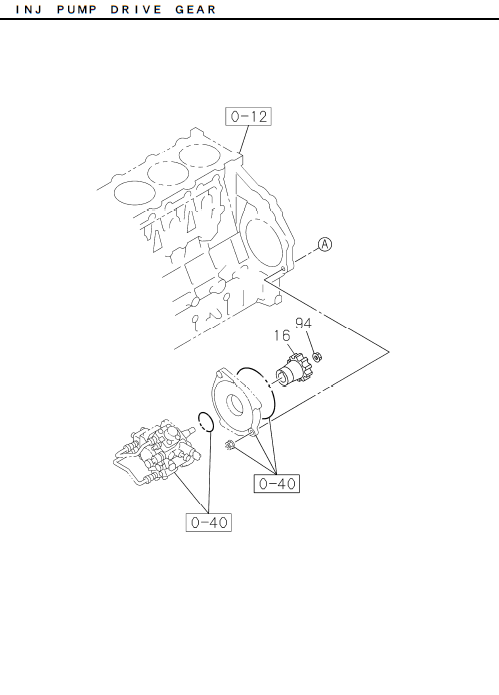

| 016 | I8-97601 153-1 | GEAR; INJ PUMP DRIVE | 1 | 1707- | ALL | Z=35 | ||
| 290 | I8-97848 832-0 | PLUG; SENSOR HOLE | 1 | 1707- | ALL | |||
| 356 | I8-94394 186-0 | GASKET; COVER | 1 | 1707- | ALL | ID=110 | ||
| 094 | I0-91180 214-0 | NUT; GEAR | 1 | 1707- | ALL | M14 |
