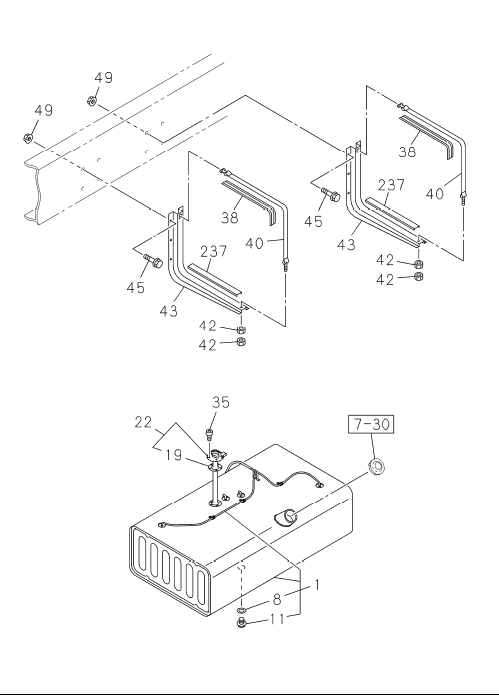

1-40 | FUEL TANK
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 040 | I8-97520 472-A | BELT; SUPPORT,FUEL TANK | 2 | 2106- | FVR | |||
| 035 | I0-36220 410-0 | SCREW; FUEL TANK UNIT | 5 | 1811- | GVR | |||
| 038 | I8-97922 175-0 | INSULATION; SUPPORT BELT | 2 | 1811- | GVR | |||
| 011 | I8-97913 628-0 | PLUG; DRAIN,FUEL TANK | 1 | 1707- | ALL | |||
| 043 | I8-98272 028-1 | BRACKET; FUEL TANK | 2 | 1811- | GVR | |||
| 043 | I8-97520 474-A | BRACKET; FUEL TANK | 2 | 2106- | FVR | |||
| 049 | I0-91180 212-0 | NUT; BRKT | 12 | 1707- | ALL | M12 | ||
| 050 | I7-56401 302-A | BRACKET | 2 | 2106- | FVR | |||
| 019 | I1-83149 003-0 | GASKET; FUEL TANK UNIT | 1 | 1811- | GVR | ID=45 OD=67 | ||
| 237 | I8-98272 681-0 | GASKET; BRKT TO FUEL TANK | 2 | 1707- | ALL | |||
| 022 | I8-97556 968-0 | UNIT; FUEL TANK | 1 | 2005-2105 | FVR | |||
| 008 | I8-97913 627-0 | GASKET; DRAIN PLUG,FUEL TANK | 1 | 1707- | ALL | |||
| 001 | I7-56200 321-A | TANK; FUEL | 1 | 2106- | FVR | L=1220 H=325 D=535 | ||
| 001 | I8-98272 677-0 | TANK; FUEL | 1 | 1707-2105 | FVR | L=1100 H=323 D=633 200L | ||
| 022 | I8-98365 119-0 | UNIT; FUEL TANK | 1 | 1811- | GVR | |||
| 052 | I0-28051 240-0 | BOLT;HEX,FLANGE | 12 | 2106- | FVR | |||
| 001 | I8-98272 679-0 | TANK; FUEL | 1 | 1811- | GVR | L=1275 H=604 D=504 370L | ||
| 022 | I8-98099 320-0 | UNIT; FUEL TANK | 1 | 2106- | FVR | |||
| 042 | I0-91110 510-0 | NUT; SUPPORT BELT | 4 | 1707- | ALL | M10 | ||
| 040 | I8-97922 750-1 | BELT; SUPPORT,FUEL TANK | 2 | 1707- | FVR | |||
| 038 | I8-97922 749-0 | INSULATION; SUPPORT BELT | 2 | 1707- | FVR | |||
| 043 | I8-98272 027-1 | BRACKET; FUEL TANK | 2 | 1707- | FVR | |||
| 045 | I0-28651 240-0 | BOLT; BRKT,FUEL TANK | 12 | 2106- | FVR | |||
| 022 | I1-83141 084-1 | UNIT; FUEL TANK | 1 | 1707-2004 | FVR | |||
| 035 | I0-36220 512-0 | SCREW; FUEL TANK UNIT | 5 | 1707- | FVR | M5X12 W/LK WASHER | ||
| 045 | I0-28051 245-0 | BOLT; BRKT,FUEL TANK | 12 | 1707- | ALL | M12X45 | ||
| 019 | I5-83148 001-0 | GASKET; FUEL TANK UNIT | 1 | 1707- | FVR | ID=42 OD=71 | ||
| 040 | I8-97922 748-1 | BELT; SUPPORT,FUEL TANK | 2 | 1811- | GVR | |||
| 051 | I7-56401 303-A | BRACKET | 2 | 2106- | FVR |
