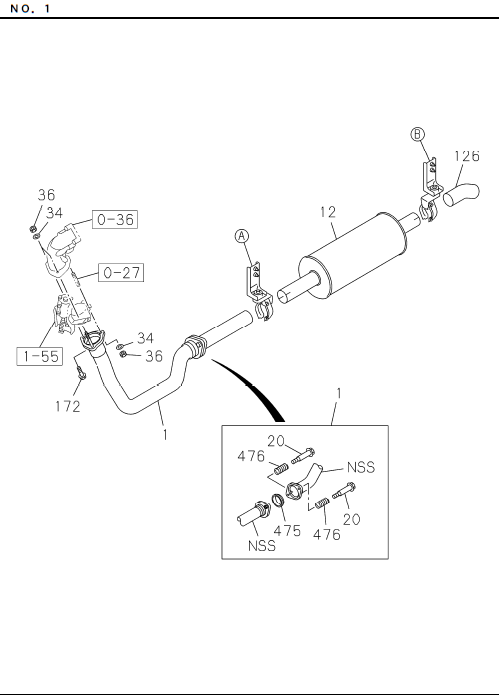

1-50 | EXHAUST PIPE AND SILENCER
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 475 | I8-98317 846-0 | BEARING; SEAL,VIBNON,EXH PIPE | 1 | 1707- | ALL | |||
| 012 | I8-97696 284-A | SILENCER ASM; EXH | 1 | 1707- | ALL | |||
| 105 | I7-05110 010-A | NUT; CLAMP | 2 | 1707- | ALL | M10 | ||
| 070 | I0-28051 070-0 | BOLT; BRKT | 1 | 1707- | ALL | M10X70 | ||
| 062 | I8-97948 228-0 | TUBE; DIST,BRKT | 1 | 1707- | ALL | |||
| 118 | I7-05110 010-A | NUT; SILENCER MTG BRKT | 2 | 1707- | ALL | M10 | ||
| 107 | I0-28651 035-0 | BOLT; BRKT | 2 | 1707- | ALL | M10X35 | ||

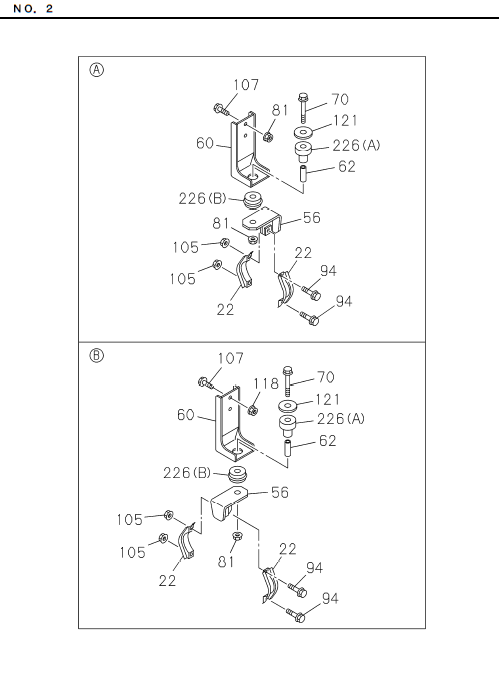

| 226 | I8-97948 226-0 | RUBBER; CUSHION | 1 | 1707- | ALL | (A) | ||
| 121 | I1-09503 154-2 | WASHER; PL,BRKT | 1 | 1707- | ALL | ID=11 OD=54 | ||
| 034 | I1-09500 030-0 | WASHER; EXH PIPE | 3 | 1707- | ALL | ID=13 OD=24 DISH | ||
| 476 | I8-98317 926-0 | SPRING; VIBNON,EXH PIPE | 2 | 1707- | ALL | |||
| 126 | I8-98314 047-A | PIPE; EXH,RR | 1 | 1811- | GVR | |||
| 172 | I1-09000 293-0 | BOLT | 1 | 1707- | ALL | M12X120 | ||
| 020 | I8-98317 923-0 | BOLT; FLANGE,EXH PIPE | 2 | 1707- | ALL | |||
| 001 | I8-97696 283-A | PIPE; EXH | 1 | 1707- | ALL | |||
| 022 | I8-98314 424-0 | CLAMP; EXH PIPE | 2 | 1707- | ALL | |||
| 126 | I8-98314 048-A | PIPE; EXH,RR | 1 | 1707- | FVR | |||
| 060 | I8-98314 418-A | BRACKET; FRAME TO BRKT | 1 | 1707- | ALL | |||
| 094 | I0-28651 040-0 | BOLT; CLAMP | 2 | 1707- | ALL | M10X40 | ||
| 036 | I1-09400 010-0 | NUT; EXH PIPE | 3 | 1707- | ALL | M12 | ||
| 226 | I8-97948 227-0 | RUBBER; CUSHION | 1 | 1707- | ALL | (B) | ||
| 126 | I8-98314 048-A | PIPE; EXH,RR | 1 | 1707- | FVR-HP | |||
| 056 | I8-98314 420-A | BRACKET; CLAMP,EXH PIPE | 1 | 1707- | ALL | |||
| 081 | I7-05110 010-A | NUT; BRKT | 1 | 1707- | ALL | M10 |
