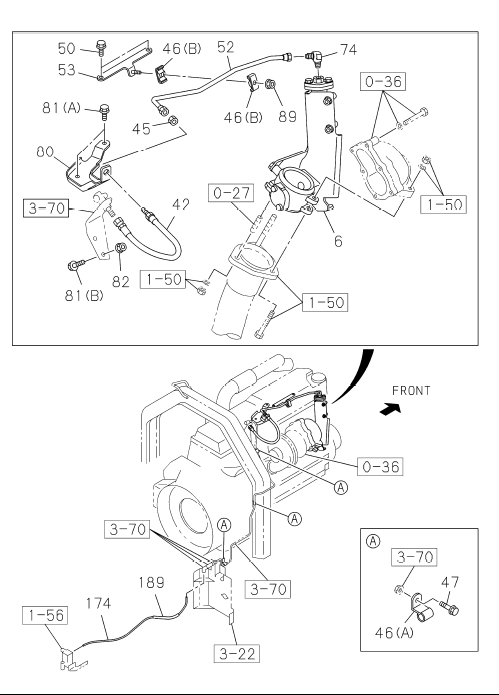

1-55 | EXHAUST BRAKE VALVE AND CONTROL CYLINDER
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 074 | I1-09650 430-0 | CONNECTOR; EXH BRK VLV | 1 | 1707- | ALL | M12 & PT1/4 ELBOW | ||
| 046 | I1-09700 603-0 | CLIP; AIR PIPE | 3 | 1707- | ALL | (A) ID=6 H=20 L=20 | ||
| 080 | I8-98182 767-A | BRACKET; FLEX HOSE | 1 | 1707- | ALL | |||
| 089 | I0-91180 106-0 | NUT; BRKT | 1 | 1707- | ALL | M6 | ||
| 189 | I1-87411 019-0 | TUBE; CORRUGATE | 1 | 1707- | ALL | ID=10 | ||
| 174 | I1-87411 006-0 | TUBE; NYLON | 1 | 1707- | ALL | OD=8 | ||
| 047 | I0-28650 820-0 | BOLT; CLIP | 3 | 1707- | ALL | M8X20 | ||
| 045 | I9-09840 280-0 | NUT; FLEX HOSE | 1 | 1707- | ALL | M12 | ||
| 042 | I1-09363 621-0 | HOSE; FLEX,EXH BRK | 1 | 1707- | ALL | L=370 | ||
| 046 | I8-98148 996-2 | CLIP; AIR PIPE | 2 | 1707- | ALL | (B) ID=11 & 11 L=19 | ||
| 052 | I8-97603 547-A | PIPE ASM; AIR FLEX HOSE | 1 | 1707- | ALL | |||
| 053 | I8-98182 766-A | BRACKET; CLIP | 1 | 1707- | ALL | |||
| 082 | I0-91180 108-0 | NUT; HOSE BRKT | 2 | 1707- | ALL | M8 | ||
| 081 | I0-28050 812-A | BOLT; HOSE BRKT | 2 | 1707- | ALL | (A) M8X12 | ||
| 081 | I0-28650 820-0 | BOLT; HOSE BRKT | 2 | 1707- | ALL | (B) M8X20 | ||
| 050 | I0-28050 812-A | BOLT; BRKT | 2 | 1707- | ALL | M8X12 | ||
| 006 | I8-97602 527-1 | VALVE; EXH BRAKE | 1 | 1707- | ALL |
