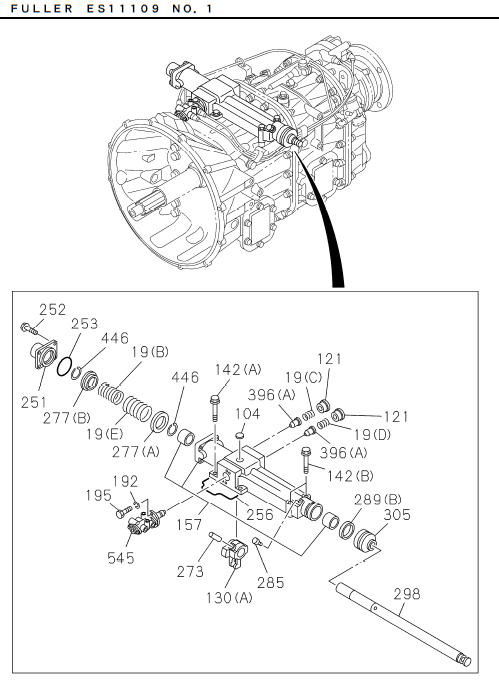

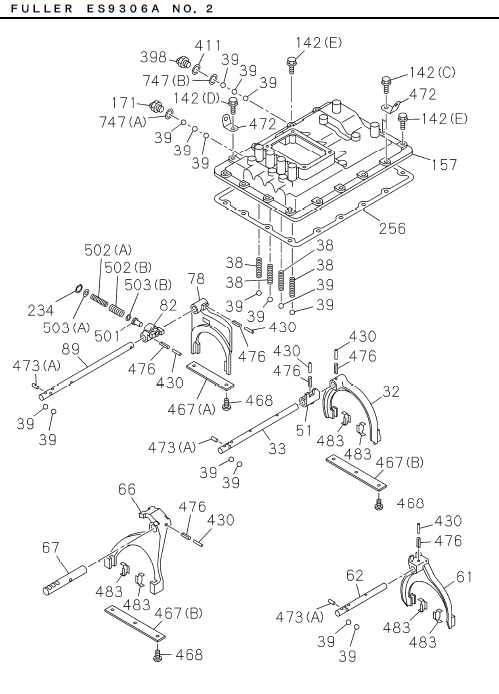

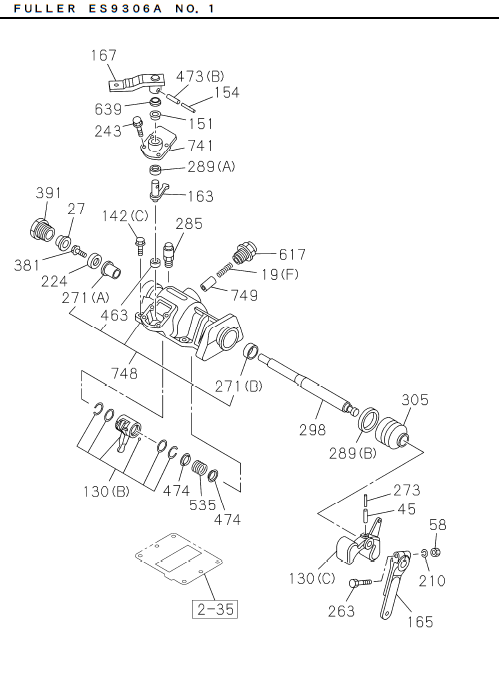

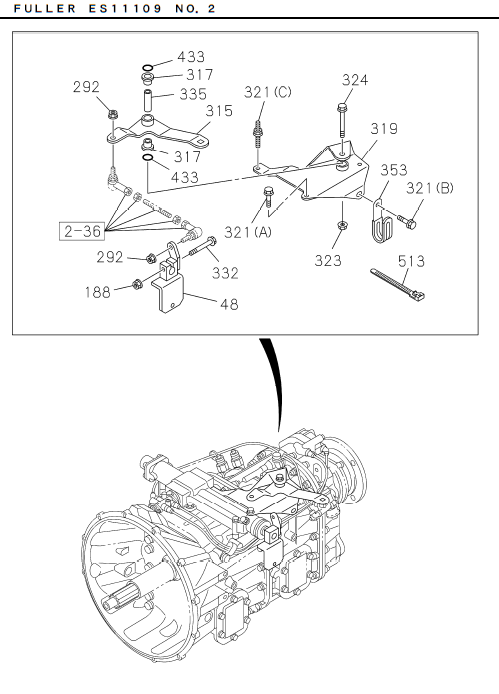

2-30 | GEAR SHIFTER AND QUADRANT BOX
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 497 | I1-33119 308-0 | BALL; SWITCH | 2 | 1707- | 9SP | |||
| 157 | IE-88802 580-0 | BOX; QUAD,TRANS | 1 | 1707- | 9SP | |||
| 130 | IE-10107 000-0 | LEVER; SHIFT,INTERNAL | 1 | 1707- | 6SP | (B) | ||
| 285 | IE-33159 480-0 | BREATHER; AIR,QUAD BOX | 1 | 1707- | 6SP | |||
| 277 | IE-88765 670-0 | PLATE; SPRING SEAT | 1 | 1707- | 9SP | (B) | ||
| 030 | I1-33119 309-0 | PIN; INTER LK | 1 | 1707- | 9SP | |||
| 171 | IE-43048 090-0 | SWITCH; NEUTRAL | 1 | 1707- | 6SP | |||
| 244 | IE-30801 000-0 | WASHER; LK,COVER | 2 | 1707- | 9SP | |||
| 049 | IE-88754 970-0 | ARM; SHIFT,4TH & 5TH | 1 | 1707- | 9SP | |||
| 130 | I1-33521 184-0 | LEVER; SHIFT,INTERNAL | 1 | 1707- | 9SP | (A) | ||
| 532 | IE-88723 280-0 | PLATE; SHIFT FORK | 1 | 1707- | 9SP | (A) | ||
| 082 | IE-33163 000-0 | BLOCK; SHIFT,REV | 1 | 1707- | 6SP | |||
| 157 | IE-30022 930-0 | BOX; QUAD,TRANS | 1 | 1707- | 6SP | |||
| 513 | I1-09707 183-0 | CLIP; BAND | 1 | 1707- | 9SP | L=350 | ||
| 391 | I8-98359 820-0 | PLUG; SW HOLE | 1 | 1707- | 6SP | |||
| 058 | I1-33119 571-0 | NUT | 1 | 1707- | 6SP | |||
| 054 | IE-88702 770-0 | PIN; SPR,SHIFT BLOCK | 1 | 1707- | 9SP | |||
| 172 | IE-55685 100-0 | GASKET; NEUTRAL SW | 1 | 1707- | 9SP | |||
| 027 | I8-98358 700-0 | BUSHING; SHIFT ROD | 1 | 1707- | 9SP | |||
| 251 | IE-88804 770-0 | COVER; SIDE | 1 | 1707- | 9SP | |||
| 089 | IE-43026 360-0 | ROD; SHIFT,REV | 1 | 1707- | 6SP | |||
| 363 | IE-81091 000-0 | BOLT; AIR CYL | 3 | 1707- | 9SP | |||
| 061 | IE-61390 000-0 | ARM; SHIFT,3RD & 4TH | 1 | 1707- | 6SP | |||
| 538 | IE-88702 590-0 | COVER; DETENT | 1 | 1707- | 9SP | |||
| 748 | IE-10098 000-0 | BOX SUB ASM; QUADRANT | 1 | 1707- | 6SP | |||
| 398 | IE-27715 320-0 | SWITCH; REV LAMP | 1 | 1707- | 9SP | |||
| 243 | IE-80801 000-0 | BOLT; COVER | 2 | 1707- | 9SP | |||
| 335 | I1-33659 220-0 | COLLAR; DIST,RELAY LEVER ASM | 1 | 1707- | 9SP | |||
| 463 | IE-33620 750-0 | BUSHING; PINION,QUAD BOX | 1 | 1707- | 6SP | |||
| 411 | IE-15900 000-0 | GASKET; REV LAMP SW | 1 | 1707- | 6SP | |||
| 502 | IE-22834 000-0 | SPRING; PLUNGER | 1 | 1707- | 6SP | (B) | ||
| 019 | IE-33060 700-0 | SPRING; COIL COMP | 1 | 1707- | 6SP | (F) | ||
| 019 | IE-88815 920-0 | SPRING; COIL COMP | 1 | 1707- | 9SP | (C) | ||
| 396 | I8-98350 777-0 | PLUNGER; SHIFT ROD | 1 | 1707- | 9SP | (B) | ||
| 502 | IE-43050 370-0 | SPRING; PLUNGER | 1 | 1707- | 6SP | (A) | ||
| 324 | I0-28051 060-0 | BOLT; SHAFT | 1 | 1707- | 9SP | M10X60 | ||
| 359 | IE-14345 000-0 | GASKET; AIR CYL | 1 | 1707- | 9SP | (E) | ||
| 352 | IE-88726 260-0 | ROD; SHIFT,RANGE CHANGE | 1 | 1707- | 9SP | |||
| 503 | IE-33162 980-0 | WASHER; PLUNGER | 1 | 1707- | 6SP | (B) | ||
| 396 | I1-33549 384-0 | PLUNGER; SHIFT ROD | 2 | 1707- | 9SP | (A) | ||
| 019 | IE-88763 450-0 | SPRING; COIL COMP | 1 | 1707- | 9SP | (E) | ||
| 394 | IE-27715 320-0 | SWITCH; RANGE CHANGE | 1 | 1707- | 9SP | |||
| 253 | I1-33544 055-0 | GASKET; SIDE COVER | 1 | 1707- | 9SP | |||
| 019 | IE-88748 970-0 | SPRING; COIL COMP | 1 | 1707- | 9SP | (A) | ||
| 319 | I1-33657 816-0 | BRACKET; SELECT LEVER | 1 | 1707- | 9SP | |||
| 446 | IE-88744 500-0 | RING; SNAP,SPR SEAT | 2 | 1707- | 9SP | |||
| 271 | IE-30036 830-0 | BUSHING; QUAD BOX | 1 | 1707- | 6SP | (B) | ||
| 467 | IE-33157 570-0 | RETAINER; SHIFT ROD | 1 | 1707- | 6SP | (A) | ||
| 188 | I0-91180 110-0 | NUT; SELECT LEVER | 1 | 1707- | 9SP | M10 | ||
| 151 | IE-33620 680-0 | BUSHING; SELECT LEVER | 1 | 1707- | 6SP | |||
| 019 | IE-88815 930-0 | SPRING; COIL COMP | 1 | 1707- | 9SP | (D) | ||
| 025 | IE-88807 600-0 | ARM; SHIFT,2ND & 3RD | 1 | 1707- | 9SP | |||
| 353 | I8-94224 891-1 | CLIP; AIR HOSE | 1 | 1707- | 9SP | L=36 | ||
| 273 | IE-88713 780-0 | PIN; SPR,STOPPER | 1 | 1707- | 9SP | |||
| 321 | I0-28151 060-0 | BOLT; BRKT,RELAY LEVER | 1 | 1707- | 9SP | (A) M10X60 | ||
| 271 | IE-30036 840-0 | BUSHING; QUAD BOX | 1 | 1707- | 6SP | (A) | ||
| 033 | IE-43045 610-0 | ROD; SHIFT,LOW & 2ND | 1 | 1707- | 6SP | |||
| 210 | I1-33119 568-0 | WASHER; SHIFT LEVER | 1 | 1707- | 6SP | |||
| 252 | IE-80847 000-0 | BOLT; SIDE COVER | 4 | 1707- | 9SP | |||
| 356 | IE-88751 790-0 | PISTON; AIR CYL | 1 | 1707- | 9SP | |||
| 476 | IE-16028 000-0 | PIN; SHIFT ROD | 6 | 1707- | 6SP | |||
| 038 | IE-43050 280-0 | SPRING; DETENT | 4 | 1707- | 6SP | |||
| 292 | I1-09440 062-1 | NUT; LINK ROD | 2 | 1707- | 9SP | M8 | ||
| 361 | IE-88754 300-0 | CYLINDER; AIR,SHIFT | 1 | 1707- | 9SP | |||
| 142 | IE-33019 400-0 | BOLT; QUAD BOX | 3 | 1707- | 6SP | (D) | ||
| 350 | IE-88736 910-0 | SCREW; SHIFT ARM | 1 | 1707- | 9SP | |||
| 062 | IE-43014 710-0 | ROD; SHIFT,3RD & 4TH | 1 | 1707- | 6SP | |||
| 305 | I1-33549 233-0 | BOOT; LEVER SHAFT | 1 | 1707- | ALL | |||
| 051 | IE-33051 800-0 | BLOCK; SHIFT,1ST & 2ND | 1 | 1707- | 6SP | |||
| 513 | I1-09707 107-1 | CLIP; BAND | 4 | 1707- | 9SP | L=600 | ||
| 195 | IE-80634 000-0 | BOLT | 2 | 1707- | 9SP | |||
| 617 | IE-33060 600-0 | PLUG | 1 | 1707- | 6SP | |||
| 224 | IE-30036 860-0 | WASHER; PL,QUAD BOX | 1 | 1707- | 6SP | |||
| 167 | IE-33057 800-0 | LEVER; SELECT,EXTERNAL | 1 | 1707- | 6SP | |||
| 273 | I8-98373 750-0 | PIN; SPR,STOPPER | 1 | 1707- | 6SP | |||
| 315 | I8-98032 139-0 | LEVER; SELECT | 1 | 1707- | 9SP | |||
| 067 | IE-43014 720-0 | ROD; SHIFT,5TH & 6TH | 1 | 1707- | 6SP | |||
| 192 | IE-30602 000-0 | WASHER; PL | 2 | 1707- | 9SP | |||
| 165 | IE-33056 600-0 | LEVER; SHIFT | 1 | 1707- | 6SP | |||
| 359 | IE-88712 580-0 | GASKET; AIR CYL | 1 | 1707- | 9SP | (C) | ||
| 381 | I8-98359 822-0 | BOLT | 1 | 1707- | 6SP | |||
| 142 | IE-81091 000-0 | BOLT; QUAD BOX | 2 | 1707- | 9SP | (A) | ||
| 078 | IE-33158 970-0 | ARM; SHIFT,REV | 1 | 1707- | 6SP | |||
| 298 | I8-98346 607-0 | SHAFT; SHIFT LEVER | 1 | 1707- | 9SP | |||
| 066 | IE-61380 000-0 | ARM; SHIFT,5TH & 6TH | 1 | 1707- | 6SP | |||
| 304 | I1-33511 534-0 | BLOCK; SHIFT SHAFT | 1 | 1707- | 9SP | |||
| 359 | I1-33569 043-0 | GASKET; AIR CYL | 1 | 1707- | 9SP | (D) | ||
| 470 | IE-88705 900-0 | GASKET; SPRING COVER | 1 | 1707- | 9SP | |||
| 142 | I1-33549 524-0 | BOLT; QUAD BOX | 8 | 1707- | 9SP | (B) M10X35 | ||
| 256 | I1-33549 391-0 | GASKET; QUAD BOX TO TRANS CASE | 1 | 1707- | 9SP | |||
| 289 | I1-33542 061-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 1707- | ALL | (B) | ||
| 410 | IE-55685 100-0 | GASKET; REV SW | 1 | 1707- | 9SP | |||
| 130 | IE-30037 150-0 | LEVER; SHIFT,INTERNAL | 1 | 1707- | 6SP | (C) | ||
| 048 | I8-98031 634-0 | LEVER; 4TH,SHIFT | 1 | 1707- | 9SP | |||
| 358 | IE-91602 000-0 | NUT; SHIFT ROD | 1 | 1707- | 9SP | |||
| 261 | I8-98349 521-0 | ROD; GEAR CONT | 1 | 1707- | 9SP | |||
| 433 | I1-09623 594-0 | GASKET; BUSHING | 2 | 1707- | 9SP | |||
| 154 | IE-13528 000-0 | PIN; SELECT LEVER | 1 | 1707- | 6SP | |||
| 473 | IE-16028 000-0 | PIN; ROLL | 1 | 1707- | 6SP | (B) | ||
| 121 | IE-88803 010-0 | PLUG; DETENT SPR | 2 | 1707- | 9SP | |||
| 332 | I0-29261 060-0 | BOLT; 4TH,SHIFT LEVER | 1 | 1707- | 9SP | |||
| 323 | I0-91180 110-0 | NUT; LK,SELECT LEVER | 1 | 1707- | 9SP | M10 | ||
| 473 | IE-20104 400-0 | PIN; ROLL | 3 | 1707- | 6SP | (A) | ||
| 747 | IE-43017 180-0 | RETAINER | 1 | 1707- | 6SP | (A) | ||
| 467 | IE-43012 790-0 | RETAINER; SHIFT ROD | 2 | 1707- | 6SP | (B) | ||
| 741 | IE-33058 900-0 | COVER; QUAD BOX | 1 | 1707- | 6SP | |||
| 032 | IE-33157 720-0 | ARM; SHIFT,1ST & 2ND | 1 | 1707- | 6SP | |||
| 163 | IE-33058 800-0 | LEVER; SELECT,INTERNAL | 1 | 1707- | 6SP | |||
| 392 | IE-55685 100-0 | GASKET; PLUG & SW | 1 | 1707- | 9SP | |||
| 321 | I0-28751 025-0 | BOLT; BRKT,RELAY LEVER | 1 | 1707- | 9SP | (B) M10X25 | ||
| 747 | IE-43017 190-0 | RETAINER | 1 | 1707- | 6SP | (B) | ||
| 027 | IE-30036 880-0 | BUSHING; SHIFT ROD | 1 | 1707- | 6SP | |||
| 091 | IE-88786 650-0 | PIN; SPR,SHIFT ARM | 1 | 1707- | 9SP | |||
| 277 | IE-88765 660-0 | PLATE; SPRING SEAT | 1 | 1707- | 9SP | (A) | ||
| 483 | IE-22767 500-0 | BUSHING; SHIFT ARM | 6 | 1707- | 6SP | |||
| 545 | IE-88800 550-0 | VALVE; POPPET | 1 | 1707- | 9SP | |||
| 142 | IE-33013 500-0 | BOLT; QUAD BOX | 14 | 1707- | 6SP | (E) | ||
| 503 | IE-33162 950-0 | WASHER; PLUNGER | 1 | 1707- | 6SP | (A) | ||
| 639 | IE-33059 000-0 | CAP | 1 | 1707- | 6SP | |||
| 019 | IE-88713 950-0 | SPRING; COIL COMP | 1 | 1707- | 9SP | (B) | ||
| 171 | I1-82440 123-0 | SWITCH; NEUTRAL | 1 | 1707- | 9SP | |||
| 359 | IE-88752 920-0 | GASKET; AIR CYL | 1 | 1707- | 9SP | (B) | ||
| 142 | IE-33013 300-0 | BOLT; QUAD BOX | 4 | 1707- | 6SP | (C) | ||
| 474 | I8-98359 833-0 | WASHER; SPRING STOPPER | 2 | 1707- | 6SP | |||
| 285 | IE-20142 100-0 | BREATHER; AIR,QUAD BOX | 1 | 1707- | 9SP | |||
| 359 | IE-88730 080-0 | GASKET; AIR CYL | 1 | 1707- | 9SP | (A) | ||
| 749 | I8-98359 827-0 | ACTUATOR | 1 | 1707- | 6SP | |||
| 321 | I8-97178 725-0 | BOLT; BRKT,RELAY LEVER | 1 | 1707- | 9SP | (C) M10X35 L=65 | ||
| 535 | IE-30039 010-0 | SPRING; LEVER | 1 | 1707- | 6SP | |||
| 501 | IE-33162 960-0 | PLUNGER; SHIFT BLOCK | 1 | 1707- | 6SP | |||
| 468 | IE-23304 300-0 | SCREW; CAP,RET | 8 | 1707- | 6SP | |||
| 347 | IE-88727 370-0 | ARM; SHIFT,RANGE CHANGE | 1 | 1707- | 9SP | |||
| 104 | IE-88714 860-0 | PLUG; PLATE | 1 | 1707- | 9SP | |||
| 243 | IE-33620 720-0 | BOLT; COVER | 4 | 1707- | 6SP | |||
| 398 | IE-43048 080-0 | SWITCH; REV LAMP | 1 | 1707- | 6SP | |||
| 532 | I1-33539 080-0 | PLATE; SHIFT FORK | 1 | 1707- | 9SP | (B) | ||
| 317 | I1-09330 119-0 | BUSHING; LEVER | 2 | 1707- | 9SP | |||
| 430 | IE-13528 000-0 | PIN; SPR,SHIFT ROD | 6 | 1707- | 6SP | |||
| 263 | IE-81007 000-0 | BOLT; LEVER | 1 | 1707- | 6SP | |||
| 234 | IE-21736 000-0 | RING; SNAP | 1 | 1707- | 6SP | |||
| 045 | I8-98373 749-0 | PIN; SPRING,SHIFT LEVER | 1 | 1707- | 6SP | |||
| 001 | IE-88754 990-0 | ARM; SHIFT,1ST & REV | 1 | 1707- | 9SP | |||
| 039 | IE-10714 000-0 | BALL; DETENT | 16 | 1707- | 6SP | |||
| 472 | IE-33013 800-0 | EYE; LIFTING | 3 | 1707- | 6SP | |||
| 298 | IE-33064 800-0 | SHAFT; SHIFT LEVER | 1 | 1707- | 6SP | |||
| 256 | IE-43008 540-0 | GASKET; QUAD BOX TO TRANS CASE | 1 | 1707- | 6SP | |||
| 289 | IE-33620 690-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 1707- | 6SP | (A) |
