2-85 | POWER TAKE OFF CONTROL
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

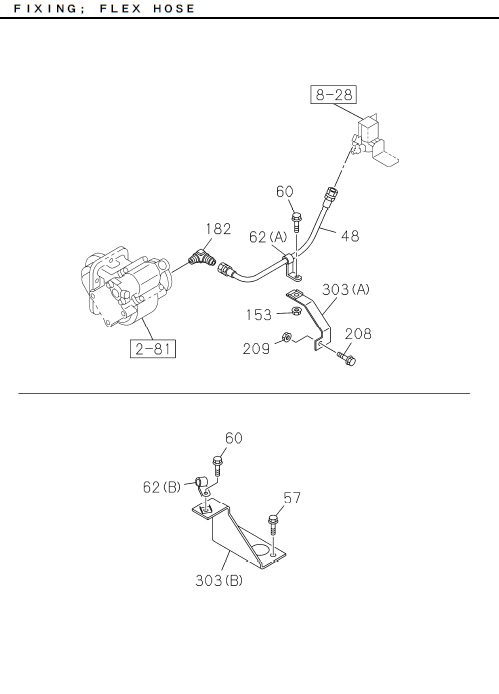

| 062 | I1-09700 813-0 | CLIP; PIPE,AIR | 1 | 1707- | FVR-HP | (A) ID=13 H=18 L=20; FOR 9SPEED | ||
| 060 | I0-28650 820-0 | BOLT; CLIP FIX | 1 | 1707- | FVR | M8X20 | ||
| 057 | I0-28751 020-0 | BOLT; BRKT | 2 | 1707- | FVR | M10X20; FOR 6SPEED | ||
| 303 | I8-98353 159-1 | BRACKET; CLIP | 1 | 1707- | FVR | (B) FOR 6SPEED | ||
| 208 | I0-28650 830-0 | BOLT; BRKT,AIR PIPE | 1 | 1707- | FVR | M8X30 | ||
| 062 | I0-95234 635-0 | CLIP; PIPE,AIR | 1 | 1707- | FVR | (B) ID=7 L=20; FOR 6SPEED | ||
| 303 | I8-98353 156-0 | BRACKET; CLIP | 1 | 1707- | FVR | (A) | ||

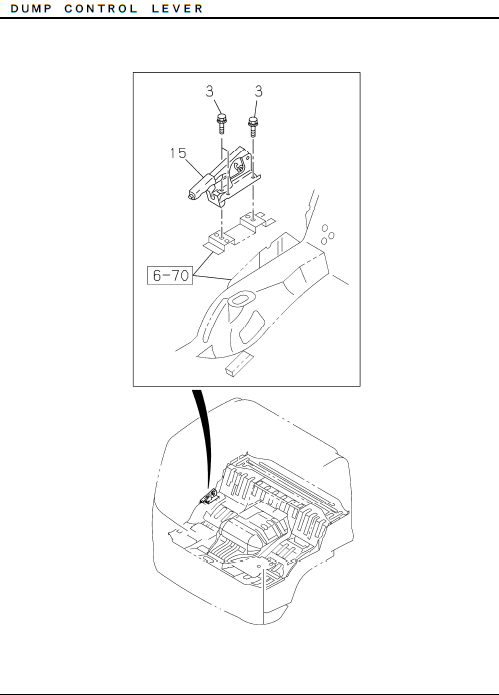

| 015 | I1-79996 092-0 | LEVER ASM; PTO CONT | 1 | 1707- | FVR | DUMP CONTROL LEVER<RC4> | ||
| 003 | I8-94279 207-0 | BOLT; BRKT,DUMP CONT LEVER | 3 | 1707- | FVR | M8X20.5 W/LK&PL WASHER | ||
| 209 | I0-91180 108-0 | NUT; BRKT,AIR PIPE | 1 | 1707- | FVR | M8 | ||
| 048 | I8-98330 429-0 | HOSE; FLEX,PTO | 1 | 1707- | FVR-HP | L=640; FOR 9SPEED | ||
| 153 | I0-91180 108-0 | NUT; CLIP | 1 | 1707- | FVR | M8 | ||
| 182 | I0-92124 306-0 | CONNECTOR; FLARE | 1 | 1707- | FVR-HP | M12 & PT1/8; FOR 9SPEED |
