3-26 | TRAILER CONTROL
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 106 | I1-47477 975-1 | BRACKET; VLV | 1 | 1811- | GVR | (A) L=125 | ||
| 238 | I1-09660 964-0 | CONNECTOR | 1 | 1811- | GVR | (B) DIN8 & R3/8 STRAIGHT | ||
| 129 | I7-05110 010-A | NUT; VLV | 2 | 1811- | GVR | (B) M10 | ||

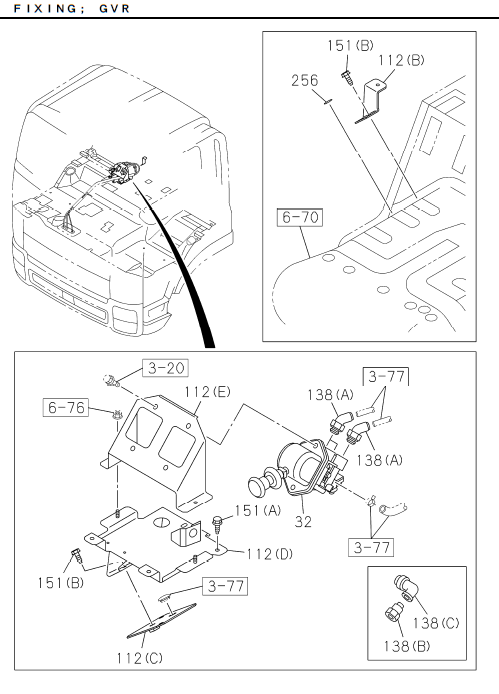

| 112 | I8-97484 509-1 | BRACKET; CONT VLV | 1 | 1811- | GVR | (E) | ||
| 112 | I8-98314 605-0 | BRACKET; CONT VLV | 1 | 1707- | ALL | (B) | ||
| 238 | I1-09660 965-0 | CONNECTOR | 3 | 1811- | GVR | (C) DIN12 & R3/8 STRAIGHT | ||
| 238 | I1-09661 026-0 | CONNECTOR | 1 | 1811- | GVR | (D) DIN12X2 & PT3/8 DOUBLE ELBOW | ||

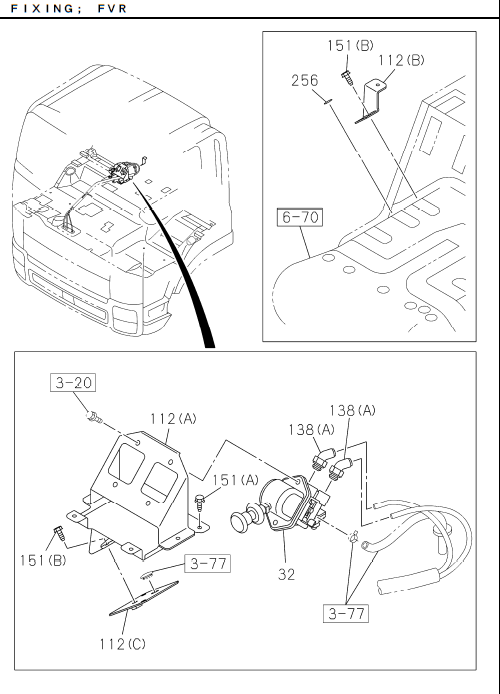

| 112 | I8-98314 604-1 | BRACKET; CONT VLV | 1 | 1707- | FVR | (A) | ||
| 151 | I0-52000 820-0 | BOLT; VLV BRKT | 4 | 1707- | ALL | (B) M8X20 W/LK&PL WASHER | ||
| 138 | I1-09660 930-1 | CONNECTOR; DELIVERY | 1 | 1811- | GVR | (B) | ||

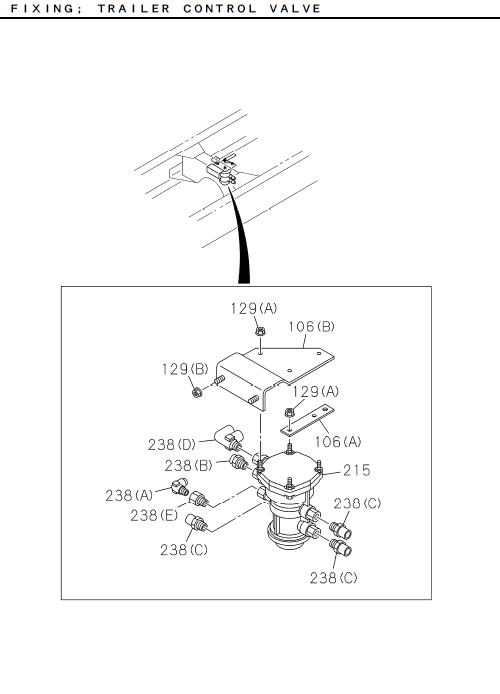

| 215 | I1-48240 045-1 | VALVE; TRAILER CONT | 1 | 1811- | GVR | |||

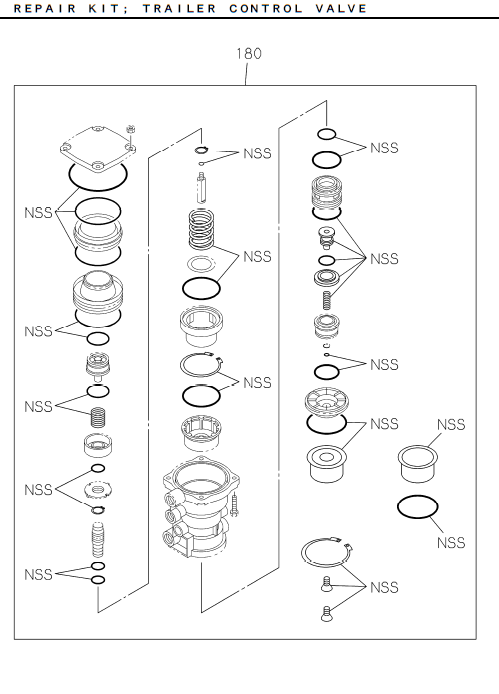

| 180 | I1-85576 449-0 | REPAIR KIT; RELAY VLV | 1 | 1811- | GVR | |||
| 138 | I1-09660 924-1 | CONNECTOR; DELIVERY | 1 | 1811- | GVR | (C) DIN8 ELBOW | ||
| 238 | I1-09664 210-0 | CONNECTOR | 1 | 1811- | GVR | (E) PT3/8X2 STRAIGHT | ||
| 256 | I1-76798 029-0 | SEAL | 6 | 1707- | ALL | OD=25 BLACK | ||
| 138 | I1-09661 520-0 | CONNECTOR; DELIVERY | 3 | 1811- | GVR | (A)DIN8 & M16 ELBOW | ||
| 151 | I0-52000 616-0 | BOLT; VLV BRKT | 2 | 1707- | ALL | (A) M6X16 | ||
| 106 | I8-98483 762-0 | BRACKET; VLV | 1 | 1811- | GVR | (B) | ||
| 112 | I8-98314 607-1 | BRACKET; CONT VLV | 1 | 1707- | ALL | (C) | ||
| 032 | I1-48100 651-0 | VALVE; BRK,HAND CONT | 1 | 1707- | ALL | LONG LEVER | ||
| 238 | I1-09660 957-0 | CONNECTOR | 1 | 1811- | GVR | (A) DIN8 & R3/8 ELBOW | ||
| 032 | I8-98299 004-0 | VALVE; BRK,HAND CONT | 1 | 1811- | GVR | SHORT LEVER | ||
| 112 | I8-97484 508-1 | BRACKET; CONT VLV | 1 | 1811- | GVR | (D) | ||
| 129 | I0-91180 108-0 | NUT; VLV | 4 | 1811- | GVR | (A) M8 | ||
| 032 | I8-98299 003-0 | VALVE; BRK,HAND CONT | 1 | 1707- | FVR | SHORT LEVER |
