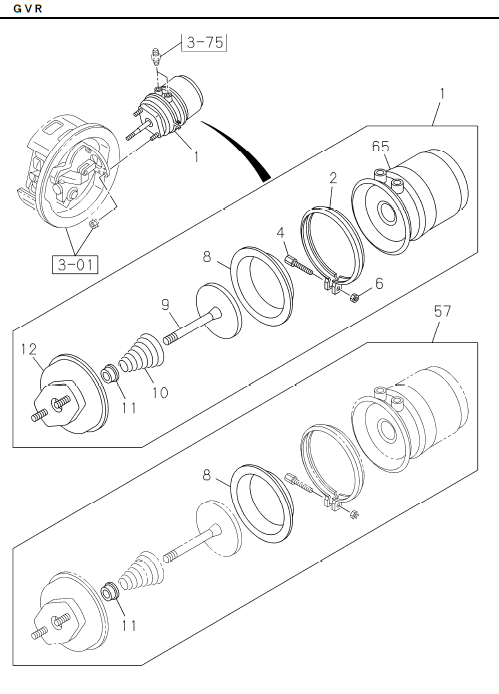

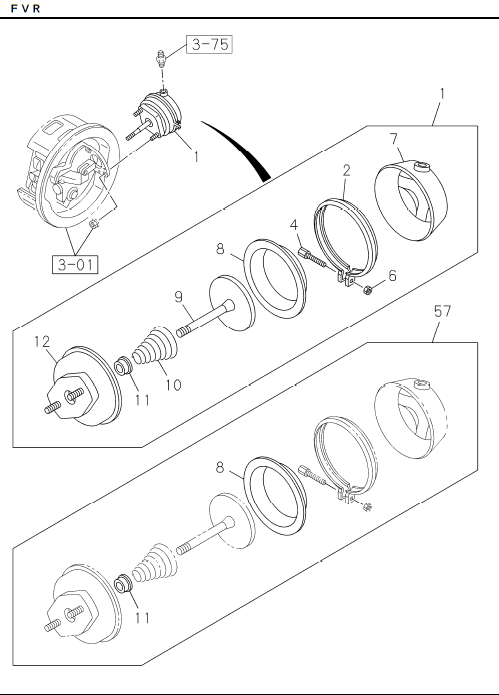

3-40 | FRONT BRAKE POWER CHAMBER
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 008 | I8-98322 153-0 | DIAPHRAGM; SPR CHAMBER | 2 | 1707- | ALL | |||
| 006 | I1-48269 147-0 | NUT; CLAMP RING | 2 | 1707- | ALL | |||
| 001 | I8-98340 110-0 | CHAMBER ASM; POWER,FRT BRK | 1 | 1707- | FVR | |||
| 007 | I8-98322 157-0 | COVER ASM; UPR,SPR CHAMBER | 2 | 1707- | FVR | |||
| 012 | I8-98322 140-0 | COVER ASM; LWR,SPR CHAMBER | 1 | 1707- | ALL | |||
| 057 | I8-98322 137-0 | REPAIR KIT; SPR CHAMBER | 2 | 1707- | ALL | |||
| 002 | I1-48269 256-0 | RING; CLAMP,SPR CHAMBER | 2 | 1707- | ALL | |||
| 010 | I8-98322 147-0 | SPRING; PISTON,SPR CHAMBER | 2 | 1707- | ALL | |||
| 004 | I1-48269 257-0 | BOLT; CLAMP RING | 2 | 1707- | ALL | |||
| 012 | I8-98322 139-0 | COVER ASM; LWR,SPR CHAMBER | 1 | 1707- | ALL | |||
| 001 | I8-98340 100-0 | CHAMBER ASM; POWER,FRT BRK | 1 | 1811- | GVR | |||
| 011 | I8-98322 146-0 | SEAL; PISTON,SPR CHAMBER | 2 | 1707- | ALL | |||
| 001 | I8-98340 099-0 | CHAMBER ASM; POWER,FRT BRK | 1 | 1811- | GVR | |||
| 009 | I8-98322 148-0 | PISTON; SPR CHAMBER | 2 | 1707- | ALL | |||
| 001 | I8-98340 111-0 | CHAMBER ASM; POWER,FRT BRK | 1 | 1707- | FVR |
