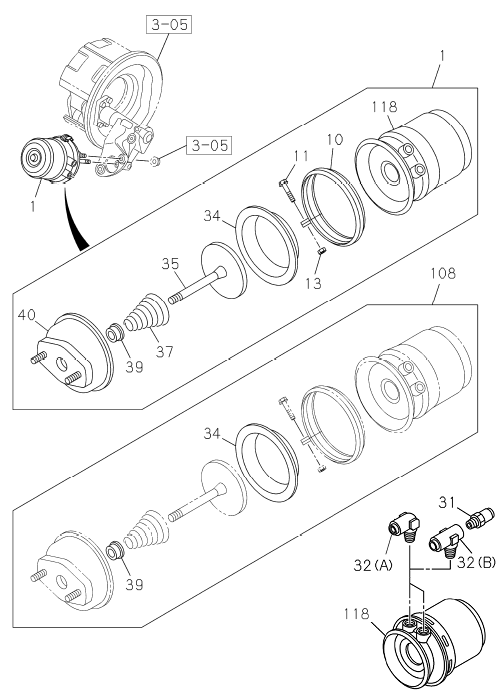

3-41 | REAR BRAKE POWER CHAMBER
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 037 | I8-98322 147-0 | SPRING; LWR,SPR CHAMBER | 2 | 1707- | ALL | |||
| 108 | I8-98322 138-0 | REPAIR KIT; SPR CHAMBER | 2 | 1707- | ALL | |||
| 013 | I1-48269 147-0 | NUT; CLAMP RING | 4 | 1707- | ALL | |||
| 032 | I1-09660 959-0 | CONNECTOR; SPR CHAMBER | 4 | 1707- | ALL | (A) DIN12 & R3/8 ELBOW | ||
| 001 | I8-98340 103-0 | CHAMBER ASM; SPRING | 1 | 1707- | ALL | |||
| 040 | I8-98322 144-0 | COVER ASM; LWR,SPR CHAMBER | 1 | 1707- | ALL | |||
| 011 | I1-48269 146-0 | BOLT; CLAMP RING | 4 | 1707- | ALL | |||
| 010 | I1-48269 150-0 | RING; CLAMP,SPR CHAMBER | 2 | 1707- | ALL | |||
| 118 | I8-98322 156-0 | CHAMBER; PIGGY BACK | 2 | 1707- | FVR | |||
| 034 | I8-98322 154-0 | DIAPHRAGM | 2 | 1707- | ALL | |||
| 035 | I8-98322 152-0 | PLATE; ROD END,SPR CHAMBER | 2 | 1707- | ALL | |||
| 001 | I8-98340 104-0 | CHAMBER ASM; SPRING | 1 | 1707- | ALL | |||
| 032 | I1-09661 776-1 | CONNECTOR; SPR CHAMBER | 4 | 1707- | GVR | (B) DIN12 & R3/8 RC1/4 3WAY | ||
| 039 | I8-98322 146-0 | COVER; ROD & PLATE | 2 | 1707- | ALL | |||
| 031 | I1-47459 013-2 | CONNECTOR | 4 | 1707- | GVR | R1/4 & M16 TEST CONNECTOR | ||
| 040 | I8-98322 145-0 | COVER ASM; LWR,SPR CHAMBER | 1 | 1707- | ALL |
