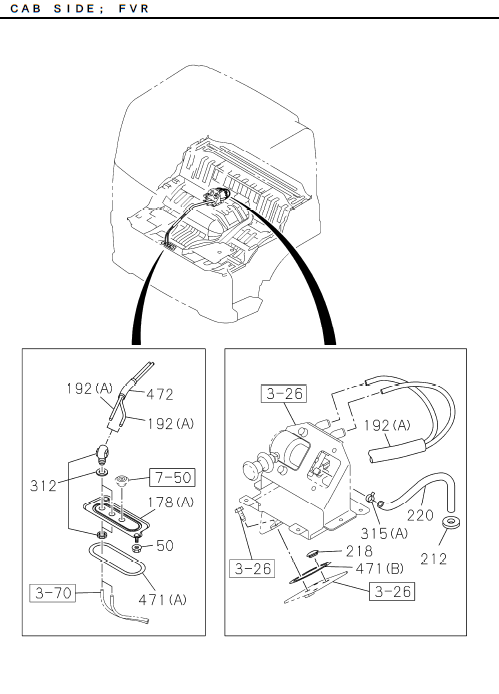

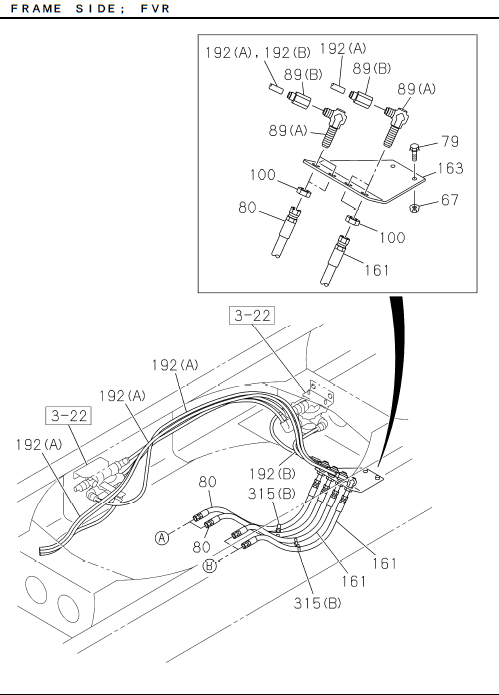

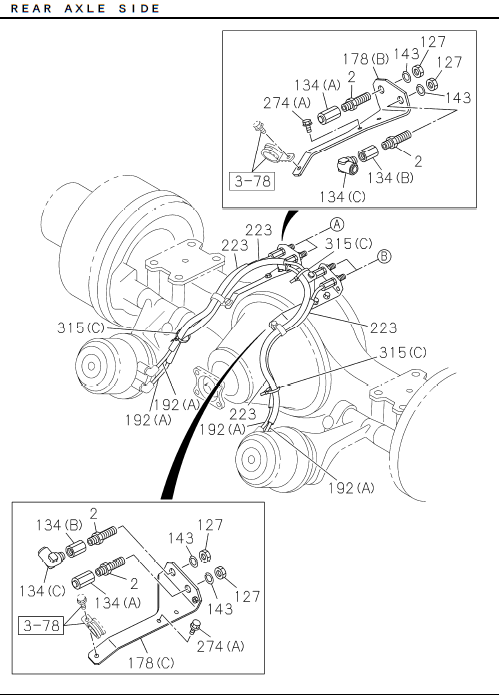

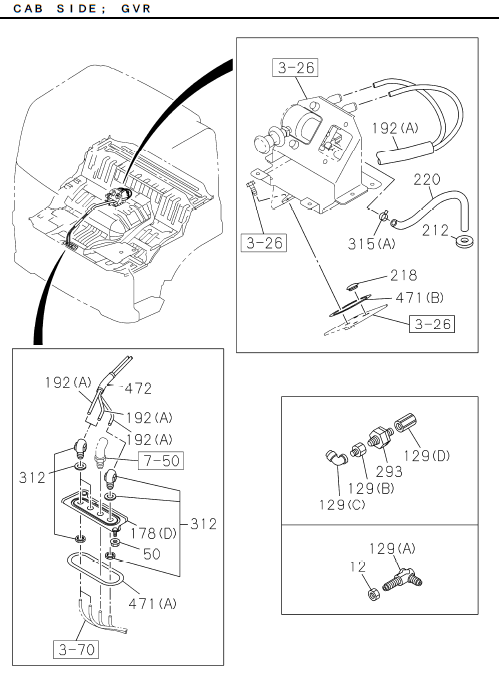

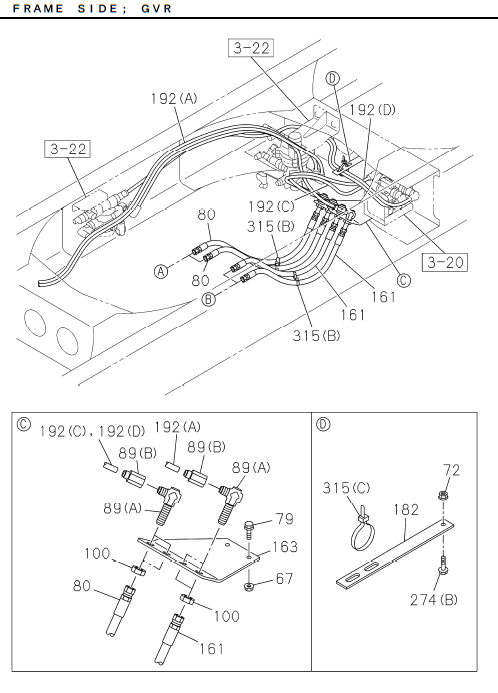

3-77 | BRAKE PIPING; AIR,REAR
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 192 | I1-87411 013-0 | TUBE; NYLON | AR | 1707- | ALL | (A) OD=12 | ||
| 163 | I8-98339 538-0 | BRACKET; FLEX HOSE | 1 | 1707- | ALL | |||
| 134 | I1-09660 959-0 | CONNECTOR | 2 | 1707- | ALL | (C) DIN12 & R3/8 ELBOW | ||
| 134 | I1-09660 876-0 | CONNECTOR | 2 | 1707- | ALL | (A) DIN12 & M16 STRAIGHT | ||
| 178 | I8-98031 034-1 | BRACKET; UNION | 1 | 1707- | ALL | (C) | ||
| 471 | I1-79738 832-0 | SEAL; BRKT | 1 | 1707- | ALL | (B) | ||
| 067 | I0-91180 108-0 | NUT; HOSE BRKT | 2 | 1707- | ALL | M8 | ||
| 274 | I0-28650 825-0 | BOLT; BRKT | 1 | 1811- | GVR | (B) M8X25 | ||
| 212 | I9-61166 007-0 | GROMMET; AIR PIPE | 1 | 1707- | ALL | OD=24 | ||
| 002 | I0-92123 310-0 | UNION; AIR PIPE | 4 | 1707- | ALL | M16 L=74 STRAIGHT | ||
| 274 | I0-28050 816-0 | BOLT; BRKT | 4 | 1707- | ALL | (A) M8X16 | ||
| 178 | I8-98319 708-0 | BRACKET; UNION | 1 | 1707- | ALL | (B) | ||
| 089 | I0-92135 210-0 | CONNECTOR; NYLON TUBE | 4 | 1707- | ALL | (A) M16 ELBOW | ||
| 192 | I1-87411 001-0 | TUBE; NYLON | AR | 1707- | ALL | (A) OD=6 | ||
| 178 | I8-98017 056-0 | BRACKET; UNION | 1 | 1811- | GVR | (D) | ||
| 223 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 1707- | ALL | ID=13 | ||
| 192 | I8-98483 734-0 | TUBE; NYLON | 1 | 1811- | GVR | (C) | ||
| 012 | I0-91111 516-0 | NUT; CONNECTOR | 1 | 1811- | GVR | M16 | ||
| 293 | I1-48410 479-1 | VALVE; CHECK | 1 | 1811- | GVR | R3/8 & M16 STRAIGHT | ||
| 223 | I1-87411 033-0 | TUBE; CORRUGATE | AR | 1707- | ALL | ID=28 | ||
| 100 | I0-91111 516-0 | NUT; UNION | 4 | 1707- | ALL | M16 | ||
| 192 | I8-98339 540-0 | TUBE; NYLON | 1 | 1707- | FVR | (B) | ||
| 089 | I1-09660 876-0 | CONNECTOR; NYLON TUBE | 4 | 1707- | ALL | (B) DIN12 & M16 STRAIGHT | ||
| 079 | I0-28650 825-0 | BOLT; HOSE BRKT | 2 | 1707- | ALL | M8X25 | ||
| 143 | I0-91510 816-0 | WASHER; LK,UNION | 4 | 1707- | ALL | ID=16.2 | ||
| 134 | I1-09660 882-0 | CONNECTOR | 2 | 1707- | ALL | (B) M16 & RC3/8 STRAIGHT | ||
| 129 | I0-92135 010-0 | CONNECTOR; NYLON TUBE | 1 | 1811- | GVR | (A) M16 ELBOW | ||
| 129 | I8-97633 768-0 | CONNECTOR; NYLON TUBE | 1 | 1811- | GVR | (B) | ||
| 220 | I1-09360 320-0 | HOSE; VINYL,EXH,PARKING BRK VLV | 1 | 1707- | ALL | L=295 | ||
| 218 | I9-09956 226-A | GROMMET; VINYL HOSE | 1 | 1707- | ALL | OD=22 | ||
| 178 | I8-98017 054-1 | BRACKET; UNION | 1 | 1707- | FVR | (A) | ||
| 161 | I1-09363 806-0 | HOSE; FLEX,QUICK RELEASE VLV | 2 | 1707- | ALL | L=540 | ||
| 182 | I1-47479 288-0 | BRACKET; TUBE CLIP | 1 | 1811- | GVR | L=215 | ||
| 072 | I0-91180 108-0 | NUT; BRKT | 1 | 1811- | GVR | M8 | ||
| 192 | I1-87411 011-0 | TUBE; NYLON | AR | 1707- | ALL | (A) OD=12 | ||
| 192 | I1-87411 012-0 | TUBE; NYLON | AR | 1707- | ALL | (A) OD=12 | ||
| 127 | I0-91111 516-0 | NUT; UNION | 4 | 1707- | ALL | M16 | ||
| 129 | I8-97633 756-0 | CONNECTOR; NYLON TUBE | 1 | 1811- | GVR | (C) | ||
| 315 | I1-09704 102-0 | CLIP | 1 | 1707- | ALL | (A) ID=14 | ||
| 472 | I8-98067 708-0 | TUBE; SPUTTER | 1 | 1707- | ALL | |||
| 050 | I0-91180 108-0 | NUT; UNION BRKT | 2 | 1707- | ALL | M8 | ||
| 471 | I1-79738 794-1 | SEAL; BRKT | 1 | 1707- | ALL | (A) | ||
| 315 | I8-94323 068-0 | CLIP | 2 | 1707- | ALL | (B) ID=18 & 18 | ||
| 192 | I1-87411 006-0 | TUBE; NYLON | AR | 1707- | ALL | (A) OD=8 | ||
| 315 | I1-09707 183-0 | CLIP | 3 | 1707- | ALL | (C) L=350 | ||
| 192 | I8-98483 735-0 | TUBE; NYLON | 1 | 1811- | GVR | (D) | ||
| 129 | I1-09660 882-0 | CONNECTOR; NYLON TUBE | 1 | 1811- | GVR | (D) M16 & RC3/8 STRAIGHT | ||
| 312 | I8-97611 963-1 | CONNECTOR; SUPPLY | 3 | 1811- | GVR | DIN8X2 ELBOW | ||
| 080 | I1-09363 746-0 | HOSE; FLEX,POWER CHAMBER | 2 | 1707- | ALL | L=600 |
