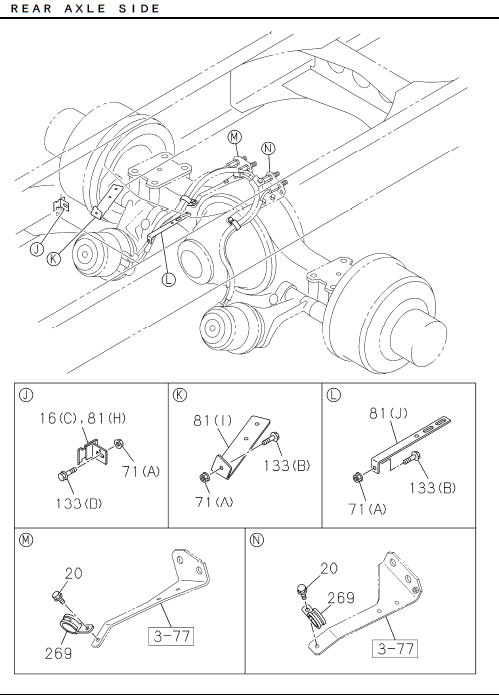

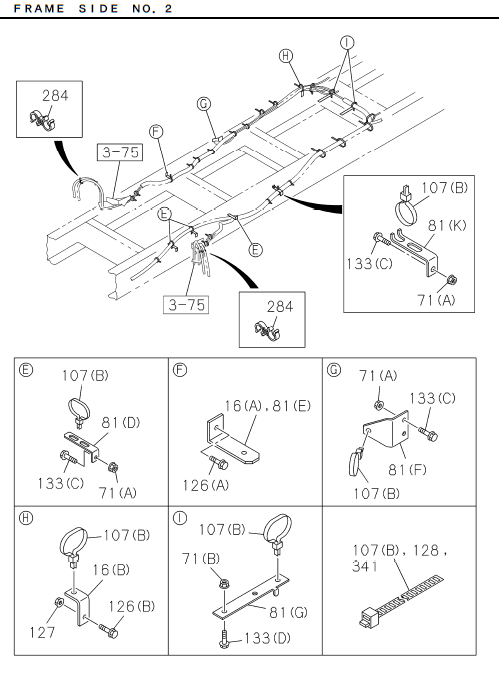

3-78 | FIXING PARTS; AIR PIPING
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 269 | I1-09700 945-0 | CLIP; BAND,NYLON TUBE | 2 | 1707- | ALL | ID=35 L=33 | ||
| 133 | I0-28650 830-0 | BOLT; BRKT | 8 | 1707- | ALL | (C) M8X30 | ||
| 016 | I1-47477 755-1 | BRACKET; PIPE CLIP | 2 | 1707- | ALL | (A) | ||
| 107 | I1-09700 329-1 | CLIP; NYLON TUBE | 1 | 1707- | ALL | (A) ID=31 L=35 | ||
| 284 | I8-94323 068-0 | CLIP; FLEX HOSE | 4 | 1811- | GVR | ID=18 & 18 | ||
| 081 | I8-98325 460-0 | BRACKET; CLIP | 1 | 1707- | ALL | (B) | ||
| 020 | I0-28050 820-0 | BOLT; CLIP | 2 | 1707- | ALL | M8X20 | ||
| 081 | I8-98119 184-1 | BRACKET; CLIP | 1 | 1707- | ALL | (H) | ||
| 127 | I0-91180 108-0 | NUT; CLIP BRKT | 1 | 1707- | ALL | M8 | ||
| 071 | I0-91180 112-0 | NUT; BRKT | 2 | 1707- | ALL | (B) M12 | ||
| 081 | I8-98311 209-0 | BRACKET; CLIP | 1 | 1707- | ALL | (I) | ||
| 107 | I1-09707 183-0 | CLIP; NYLON TUBE | AR | 1707- | ALL | (B) L=350 | ||
| 379 | I8-98044 013-0 | BRACKET; NYLON TUBE | 1 | 1707- | ALL | |||
| 081 | I1-47477 716-1 | BRACKET; CLIP | 3 | 1707- | ALL | (D) | ||
| 081 | I8-98325 114-0 | BRACKET; CLIP | 1 | 1707- | ALL | (A) | ||
| 081 | I1-47477 755-1 | BRACKET; CLIP | 1 | 1707- | ALL | (C) | ||
| 128 | I1-09707 183-0 | CLIP; NYLON TUBE | 1 | 1707- | ALL | L=350 | ||
| 081 | I8-98343 342-0 | BRACKET; CLIP | 2 | 1707- | ALL | (K) | ||
| 081 | I1-47476 699-2 | BRACKET; CLIP | 1 | 1707- | ALL | (F) | ||
| 133 | I0-28051 235-0 | BOLT; BRKT | 2 | 1707- | ALL | (D) M12X35 | ||
| 108 | I0-28650 820-0 | BOLT; TUBE CLIP | 1 | 1707- | ALL | M8X20 | ||
| 126 | I0-28650 830-0 | BOLT; CLIP BRKT | 1 | 1707- | ALL | (A) M8X30 | ||
| 081 | I8-98371 136-0 | BRACKET; CLIP | 2 | 1707- | ALL | (G) | ||
| 388 | I1-72498 022-1 | SEAL | 3 | 1707- | ALL | 100X40 | ||
| 133 | I0-28650 820-0 | BOLT; BRKT | 1 | 1707- | ALL | (A) M8X20 | ||
| 126 | I0-28650 825-0 | BOLT; CLIP BRKT | 1 | 1707- | ALL | (B) M8X25 | ||
| 341 | I1-09707 183-0 | CLIP; HARNESS | 9 | 1811- | GVR | L=350 | ||
| 016 | I8-98119 184-1 | BRACKET; PIPE CLIP | 1 | 1707- | ALL | (C) | ||
| 081 | I1-47477 646-3 | BRACKET; CLIP | 1 | 1707- | ALL | (J) | ||
| 081 | I1-47477 716-1 | BRACKET; CLIP | 1 | 1707- | ALL | (E) | ||
| 016 | I1-47479 080-0 | BRACKET; PIPE CLIP | 1 | 1707- | ALL | (B) | ||
| 133 | I0-28650 825-0 | BOLT; BRKT | 3 | 1707- | ALL | (B) M8X25 | ||
| 034 | I0-91180 106-0 | NUT; BRKT | 2 | 1707- | ALL | M6 | ||
| 071 | I0-91180 108-0 | NUT; BRKT | 8 | 1707- | ALL | (A) M8 |
