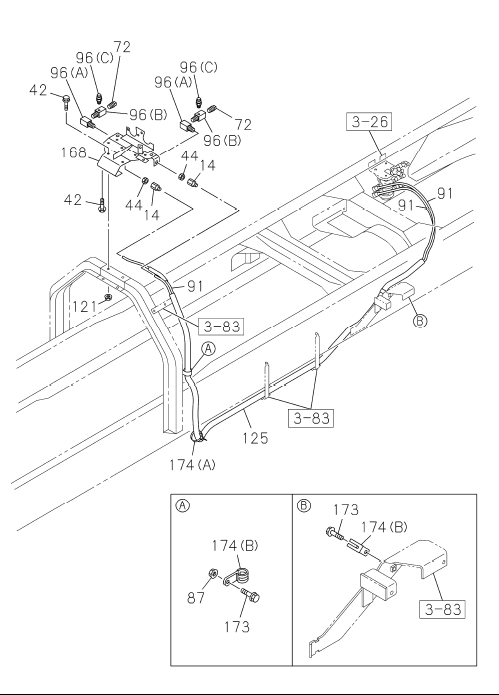

3-80 | BRAKE PIPING; TRAILER
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 087 | I0-91180 108-0 | NUT | 1 | 1811- | GVR | M8 | ||
| 174 | I1-09707 183-0 | CLIP | 9 | 1811- | GVR | (A) L=350 | ||
| 014 | I1-09660 877-0 | CONNECTOR; AIR PIPE | 2 | 1811- | GVR | DIN12 & M20 STRAIGHT | ||
| 044 | I0-91111 520-0 | NUT; FLEX HOSE | 2 | 1811- | GVR | M20 | ||
| 125 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 1811- | GVR | ID=13 | ||
| 121 | I0-91110 510-0 | NUT; BRKT | 2 | 1811- | GVR | M10 | ||
| 091 | I1-87411 012-0 | TUBE; NYLON | AR | 1811- | GVR | OD=12 | ||
| 174 | I5-09700 293-1 | CLIP | 2 | 1811- | GVR | (B) ID=29 L=35 | ||
| 091 | I1-87411 006-0 | TUBE; NYLON | AR | 1811- | GVR | OD=8 | ||
| 072 | I9-09663 001-0 | PLUG | 2 | 1811- | GVR | PT1/2 | ||
| 125 | I1-87411 032-0 | TUBE; CORRUGATE | AR | 1811- | GVR | ID=25 | ||
| 173 | I0-28650 820-0 | BOLT | 2 | 1811- | GVR | M8X20 | ||
| 168 | I8-98481 116-0 | BRACKET; UNION | 1 | 1811- | GVR | |||
| 096 | I1-09664 041-1 | CONNECTOR; FLEX HOSE | 2 | 1811- | GVR | (B) PT1/2X2 & PT1/4 3WAY | ||
| 042 | I0-28651 025-0 | BOLT; BRKT | 4 | 1811- | GVR | M10X25 | ||
| 096 | I1-09650 003-1 | CONNECTOR; FLEX HOSE | 2 | 1811- | GVR | (A) M20 & PT1/2 STRAIGHT | ||
| 096 | I1-47459 013-0 | CONNECTOR; FLEX HOSE | 2 | 1811- | GVR | (C) R1/4 & M16 TEST CONNECTOR | ||
| 091 | I1-87411 011-0 | TUBE; NYLON | AR | 1811- | GVR | OD=12 |
